CL010CN017 Series

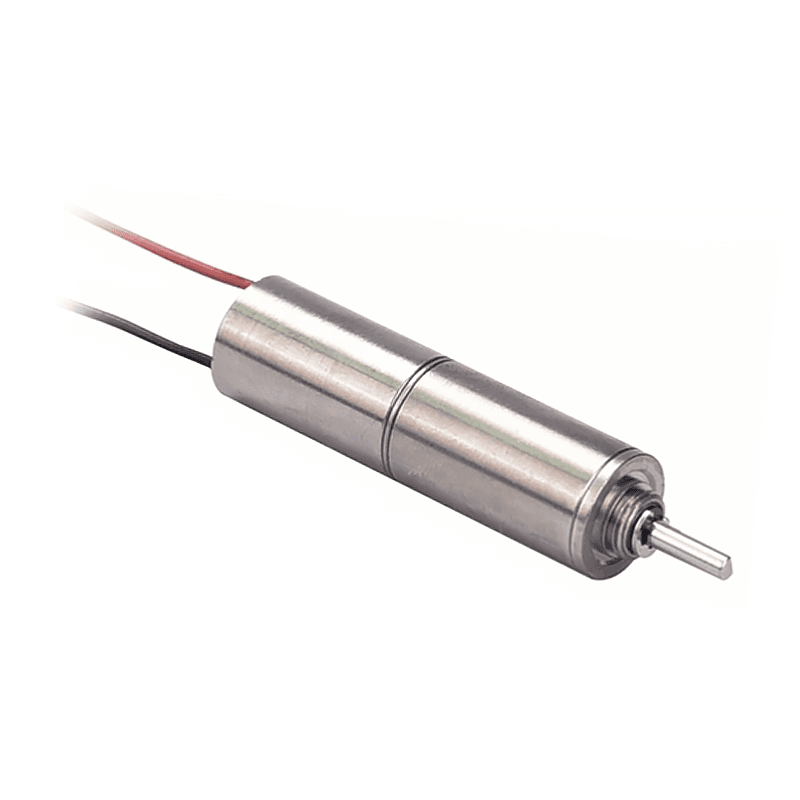

CL010CN017-06-G256
Coreless Brushed DC motor

Featured product media

Quick Facts

CL010CN017-06-G256 Coreless DC Motors

Specifications:
  • 0.390 in Frame Size
  • 0.189 A Rated Current
  • 14.6002 oz-in Rated Torque
  • 6 VDC Nominal Voltage
  • 1.400 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor + Gearhead
Weight0.038 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage6 VDC
No Load Speed 54 RPM
No Load Current54.4 mA
Nominal Speed21 RPM
Nominal Torque (Max Cont. Torque)14.6002 oz-in
Nominal Current (Max Cont. Current)0.189 A
Rated Speed21 RPM
Rated Torque14.6002 oz-in
Rated Current0.189 A
Stall Current0.3 A
Max. Efficiency66%

Motor Characteristics

Terminal Resistance19.8 ohm
Terminal Inductance0.197 mH
Speed/Torque Gradient 1677.2517 RPM/oz-in
Speed Constant2390 RPM/V
Mechanical Time Constant7.57 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Axial play0.008 in
Radial play0.003
Max Speed (Mechanical)15000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 149.00 °F
Max winding temperature212.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)130.10 °F/W
Thermal resistance (Winding-Housing)74.12 °F/W
Thermal time constant motor108 s
Thermal time constant winding2.53 s

Gearhead Specifications

Number Of Stages4

Dimensions

ModelDIM. A (length) in MAX
CL010CN017-06-G2561.400 in

Performance Curve

Downloads

CL010CN017-06-G256 Configured Datasheet (PDF)
