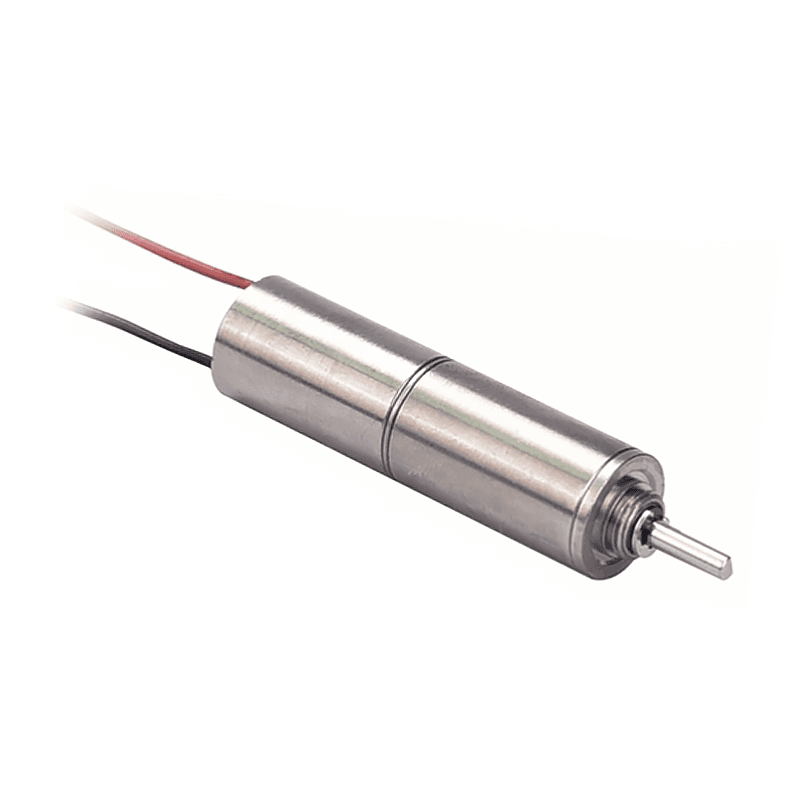

CL010CN025 SeriesCoreless Brushed DC motor
Specifications:
- 0.390 in Frame Size
- 0.122 to 0.218 A Rated Current
- 2.7473 to 21.2418 oz-in Rated Torque
- 6 to 12 VDC Nominal Voltage
- 1.48 to 1.97 in Length
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CL010CN025-06-G256 | 0.390 in | 1.700 in | 6 VDC | 33 RPM | 21.2418 oz-in | 46 RPM | 47.1 mA | 256:1 | 0.045 lbs | 0.218 A | Quote |
| CL010CN025-12-G16 | 0.390 in | 1.480 in | 12 VDC | 409 RPM | 2.7473 oz-in | 822 RPM | 24.3 mA | 16:1 | 0.037 lbs | 0.188 A | Quote |
| CL010CN025-12-G256-RS10-12 | 0.390 in | 1.970 in | 12 VDC | 35 RPM | 21.2418 oz-in | 51 RPM | 24.3 mA | 256:1 | 0.054 lbs | 0.122 A | Quote |
| CL010CN025-12-G64 | 0.390 in | 1.590 in | 12 VDC | 102 RPM | 9.7854 oz-in | 206 RPM | 24.3 mA | 64:1 | 0.042 lbs | 0.188 A | Quote |
| CL010CN025-12-G64-RS10-12 | 0.390 in | 1.850 in | 12 VDC | 102 RPM | 9.7854 oz-in | 206 RPM | 24.3 mA | 64:1 | 0.051 lbs | 0.188 A | Quote |
Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| CL010CN025-06-G256 | 1.700 in |
| CL010CN025-12-G16 | 1.480 in |
| CL010CN025-12-G256-RS10-12 | 1.970 in |
| CL010CN025-12-G64 | 1.590 in |
| CL010CN025-12-G64-RS10-12 | 1.850 in |
