CL013CN020 Series

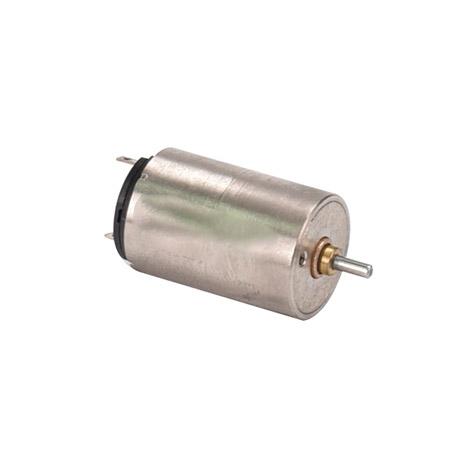

CL013CN020-12
Coreless Brushed DC motor

Name: CL013CN020-12
Brand: Lin Engineering
SKU: CL013CN020-12
Price: 90 USD
Availability: PreOrder

Quick Facts

CL013CN020-12 Coreless DC Motors

Specifications:

0.510 in Frame Size
0.22 A Rated Current
0.2591 oz-in Rated Torque
12 VDC Nominal Voltage
0.780 in Length

Specifications

Motor Specifications

Frame Size	0.510 in
Motor Type	Motor Only (No Gearbox)
Weight	0.031 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	12 VDC
No Load Speed	12900 RPM
No Load Current	12 mA
Nominal Speed	8630 RPM
Nominal Torque (Max Cont. Torque)	0.2591 oz-in
Nominal Current (Max Cont. Current)	0.22 A
Rated Speed	8630 RPM
Rated Torque	0.2591 oz-in
Rated Current	0.22 A
Stall Current	0.65 A
Max. Efficiency	78%

Motor Characteristics

Terminal Resistance	18.6 ohm
Terminal Inductance	0.402 mH
Speed/Torque Gradient	329.531 RPM/oz-in
Speed Constant	1090 RPM/V
Mechanical Time Constant	7.77 ms
Rotor Inertia	0.002 oz-in²

Motor Mechanical Data

Axial play	0.012 in
Max Speed (Mechanical)	13000 RPM

Motor Thermal Data

Ambient Temperature	-4 °F to 149.00 °F
Max winding temperature	212.00 °F
Max winding temperature	212.00 °F
Thermal resistance (Housing-Ambient)	123.08 °F/W
Thermal resistance (Winding-Housing)	62.24 °F/W
Thermal time constant motor	76 s
Thermal time constant winding	4.14 s

Dimensions

Model	DIM. A (length) in MAX
CL013CN020-12	0.780 in

Performance Curve

CL013CN020 Series

Downloads

CL013CN020-12 Configured Datasheet (PDF)
