CL016CN025 Series

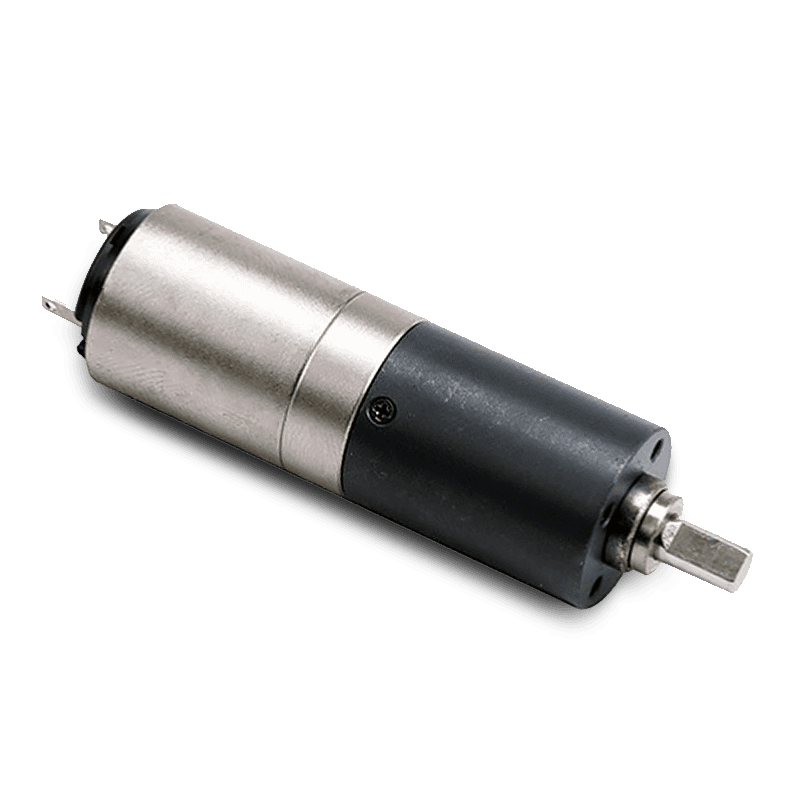

CL016CN025-12-G19
Coreless Brushed DC motor

Featured product media

Quick Facts

CL016CN025-12-G19 Coreless DC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.225 A Rated Current
  • 4.5316 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.700 in Length

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Gearhead
Weight0.095 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 558 RPM
No Load Current39.8 mA
Nominal Speed275 RPM
Nominal Torque (Max Cont. Torque)4.5316 oz-in
Nominal Current (Max Cont. Current)0.225 A
Rated Speed275 RPM
Rated Torque4.5316 oz-in
Rated Current0.225 A
Stall Current0.44 A
Max. Efficiency81%

Motor Characteristics

Terminal Resistance27.5 ohm
Terminal Inductance0.144 mH
Speed/Torque Gradient 330.3806 RPM/oz-in
Speed Constant900 RPM/V
Mechanical Time Constant6.06 ms
Rotor Inertia0.001 oz-in²

Motor Mechanical Data

Axial play0.010 in
Radial play0.004
Max Speed (Mechanical)13000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 149.00 °F
Max winding temperature212.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)105.08 °F/W
Thermal resistance (Winding-Housing)50.90 °F/W
Thermal time constant motor281 s
Thermal time constant winding4.26 s

Gearhead Specifications

Number Of Stages2

Dimensions

ModelDIM. A (length) in MAX
CL016CN025-12-G191.700 in
