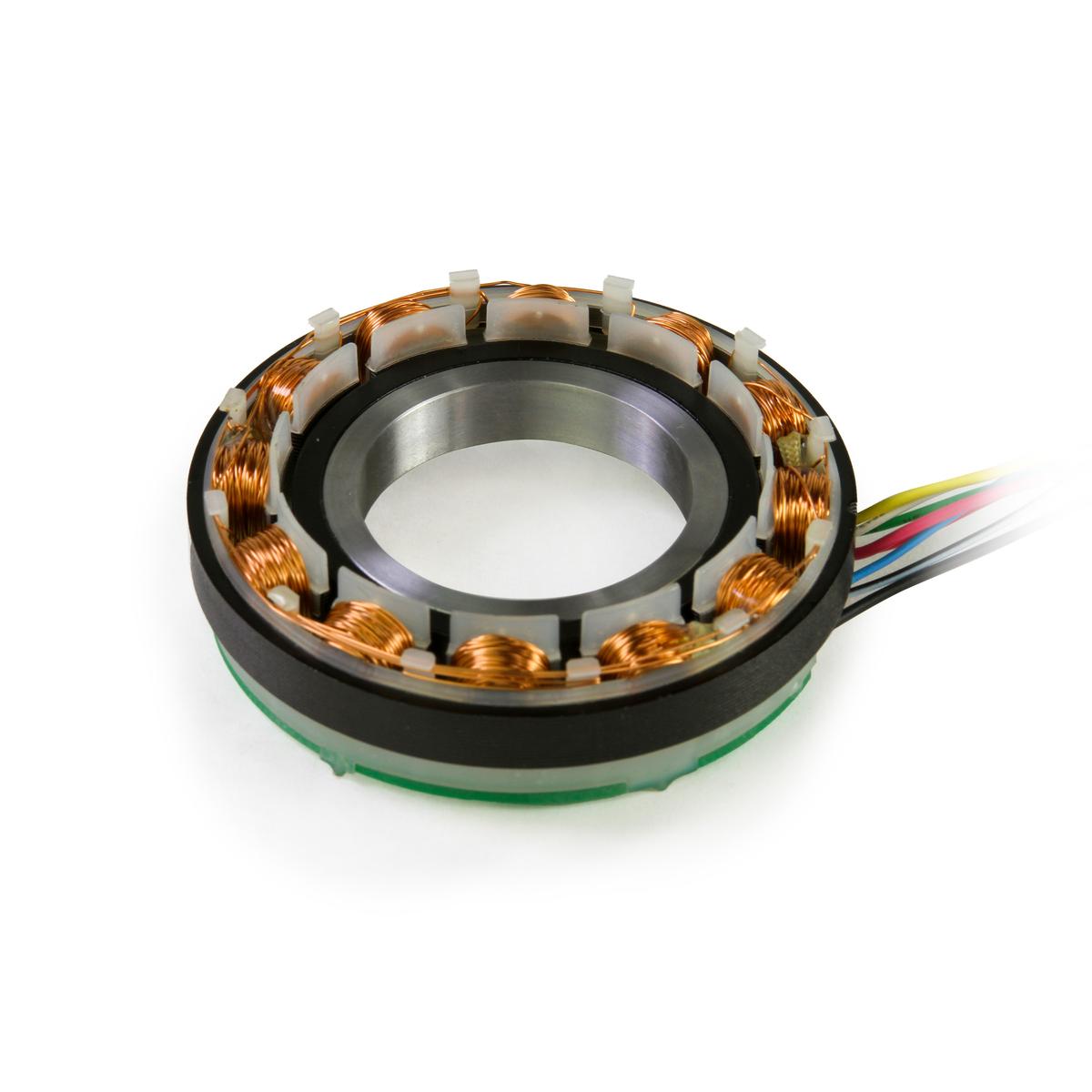

FC070 Series
70mm Frameless BLDC Motor

Features and Benefits:
  • High torque to weight ratio
  • Compact & lightweight
  • Hall sensor and thermistor available
Specifications:
  • 2.760 in Frame Size
  • 0.95 to 4.5 A Rated Current
  • 25.91 to 26.34 oz-in Rated Torque
  • 24 to 96 VDC Rated Voltage
  • 0.66 to 0.81 in Length

Models

Model #Frame sizePhaseInput VoltageRated PowerRated SpeedRated TorqueRated CurrentWeight, lbsAvailability
FC-070CH007-96A2.760 in396 VDC77.4 W4016 RPM26.06 oz-in0.95 A0.306 lbsQuote
FC-070CN007-96A2.760 in396 VDC77.4 W4016 RPM26.06 oz-in0.95 A0.306 lbsQuote
FC-070CN007-24A2.760 in324 VDC61.4 W3156 RPM26.34 oz-in4.5 A0.306 lbsQuote
FC-070CH007-24A2.760 in324 VDC61.4 W3156 RPM26.34 oz-in1.31 A0.306 lbsQuote
FC-070CH007-72A2.760 in372 VDC74.7 W3900 RPM25.91 oz-in1.31 A0.306 lbsQuote
FC-070CN007-72A2.760 in372 VDC74.7 W3900 RPM25.91 oz-in4.5 A0.306 lbsQuote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
