FC127 Series

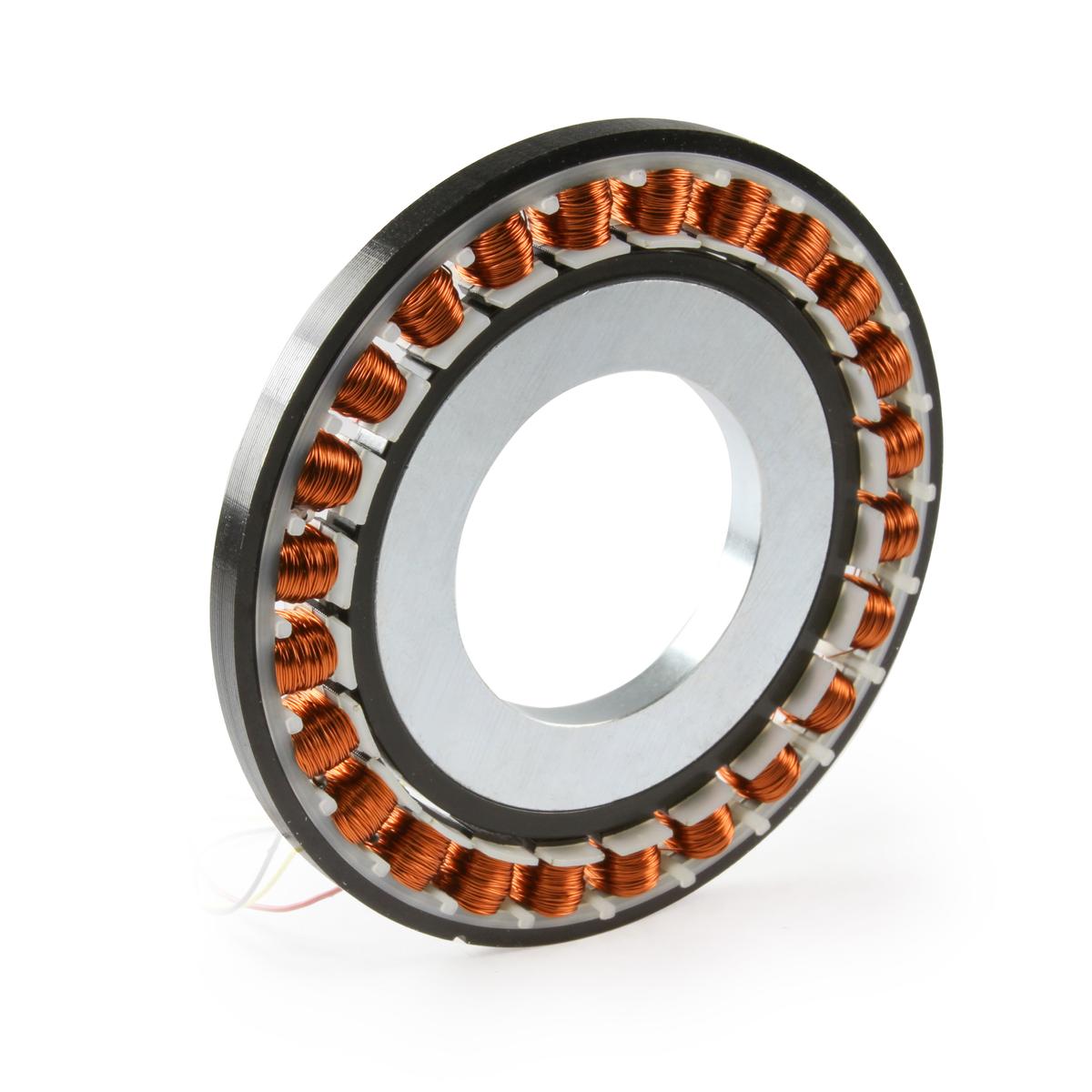

127mm Frameless BLDC Motor

Features and Benefits:
  • High torque to weight ratio
  • Compact & lightweight
  • Hall sensor and thermistor available
Specifications:
  • 5.000 in Frame Size
  • 1.39 to 5.53 A Rated Current
  • 137.36 to 141.61 oz-in Rated Torque
  • 48 to 96 VDC Rated Voltage
  • 0.28 in Length

Models

Model #Frame sizeInput VoltageRated PowerRated SpeedRated TorqueRated CurrentWeight, lbsAvailability
FC-127CN007-96A5.000 in96 VDC88.3 W845 RPM141.61 oz-in1.39 A0.752 lbsQuote
FC-127CN007-48A5.000 in48 VDC196 W1924 RPM137.36 oz-in5.53 A0.752 lbsQuote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
