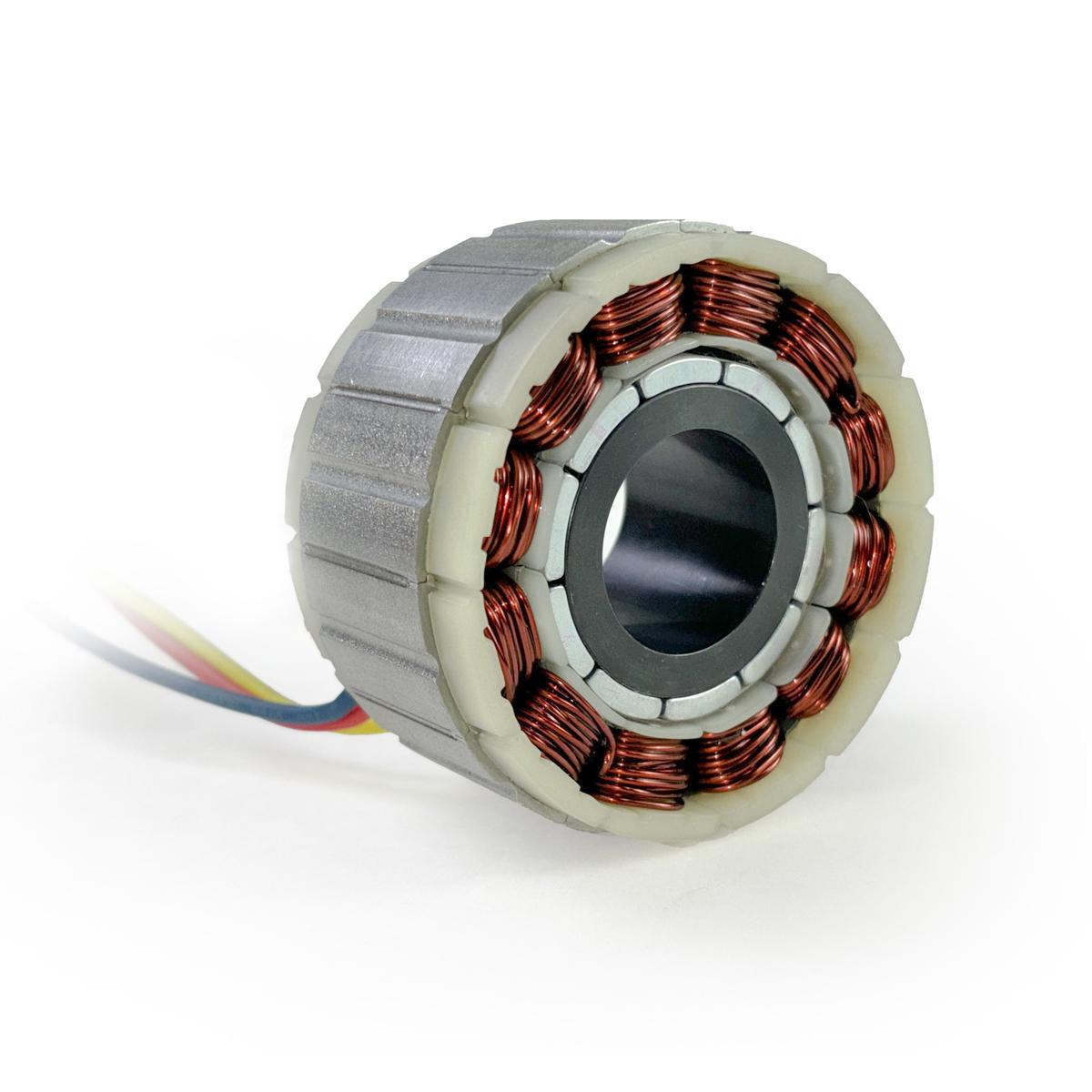

FCP077 Series
77mm Frameless BLDC Motor

Features and Benefits:
  • High torque to weight ratio
  • Compact & lightweight
  • Hall sensor and thermistor available
Specifications:
  • 3.030 in Frame Size
  • 15.7 A Rated Current
  • 294.55 oz-in Rated Torque
  • 48 VDC Rated Voltage
  • 1.1 in Length

Models

Model #Frame sizePhaseInput VoltageRated PowerRated SpeedRated TorqueRated CurrentResistanceInertia, oz-in²Weight, lbsAvailability
FCP-077CN028-48A3.030 in348 VDC666 W3054 RPM294.55 oz-in15.7 A0.320.001 oz-in²1.856 lbsQuote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
