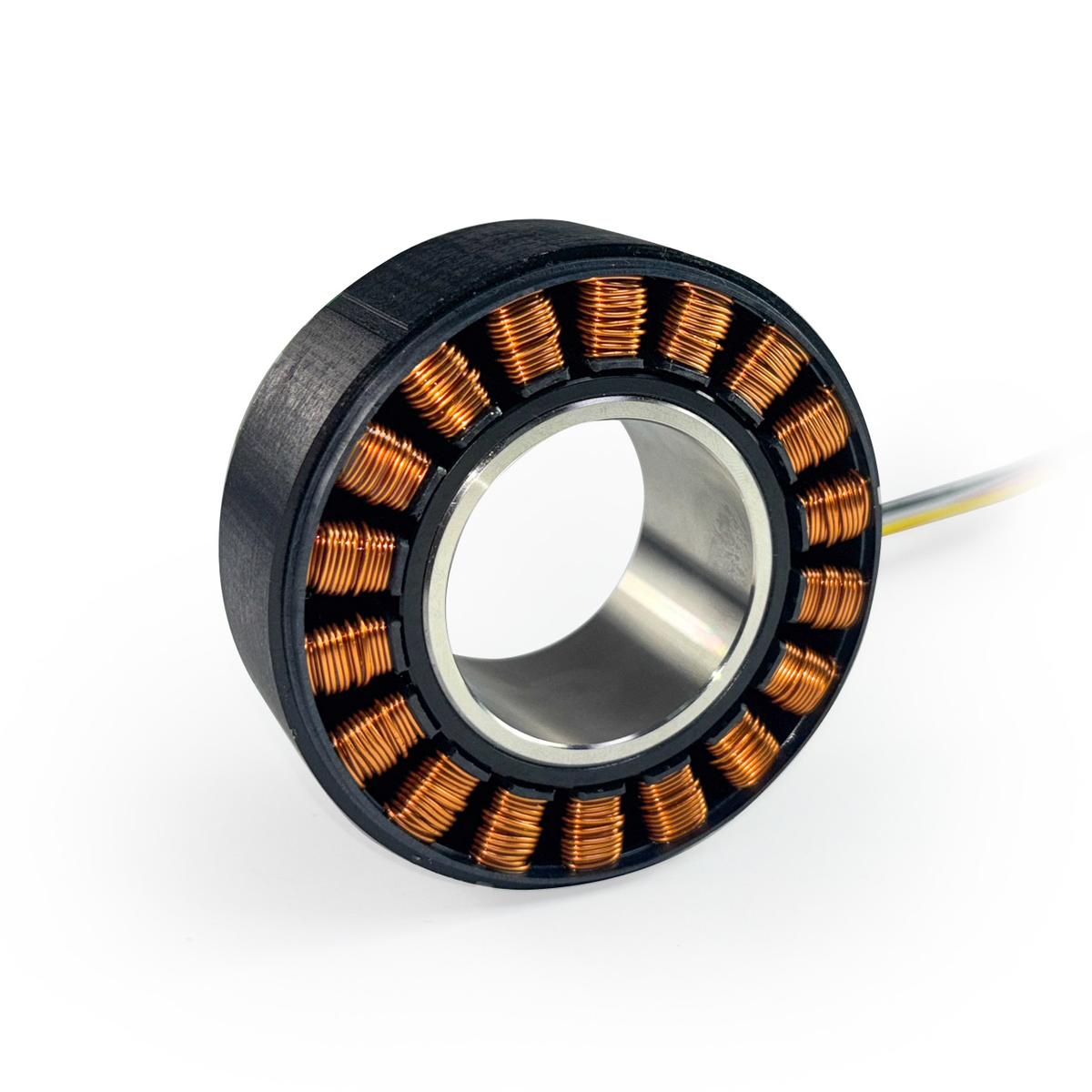

PCT060 Series
60mm Frameless BLDC Motor

Features and Benefits:
  • High torque to weight ratio
  • Compact & lightweight
  • Hall sensor and thermistor available
Specifications:
  • 2.360 in Frame Size
  • 2.96 to 4.03 A Rated Current
  • 68.12 to 148.69 oz-in Rated Torque
  • 48 VDC Rated Voltage
  • 0.32 to 1.04 in Length

Models

Model #Frame sizeInput VoltageRated PowerRated SpeedRated TorqueRated CurrentWeight, lbsAvailability
PC-T060CH008-48A2.360 in48 VDC153 W3042 RPM68.12 oz-in4.03 A0.289 lbsQuote
PC-T060CH013-48A2.360 in48 VDC137 W2003 RPM92.61 oz-in3.69 A0.406 lbsQuote
PC-T060CH026-48A2.360 in48 VDC107 W980 RPM148.69 oz-in2.96 A0.761 lbsQuote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
