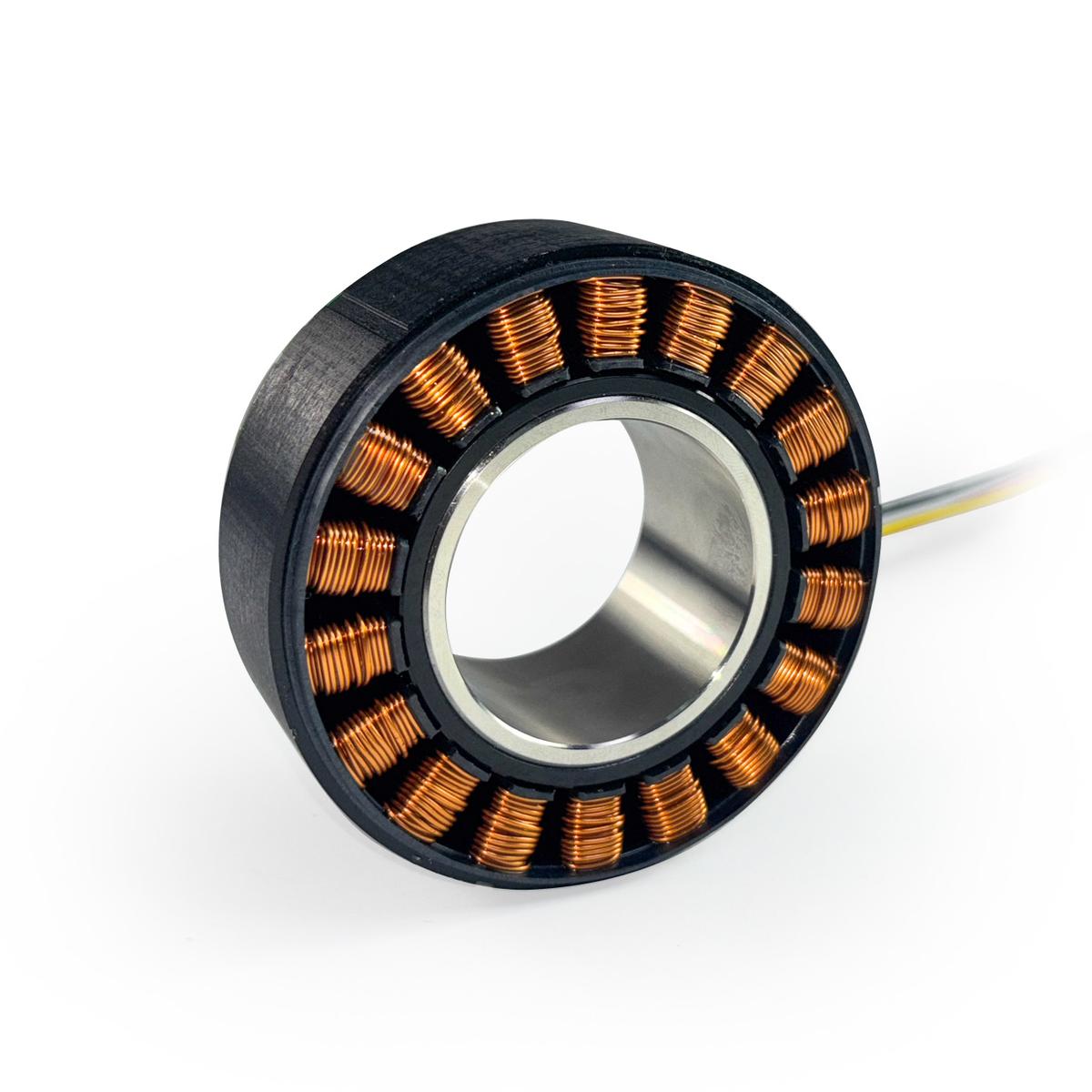

PCT076 Series
76mm Frameless BLDC Motor

Features and Benefits:
  • High torque to weight ratio
  • Compact & lightweight
  • Hall sensor and thermistor available
Specifications:
  • 2.990 in Frame Size
  • 4.23 to 5.2 A Rated Current
  • 130.99 to 303.05 oz-in Rated Torque
  • 48 VDC Rated Voltage
  • 0.32 to 1.04 in Length

Models

Model #Frame sizeInput VoltageRated PowerRated SpeedRated TorqueRated CurrentWeight, lbsAvailability
PC-T076CH008-48A2.990 in48 VDC194 W2003 RPM130.99 oz-in5.2 A0.496 lbsQuote
PC-T076CH013-48A2.990 in48 VDC185 W1352 RPM185.51 oz-in5.05 A0.686 lbsQuote
PC-T076CH026-48A2.990 in48 VDC149 W667 RPM303.05 oz-in4.23 A1.27 lbsQuote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
