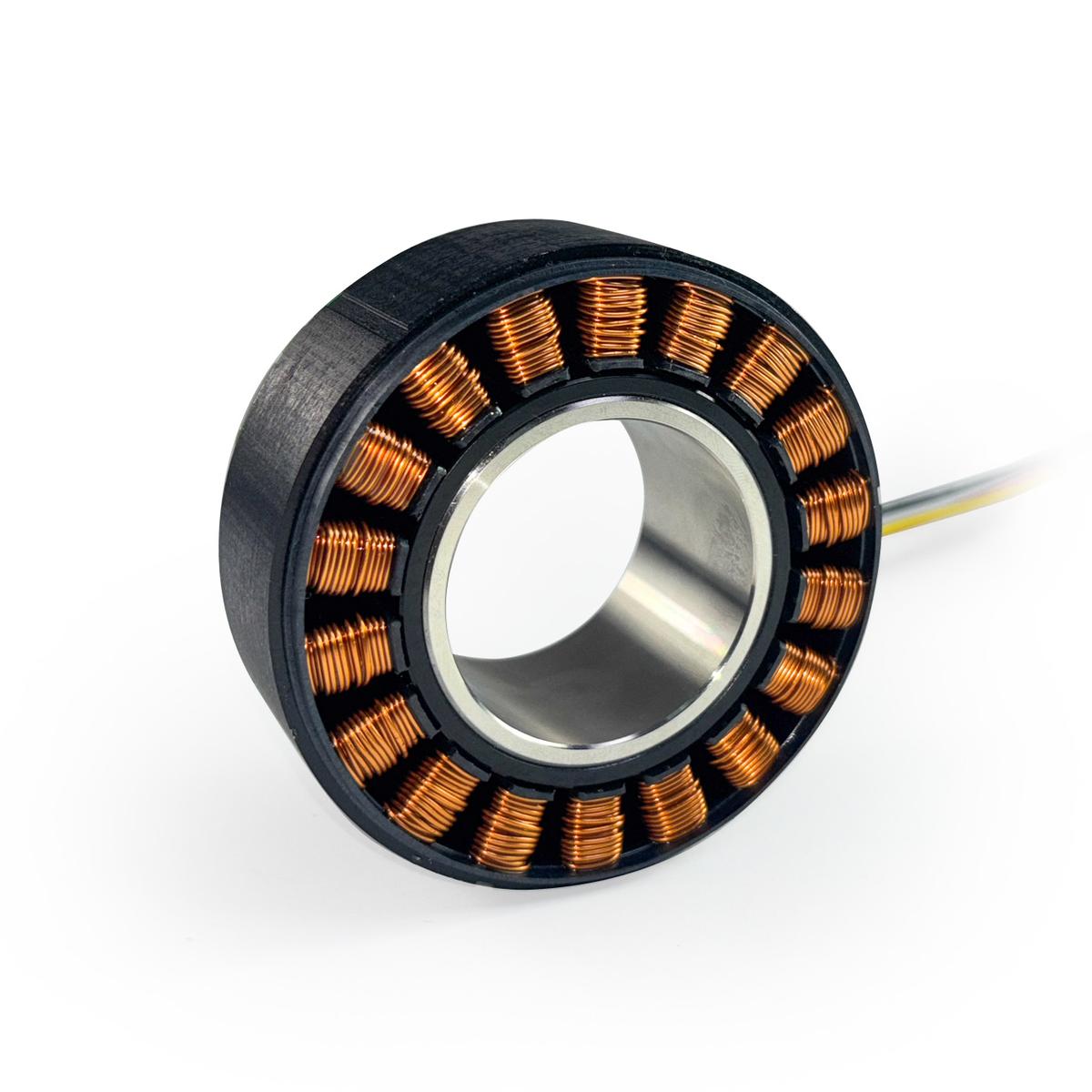

PCT085 Series
85mm Frameless BLDC Motor

Features and Benefits:
  • High torque to weight ratio
  • Compact & lightweight
  • Hall sensor and thermistor available
Specifications:
  • 3.350 in Frame Size
  • 5.15 to 6.45 A Rated Current
  • 177.01 to 422 oz-in Rated Torque
  • 48 VDC Rated Voltage
  • 0.32 to 1.04 in Length

Models

Model #Frame sizeInput VoltageRated PowerRated SpeedRated TorqueRated CurrentWeight, lbsAvailability
PC-T085CH008-48A3.350 in48 VDC243 W1850 RPM177.01 oz-in6.45 A0.65 lbsQuote
PC-T085CH013-48A3.350 in48 VDC226 W1229 RPM247.82 oz-in6.01 A0.869 lbsQuote
PC-T085CH026-48A3.350 in48 VDC193 W619 RPM422 oz-in5.15 A1.552 lbsQuote
