0 - 500 watt Series60SV04302-0200P-005
Quick Facts

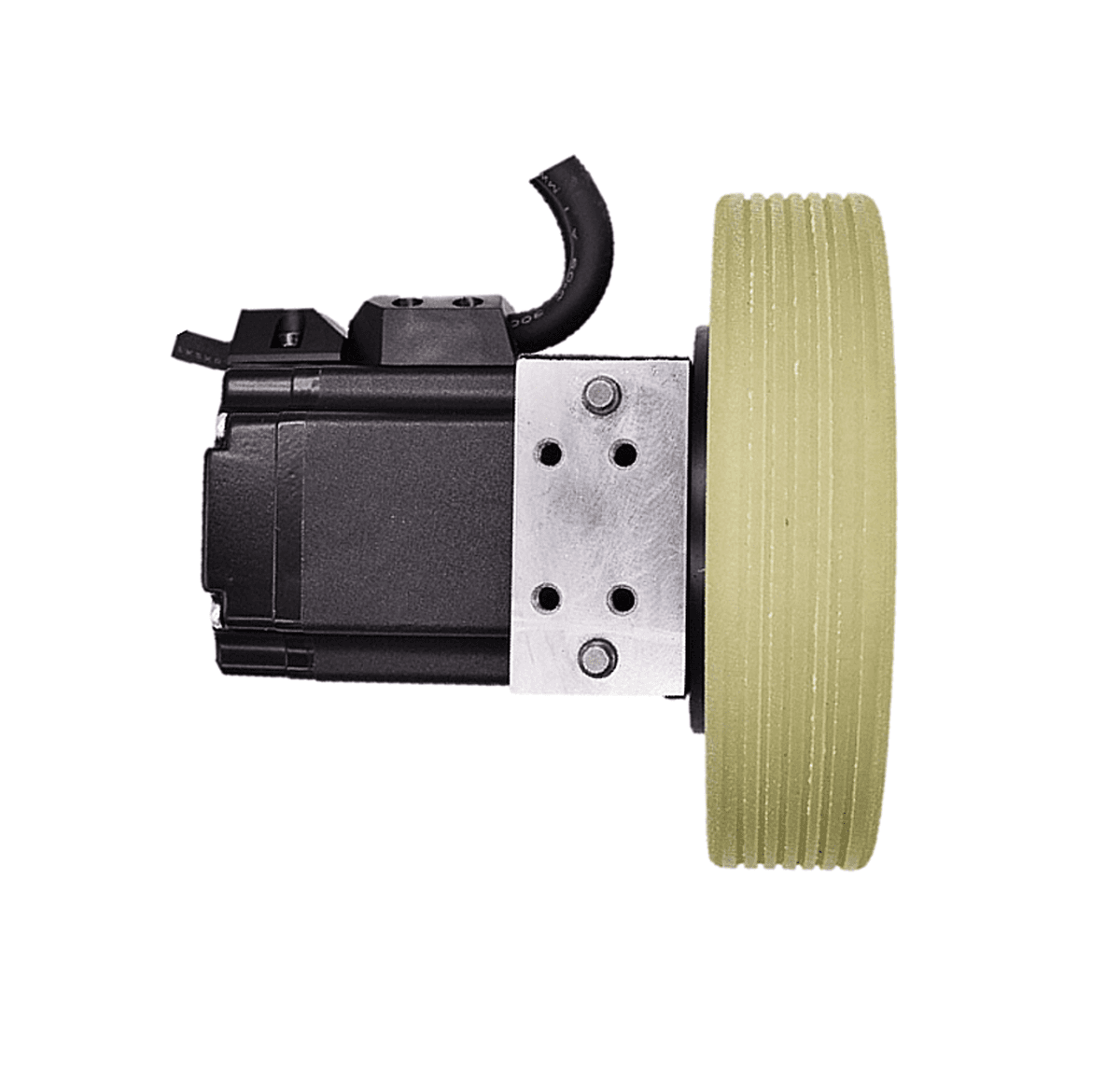

60SV04302-0200P-005 Series Motorized Traction Wheels
- 200 W Rated Power
- 6.1 A Rated Current
- 906.32 oz-in Rated Torque
- 48 VDC Rated Voltage
- 300 RPM Rated Speed
Dimensions
Motor Specifications
| Rated Voltage | 48 VDC |
| Rated Speed | 300 RPM |
| Rated Power | 200 W |
| Rated Current | 6.1 A |
| Rated Torque | 906.32 oz-in |
| Peak Torque | 1699.34 oz-in |
| Encoder | Magnetic |
Wheels Specifications
| Per traction Wheel | 2x Differential Wheels AMR | |
|---|---|---|
| Nominal Speed | 0.61 ft/s | |
| Rated feed force Accel. @ 440 lbs | 22.03 lbf | 44.06 lbf Accel: 0.3 ft/s² |
| Peak feed force Accel. @ 440 lbs | 41.588 lbf | 83.176 lbf Accel: NaN ft/s² |
Customizations & Optimizations
Lin Engineering can ensure that the AGV traction wheel is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range or optimizing for minimal power consumption, or making specific modification to ensure proper and native fit within your assembly.
Customization Services Include:
- Optimized Winding
- Customized Leads & Connectors
- Customized Housings & Mountings
- Bearings & Lubricants
- Mechatronic Solutions
- Environmental Protection
- Sensors and Accessories
- Brakes are Optional
The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.
Speak with one of our sales representatives about your specific application needs by filling out a request for a quote.
Driver
iPOS4815 XZ-CAT 11-50V 15A
