0 - 500 watt SeriesR173
Quick Facts

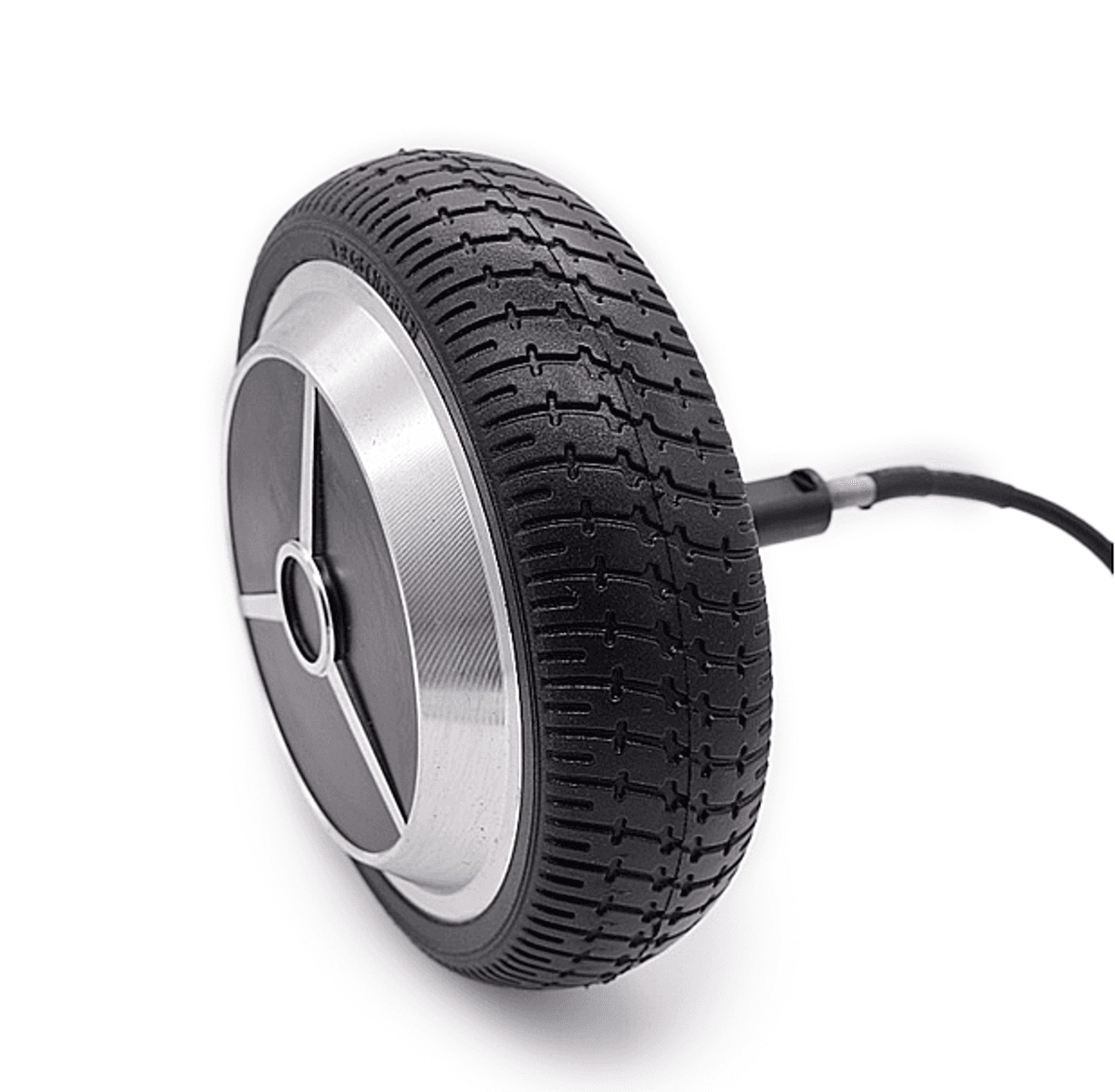

R173 Motorized Traction Wheels
- 160 W Rated Power
- 14 A Rated Current
- 1132.9 oz-in Rated Torque
- 24 VDC Rated Voltage
- 200 RPM Rated Speed

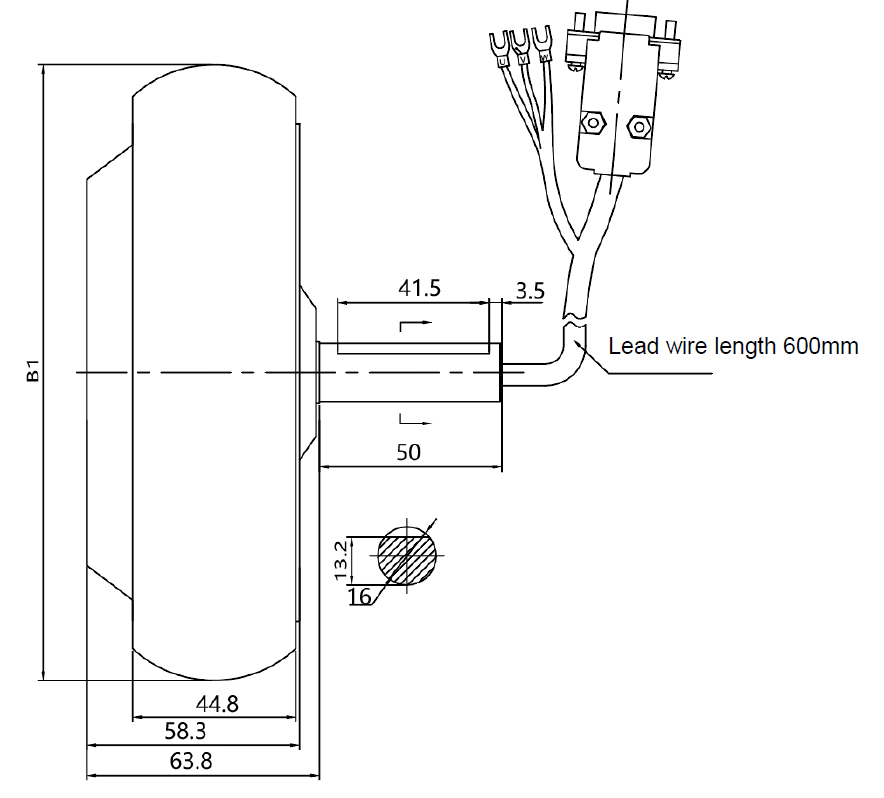

Dimensions
Motor Specifications
| Rated Voltage | 24 VDC |
| Rated Speed | 200 RPM |
| Rated Power | 160 W |
| Rated Current | 14 A |
| Rated Torque | 1132.9 oz-in |
| Peak Torque | 2124.18 oz-in |
| Encoder | Magnetic |
Wheels Specifications
| Per traction Wheel | 2x Differential Wheels AMR | |
|---|---|---|
| Nominal Speed | 0.41 ft/s | |
| Rated feed force Accel. @ 220 lbs | 3.372 lbf | 6.744 lbf Accel: 0.09 ft/s² |
| Peak feed force Accel. @ 220 lbs | 6.744 lbf | 13.488 lbf Accel: NaN ft/s² |
Customizations & Optimizations
Lin Engineering can ensure that the AGV traction wheel is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range or optimizing for minimal power consumption, or making specific modification to ensure proper and native fit within your assembly.
Customization Services Include:
- Optimized Winding
- Customized Leads & Connectors
- Customized Housings & Mountings
- Bearings & Lubricants
- Mechatronic Solutions
- Environmental Protection
- Sensors and Accessories
- Brakes are Optional
The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.
Speak with one of our sales representatives about your specific application needs by filling out a request for a quote.
Driver
iPOS8010 7/14A – 80V
