0 - 500 watt SeriesSM0602GSL-KCY-NNV-PG28
Quick Facts

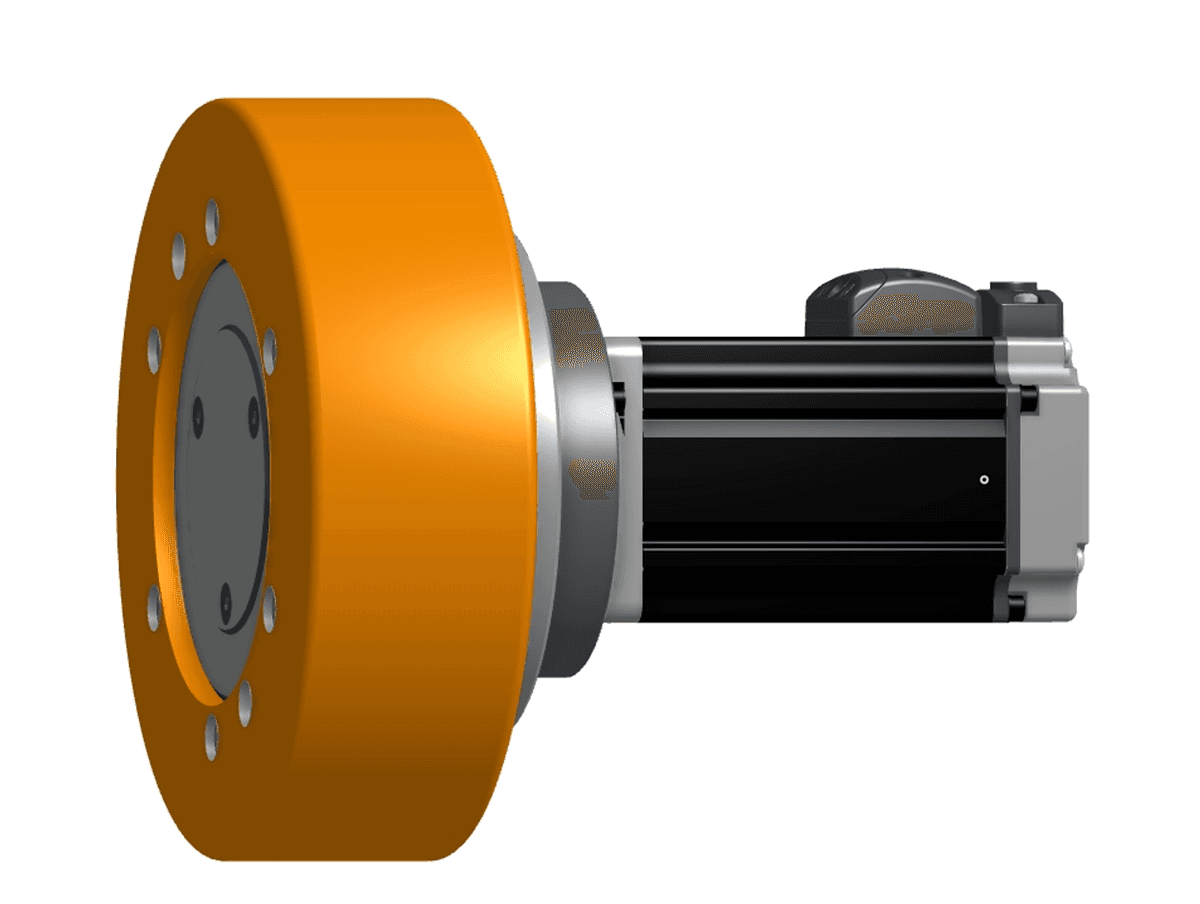

SM0602GSL-KCY-NNV-PG28 Series Motorized Traction Wheels
- 400 W Rated Power
- 11.8 A Rated Current
- 179.85 oz-in Rated Torque
- 48 VDC Rated Voltage
- 3000 RPM Rated Speed
Dimensions
Motor Specifications
| Rated Voltage | 48 VDC |
| Rated Speed | 3000 RPM |
| Rated Power | 400 W |
| Rated Current | 11.8 A |
| Rated Torque | 179.85 oz-in |
| Peak Torque | 538.13 oz-in |
| Encoder | Magnetic |
Wheels Specifications
| Per traction Wheel | 2x Differential Wheels AMR | |
|---|---|---|
| Nominal Speed | 0.61 ft/s | |
| Rated feed force Accel. @ 992 lbs | 25.627 lbf | 51.254 lbf Accel: 0.15 ft/s² |
| Peak feed force Accel. @ 992 lbs | 77.106 lbf | 154.212 lbf Accel: NaN ft/s² |
Customizations & Optimizations
Lin Engineering can ensure that the AGV traction wheel is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range or optimizing for minimal power consumption, or making specific modification to ensure proper and native fit within your assembly.
Customization Services Include:
- Optimized Winding
- Customized Leads & Connectors
- Customized Housings & Mountings
- Bearings & Lubricants
- Mechatronic Solutions
- Environmental Protection
- Sensors and Accessories
- Brakes are Optional
The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.
Speak with one of our sales representatives about your specific application needs by filling out a request for a quote.
Driver
MBDV: Dual & single Axis
