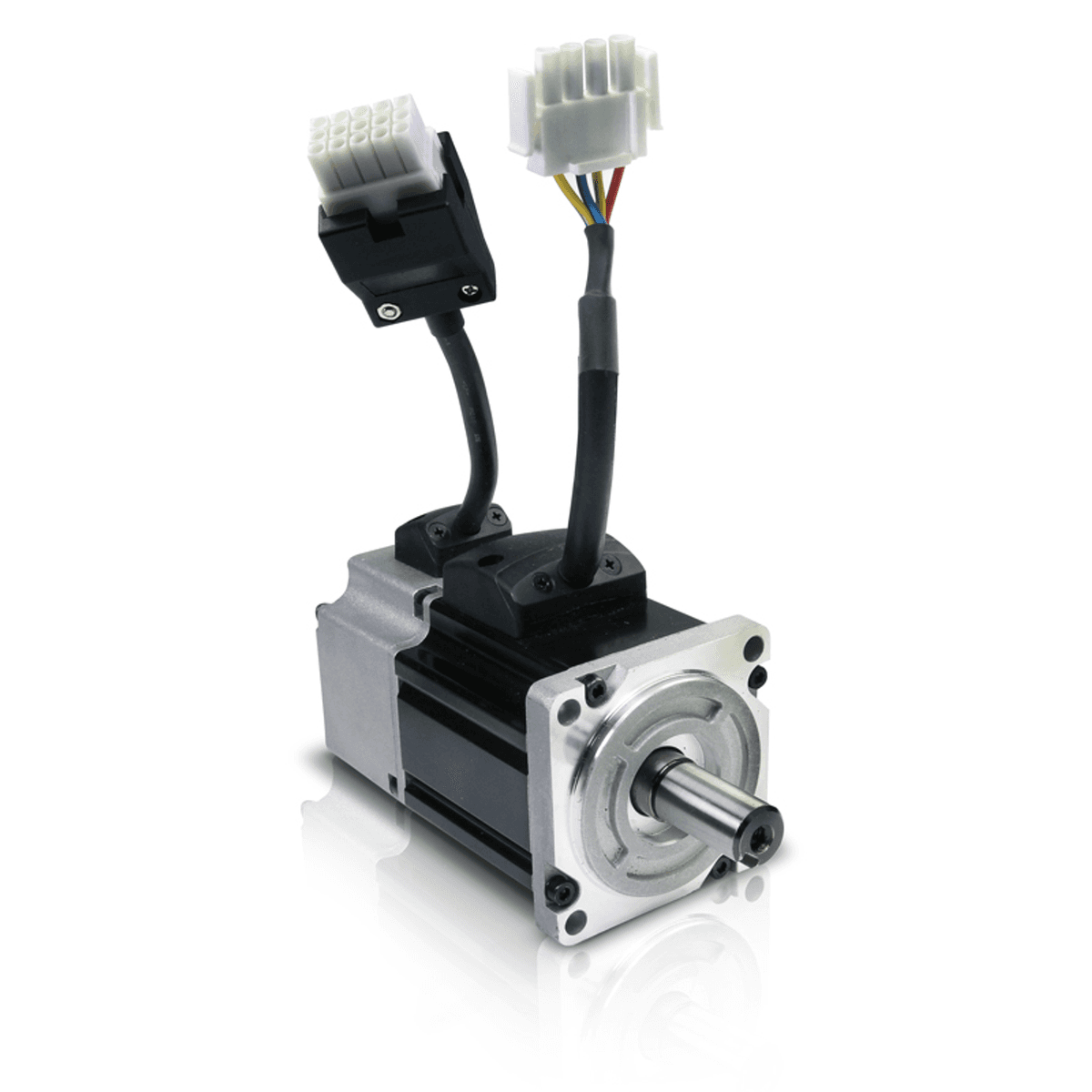

SBL60AC SeriesServo BLDC Motor
Specifications:
- 2.360 in Frame Size
- 1.5 to 2.75 A Rated Current
- 90.63 to 179.85 oz-in Rated Torque
- 220 VAC Rated Voltage
- 4.13 to 4.92 in Length
Models
| Model # | Frame size | Rated Voltage | Rated Output Power | Rated Torque | Peak Torque | Rated Current | Brake | Encoder Type | Inertia, oz-in² | Rotor Poles |
|---|---|---|---|---|---|---|---|---|---|---|
| SBL60A1-01 | 2.360 in | 220 VAC | 200 W | 90.63 oz-in | 269.06 oz-in | 1.5 A | NO | Incremental | 0.902 oz-in² | 8 |
| SBL60A2-01 | 2.360 in | 220 VAC | 400 W | 179.85 oz-in | 538.13 oz-in | 2.75 A | NO | Incremental | 1.49 oz-in² | 8 |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| SBL60A1-01 | 4.130 in |
| SBL60A2-01 | 4.920 in |
Torque Curves
- Peak Range
- Continuous Range
Speed
RPM
- Peak Range
- Continuous Range
Speed
RPM
