Configured Part Number
SBL60D2-03
Configure This Motor
No Wire Harness
Unit Price:
$478.21
Inventory:
10 Available
QTY
Looking For Higher Volume?

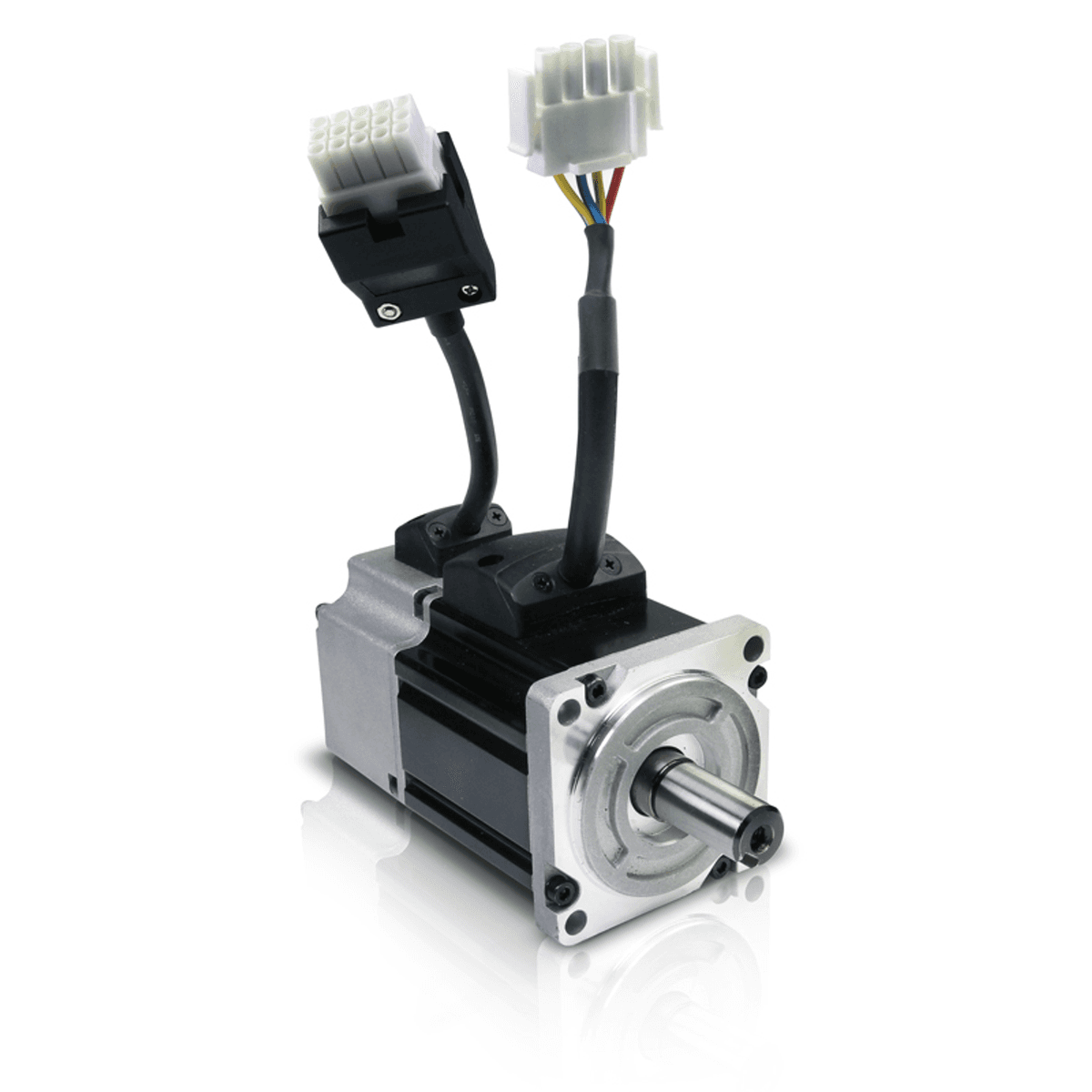

SBL60DC Series - Rapid Prototyping MotorsSBL60D2-03Servo BLDC Motor
Quick Facts
SBL60D2-03 Series Servo BLDC Motors
SBL60D2-03 Series Servo BLDC Motors
Specifications:
- 2.360 in Frame Size
- 12 A Rated Current
- 179.85 oz-in Rated Torque
- 48 VDC Rated Voltage
Motor Specifications
| Frame Size | 2.360 in |
| Rated Voltage | 48 VDC |
| Rated Output Power | 400 W |
| Rated Speed | 3000 RPM |
| Max Mechanical Speed | 6000 RPM |
| Rated Torque | 179.85 oz-in |
| Peak Torque | 481.48 oz-in |
| Rated Current | 12 A |
| Peak Current | 36 A rms |
| Voltage Constant | 6.3 V rms/ K rpm |
| Torque Constant | 14.586028789999999 oz-in/A rms |
| Winding Resistance | 0.214 Ohm |
| Winding Inductance | 0.6 mH |
| Max. Shaft Load-Radial | 53.952 lbf |
| Weight | 2.205 lbs |
| Brake | NO |
| Rotor Inertia | 1.49 oz-in² |
| Encoder Type | Incremental |
| CPR Count | 2500 Pulse/Rev |
| Motor Length | 4.920 in |
| Rotor Pole Count | 8 pole |
| Connection | MOLEX CONNECTOR |
| Insulation Class | Class B (130 C) |
| IP Rating | IP65 (Shaft Seal must be installed to achieve IP Rating) |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| SBL60D2-03 | 4.920 in |
Torque Curves
- Peak Range
- Continuous Range
Speed
RPM
SBL60DC Series
Downloads
SBL60D2-03 Configured Datasheet (PDF)
Servo Motor Catalog (PDF)
