SLU13CH026 Series
SLU13CH026-06
Slotless BLDC Motor

Featured product media

Quick Facts

SLU13CH026-06 Series Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 1.35 A Rated Current
  • 0.33 oz-in Rated Torque
  • 6 VDC Nominal Voltage
  • 0.990 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor Only
Weight0.042 lbs
Number of pole2
Number of Phases3
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage6 VDC
No Load Speed 29200 RPM
No Load Current165 mA
Nominal Speed19800 RPM
Nominal Torque (Max Cont. Torque)0.33 oz-in
Nominal Current (Max Cont. Current)1.35 A
Rated Speed19800 RPM
Rated Torque0.33 oz-in
Rated Current1.35 A
Stall Torque1.1159 oz-in
Stall Current3.97 A
Max. Efficiency63.5%

Motor Characteristics

Terminal Resistance1.51 ohm
Terminal Inductance0.021 mH
Speed/Torque Gradient 524.8138 RPM/oz-in
Speed Constant4867 RPM/V
Mechanical Time Constant7.89 ms
Rotor Inertia0.001 oz-in²

Motor Mechanical Data

Axial play0.002 in
Radial playPreloaded
Max. Radial Load0.899 lbf
Distance From Flange For Radial Load5 in
Max Force For Press Fit2.248 lbf
Max Speed (Mechanical)40000 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Insulation ClassF
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal resistance (Housing-Ambient)89.60 °F/W
Thermal resistance (Winding-Housing)38.64 °F/W
Thermal time constant motor250 s
Thermal time constant winding0.58 s

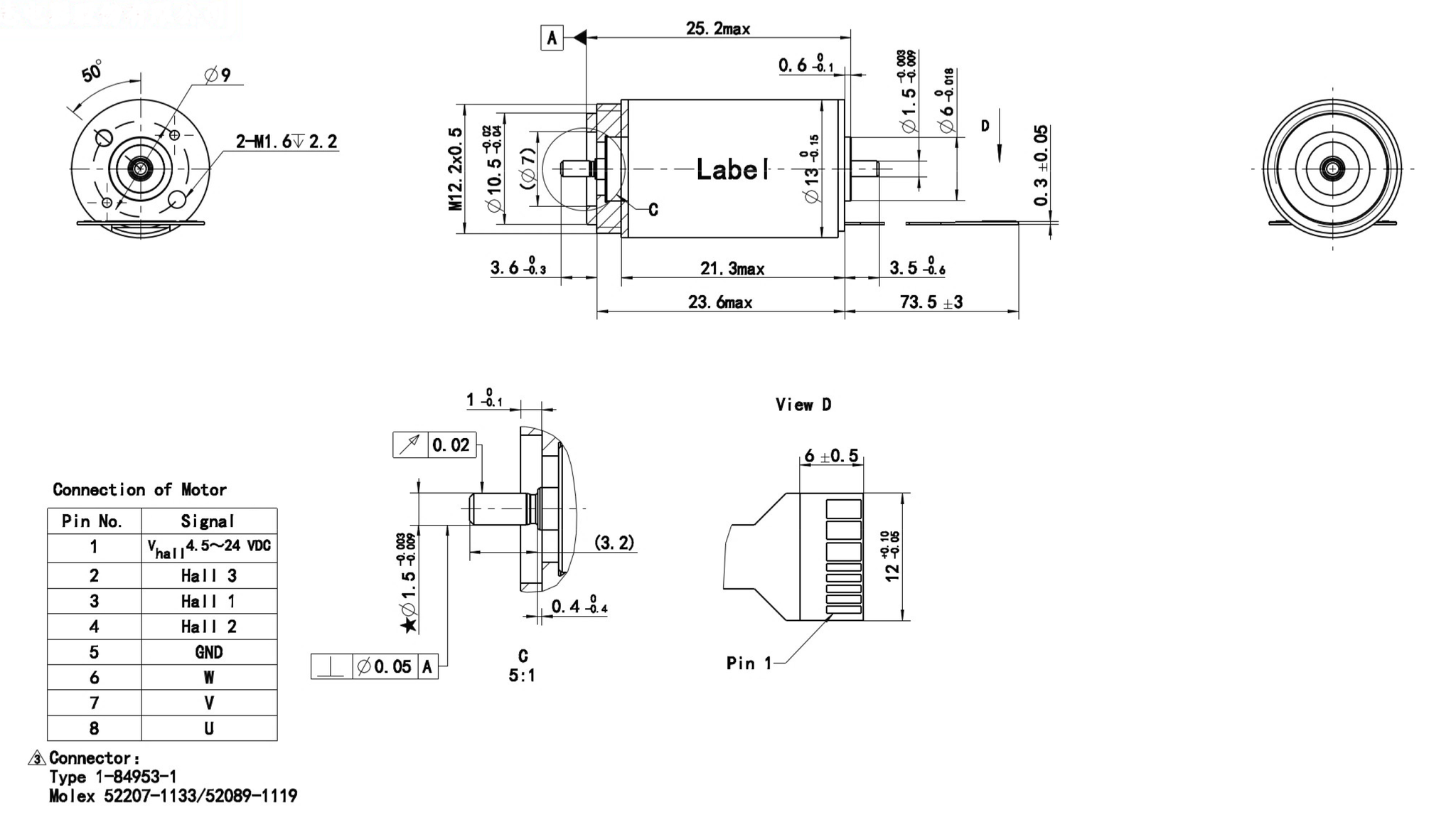

Dimensions

ModelDIM. A (length) in
SLU13CH026-060.990 in

Performance Curve

SLU13CH026 Series

Downloads

SLU13CH026-06 Configured Datasheet (PDF)
