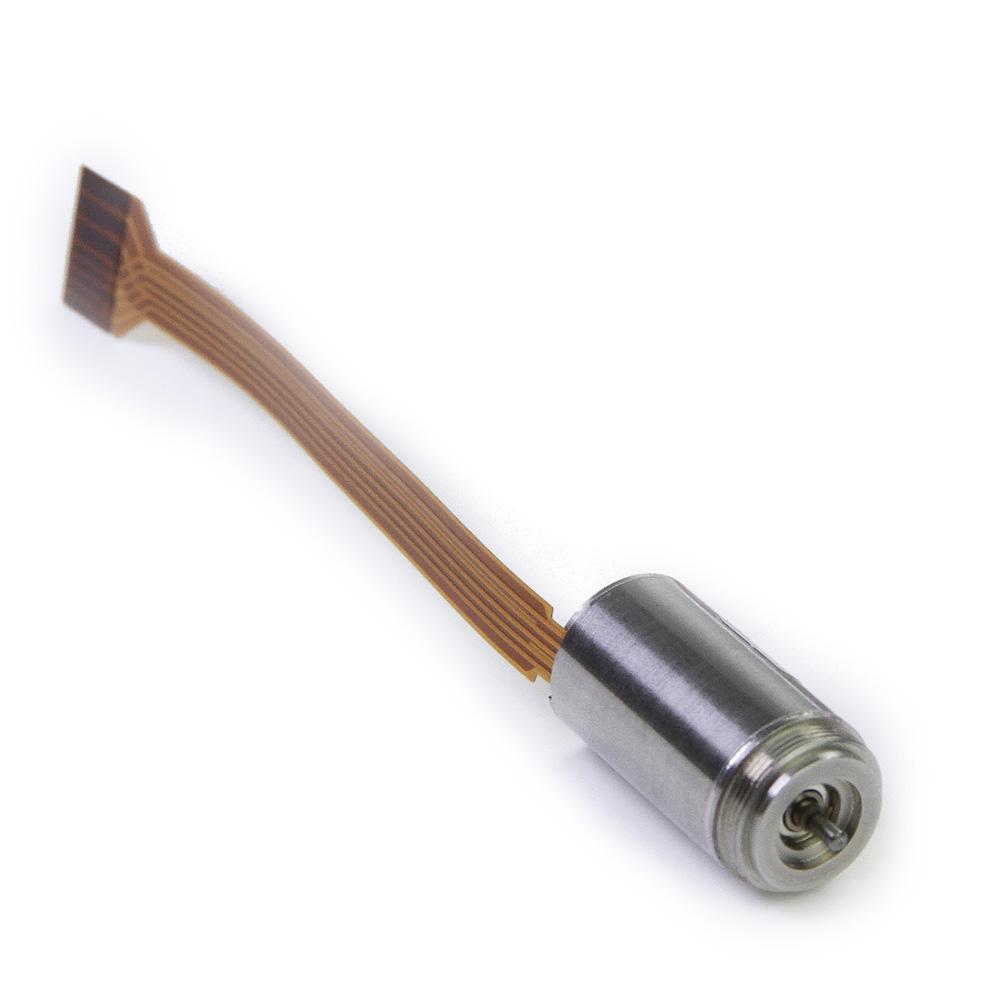

SLU13CH026 SeriesSLU13CH026-09Slotless BLDC Motor
Specifications:
- 0.510 in Frame Size
- 1.01 A Rated Current
- 0.3469 oz-in Rated Torque
- 9 VDC Nominal Voltage
- 0.990 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Unit Price:
$127.60
Inventory:
10 Available in 4 Business Days
Ships:
4 Business Days
Part Number:
SLU13CH026-09
Looking For Higher Volume?
Specifications
Motor Specifications
| Frame Size | 0.510 in |
| Motor Type | Motor Only |
| Weight | 0.042 lbs |
| Number of pole | 2 |
| Number of Phases | 3 |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 9 VDC |
| No Load Speed | 31000 RPM |
| No Load Current | 120 mA |
| Nominal Speed | 21500 RPM |
| Nominal Torque (Max Cont. Torque) | 0.3469 oz-in |
| Nominal Current (Max Cont. Current) | 1.01 A |
| Rated Speed | 21500 RPM |
| Rated Torque | 0.3469 oz-in |
| Rated Current | 1.01 A |
| Stall Torque | 1.4685 oz-in |
| Stall Current | 3.6 A |
| Max. Efficiency | 66.7% |
Motor Characteristics
| Terminal Resistance | 2.65 ohm |
| Terminal Inductance | 0.044 mH |
| Speed/Torque Gradient | 423.4197 RPM/oz-in |
| Speed Constant | 3444 RPM/V |
| Mechanical Time Constant | 6.85 ms |
| Rotor Inertia | 0.001 oz-in² |
Motor Mechanical Data
| Axial play | 0.002 in |
| Radial play | Preloaded |
| Max. Radial Load | 0.899 lbf |
| Distance From Flange For Radial Load | 5 in |
| Max Force For Press Fit | 2.248 lbf |
| Max Speed (Mechanical) | 40000 RPM |
Motor Thermal Data
| Ambient Temperature | -40 °F to 212.00 °F |
| Insulation Class | F |
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 89.60 °F/W |
| Thermal resistance (Winding-Housing) | 38.64 °F/W |
| Thermal time constant motor | 250 s |
| Thermal time constant winding | 0.58 s |

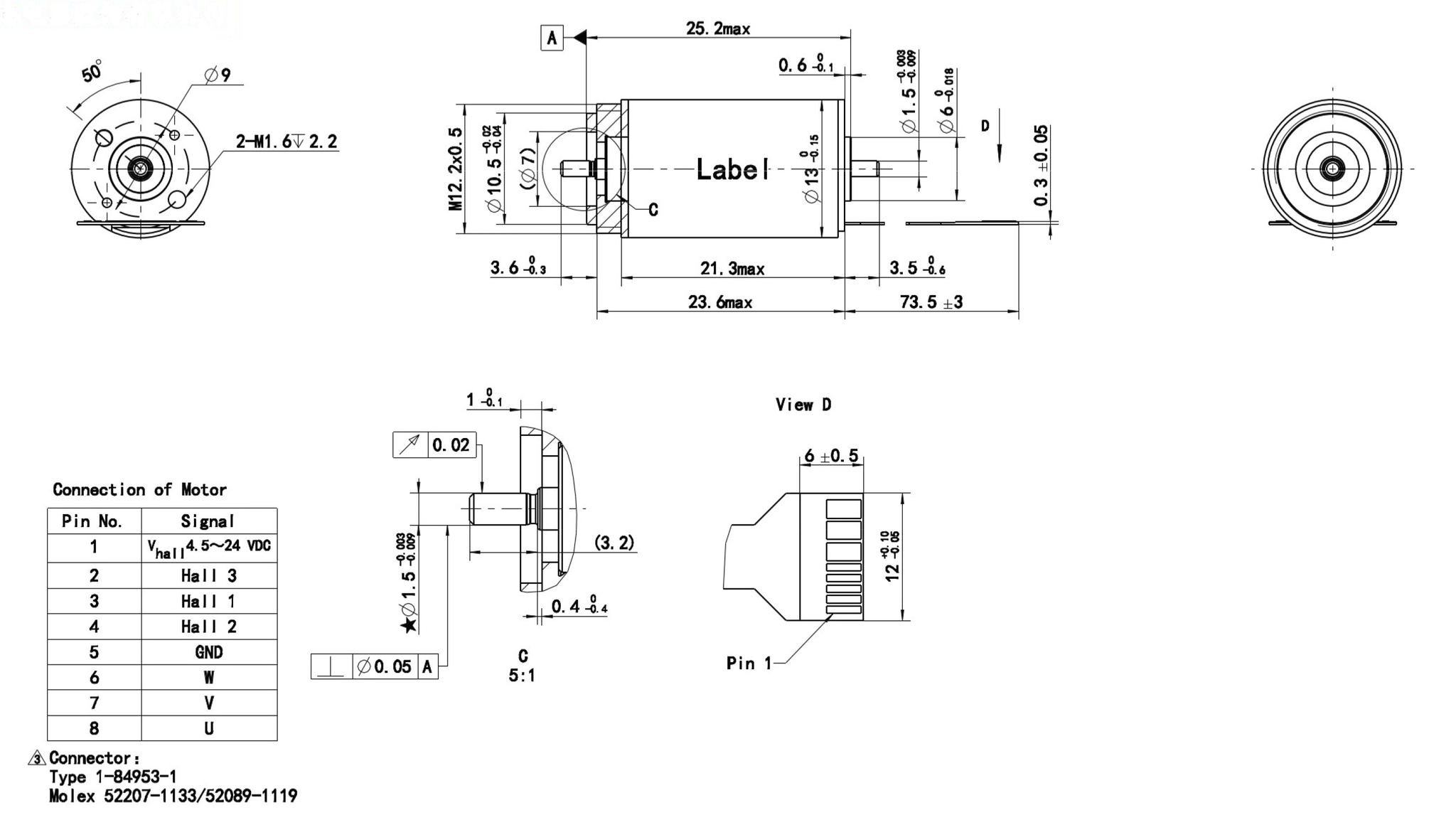

Dimensions
| Model | DIM. A (length) in |
|---|---|
| SLU13CH026-09 | 0.990 in |
Performance Curve
SLU13CH026 Series
Downloads
SLU13CH026-09 Configured Datasheet (PDF)
