SLU13CH038 Series

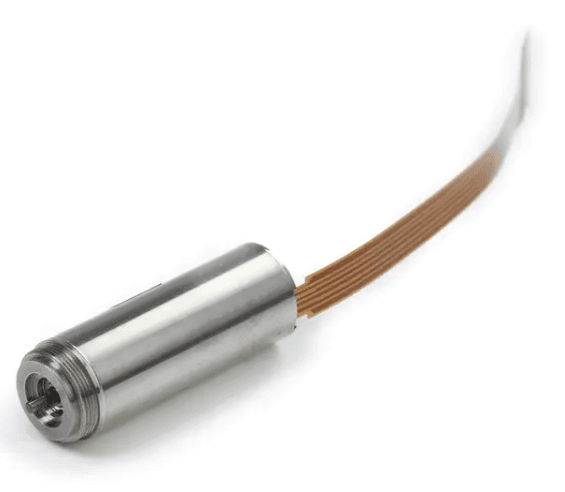

SLU13CH038-36
Slotless BLDC Motor

Featured product media

Quick Facts

SLU13CH038-36 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.45 A Rated Current
  • 0.7647 oz-in Rated Torque
  • 36 VDC Nominal Voltage
  • 1.470 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor Only
Weight0.064 lbs
Number of pole2
Number of Phases3
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage36 VDC
No Load Speed 27000 RPM
No Load Current41 mA
Nominal Speed27000 RPM
Nominal Torque (Max Cont. Torque)0.7647 oz-in
Nominal Current (Max Cont. Current)0.45 A
Rated Speed27000 RPM
Rated Torque0.7647 oz-in
Rated Current0.45 A
Stall Torque4.0459 oz-in
Stall Current2.28 A
Max. Efficiency76.8%

Motor Characteristics

Terminal Resistance15.8 ohm
Terminal Inductance0.299 mH
Speed/Torque Gradient 133.8233 RPM/oz-in
Speed Constant750 RPM/V
Mechanical Time Constant3.1 ms
Rotor Inertia0.002 oz-in²

Motor Mechanical Data

Axial play0.002 in
Radial playPreloaded
Max. Radial Load0.899 lbf
Distance From Flange For Radial Load5 in
Max Force For Press Fit2.248 lbf
Max Speed (Mechanical)40000 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Insulation ClassF
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal resistance (Housing-Ambient)73.40 °F/W
Thermal resistance (Winding-Housing)35.40 °F/W
Thermal time constant motor350 s
Thermal time constant winding0.48 s

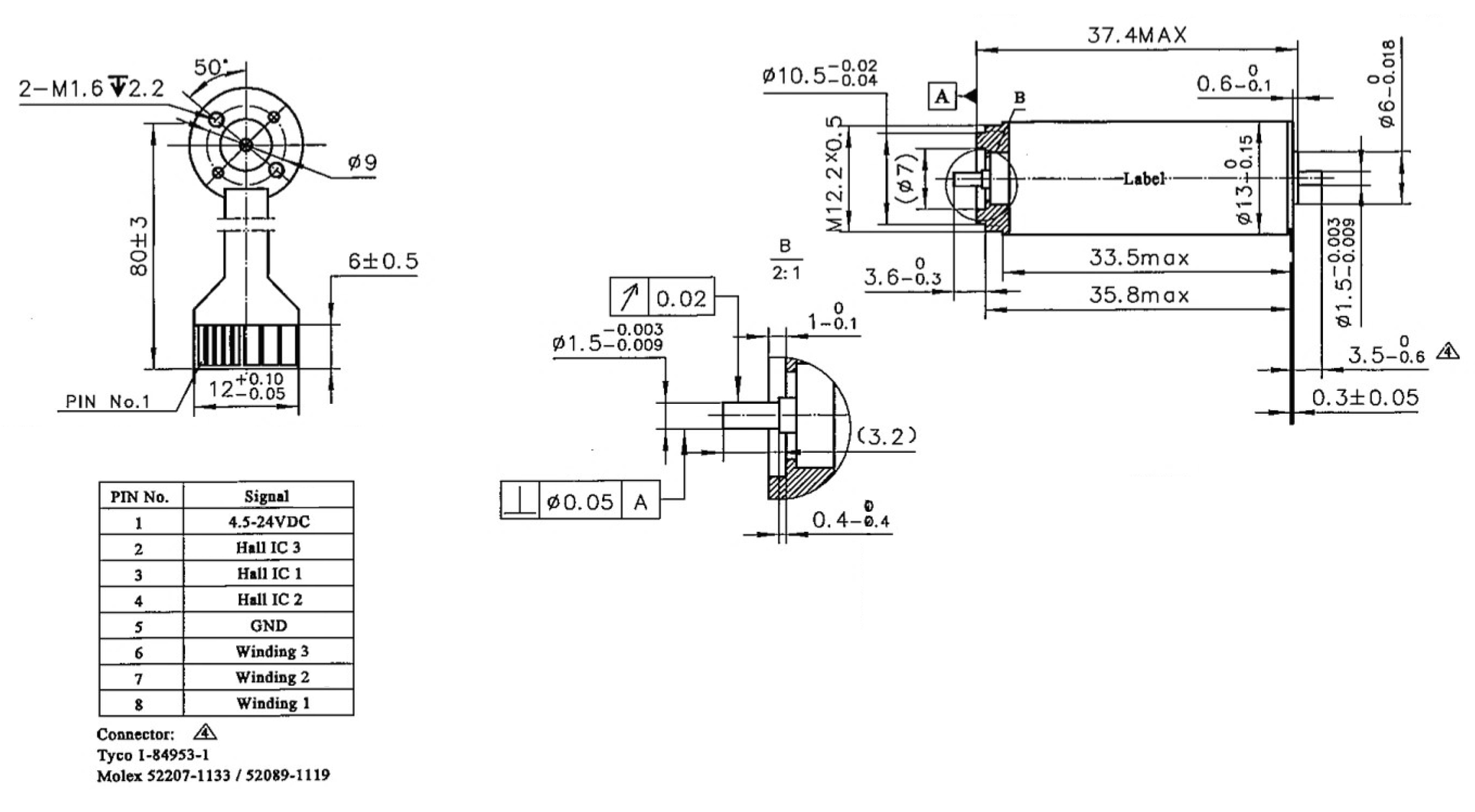

Dimensions

ModelDIM. A (length) in MAX
SLU13CH038-361.470 in
