SLU16CH052 SeriesSLU16CH052-12-G172-M16-1024Slotless BLDC Motor
Quick Facts
SLU16CH052-12-G172-M16-1024 Slotless BLDC Motors
SLU16CH052-12-G172-M16-1024 Slotless BLDC Motors
Specifications:
- 0.630 in Frame Size
- 0.57 A Rated Current
- 73.6382 oz-in Rated Torque
- 12 VDC Nominal Voltage
- 3.380 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 0.630 in |
| Motor Type | Motor + Encoder + Gearhead |
| Weight | 0.225 lbs |
| Number of pole | 2 |
| Number of Phases | 3 |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 12 VDC |
| No Load Speed | 93 RPM |
| No Load Current | 216 mA |
| Nominal Speed | 80 RPM |
| Nominal Torque (Max Cont. Torque) | 73.6382 oz-in |
| Nominal Current (Max Cont. Current) | 2.42 A |
| Rated Speed | 86 RPM |
| Rated Torque | 73.6382 oz-in |
| Rated Current | 0.57 A |
| Stall Torque | 2233.2201 oz-in |
| Stall Current | 15.58 A |
| Max. Efficiency | 67.6% |
Motor Characteristics
| Terminal Resistance | 0.77 ohm |
| Terminal Inductance | 0.0616 mH |
| Speed/Torque Gradient | 19.2592 RPM/oz-in |
| Speed Constant | 1298 RPM/V |
| Mechanical Time Constant | 1.21 ms |
| Rotor Inertia | 0.005 oz-in² |
Motor Mechanical Data
| Radial play | 0.004 |
| Max. Radial Load | 11.24 lbf |
| Distance From Flange For Radial Load | 5 in |
| Max Force For Press Fit | 8.992 lbf |
| Max Speed (Mechanical) | 174 RPM |
Motor Thermal Data
| Ambient Temperature | -40 °F to 185.00 °F |
| Insulation Class | F |
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 63.68 °F/W |
| Thermal resistance (Winding-Housing) | 35.24 °F/W |
| Thermal time constant motor | 600 s |
| Thermal time constant winding | 3.12 s |
Gearhead Specifications
| Type Of Gearhead | Planetary Gearhead |
| Gearhead Reduction Ratio | 172 |
| Nominal Reduction Ratio | 171.95 |
| Absolute Reduction Ratio | 326700/1900 |
| Number Of Stages | 3 |
Encoder Specifications
| Counts Per Turn | 1024 |
| Number Of Channels | 3 |
Dimensions

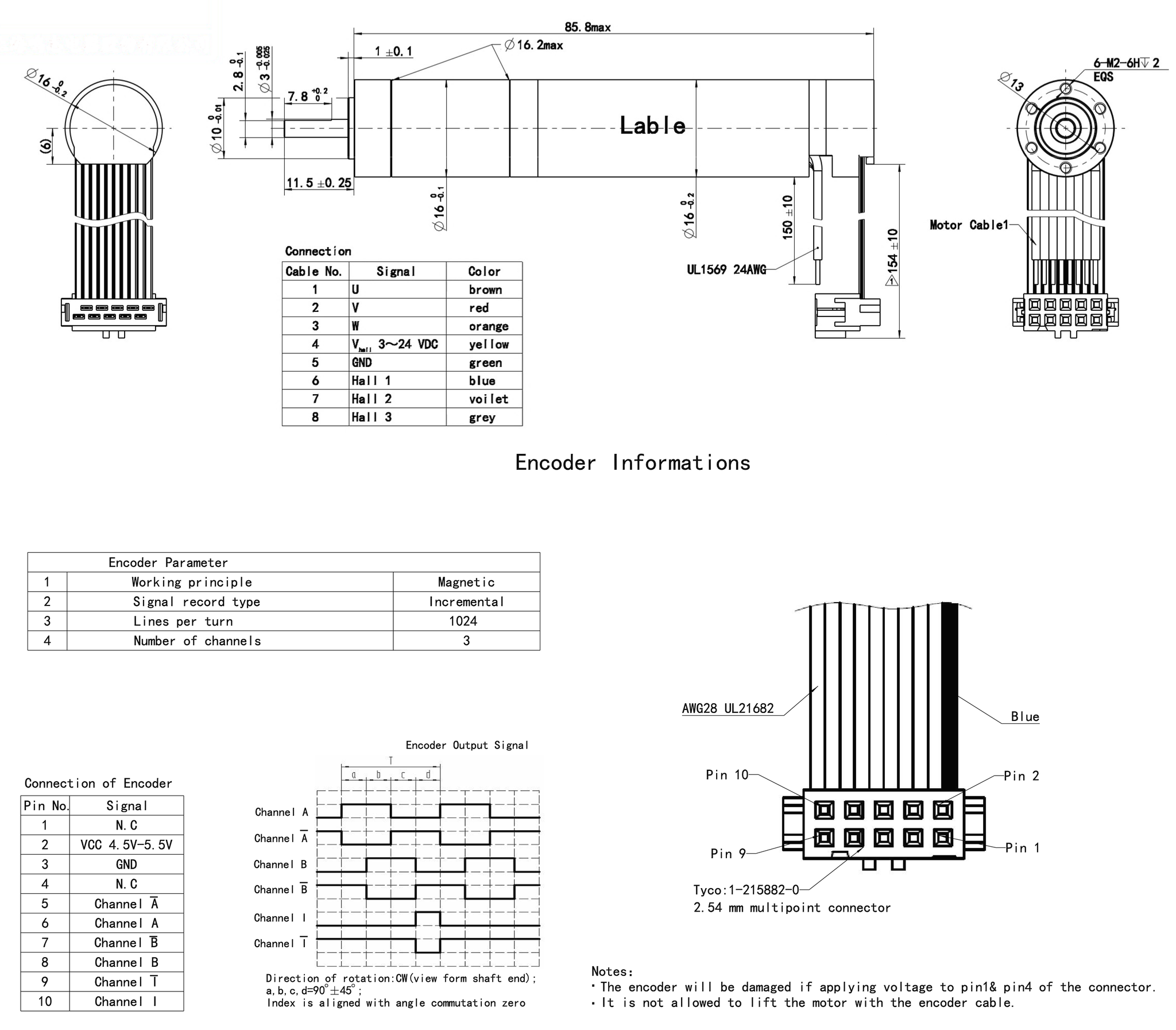

| Model | DIM. A (length) in MAX |
|---|---|
| SLU16CH052-12-G172-M16-1024 | 3.380 in |
Performance Curve
SLU16CH052 Series
Downloads
SLU16CH052-12-G172-M16-1024 Configured Datasheet (PDF)
