SLU16CH052 Series
SLU16CH052-12-G83
Slotless BLDC Motor

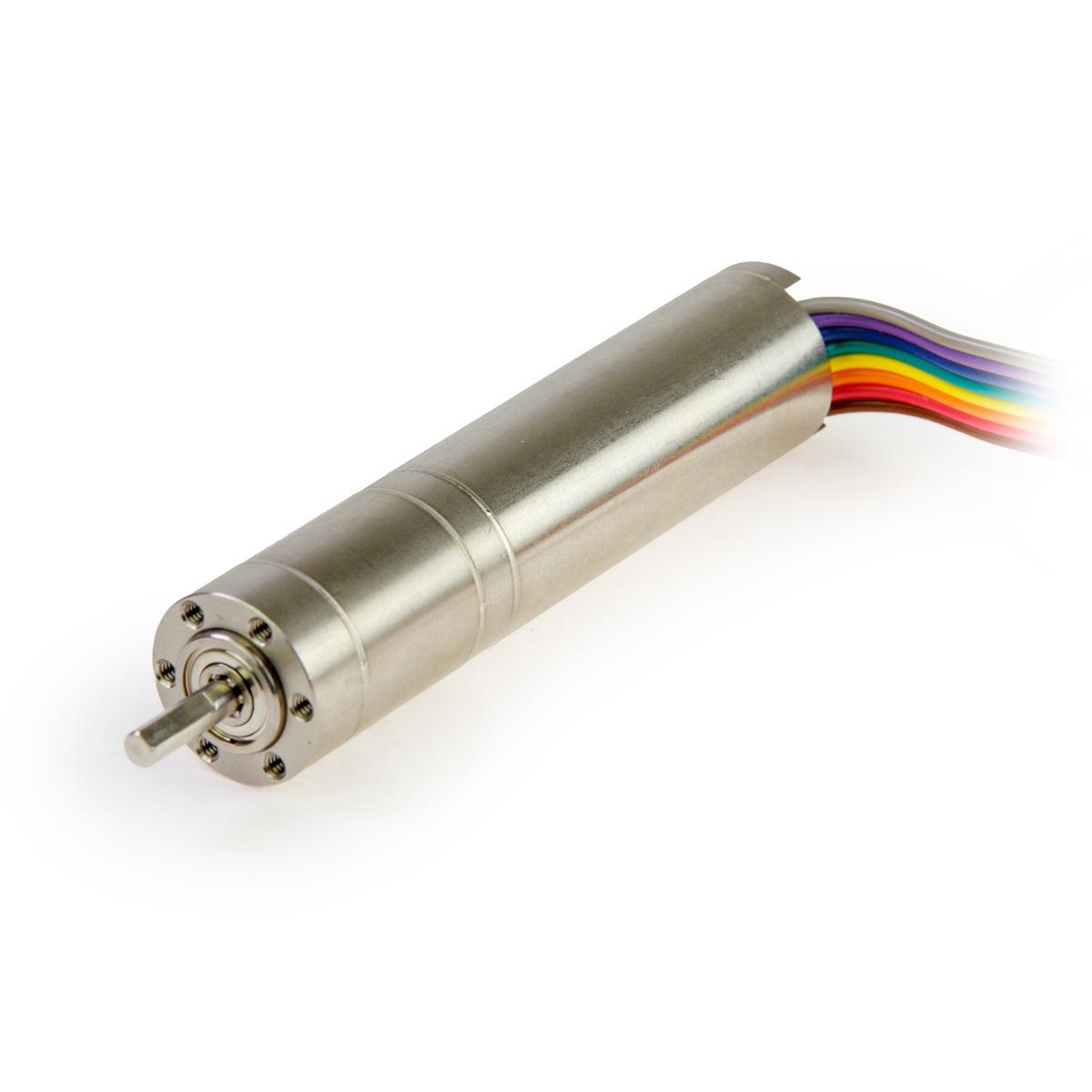

Featured product media

Quick Facts

SLU16CH052-12-G83 Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 1.05 A Rated Current
  • 73.6382 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 3.060 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Gearhead
Weight0.209 lbs
Number of pole2
Number of Phases3
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 193 RPM
No Load Current216 mA
Nominal Speed166 RPM
Nominal Torque (Max Cont. Torque)73.6382 oz-in
Nominal Current (Max Cont. Current)2.42 A
Rated Speed163 RPM
Rated Torque73.6382 oz-in
Rated Current1.05 A
Stall Torque1073.4184 oz-in
Stall Current15.58 A
Max. Efficiency67.6%

Motor Characteristics

Terminal Resistance0.77 ohm
Terminal Inductance0.0616 mH
Speed/Torque Gradient 19.2592 RPM/oz-in
Speed Constant1298 RPM/V
Mechanical Time Constant1.21 ms
Rotor Inertia0.005 oz-in²

Motor Mechanical Data

Radial play0.004
Max. Radial Load11.24 lbf
Distance From Flange For Radial Load5 in
Max Force For Press Fit8.992 lbf
Max Speed (Mechanical)362 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 185.00 °F
Insulation ClassF
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal resistance (Housing-Ambient)63.68 °F/W
Thermal resistance (Winding-Housing)35.24 °F/W
Thermal time constant motor600 s
Thermal time constant winding3.12 s

Gearhead Specifications

Type Of GearheadPlanetary Gearhead
Gearhead Reduction Ratio83
Nominal Reduction Ratio82.7
Absolute Reduction Ratio388125/4693
Number Of Stages3

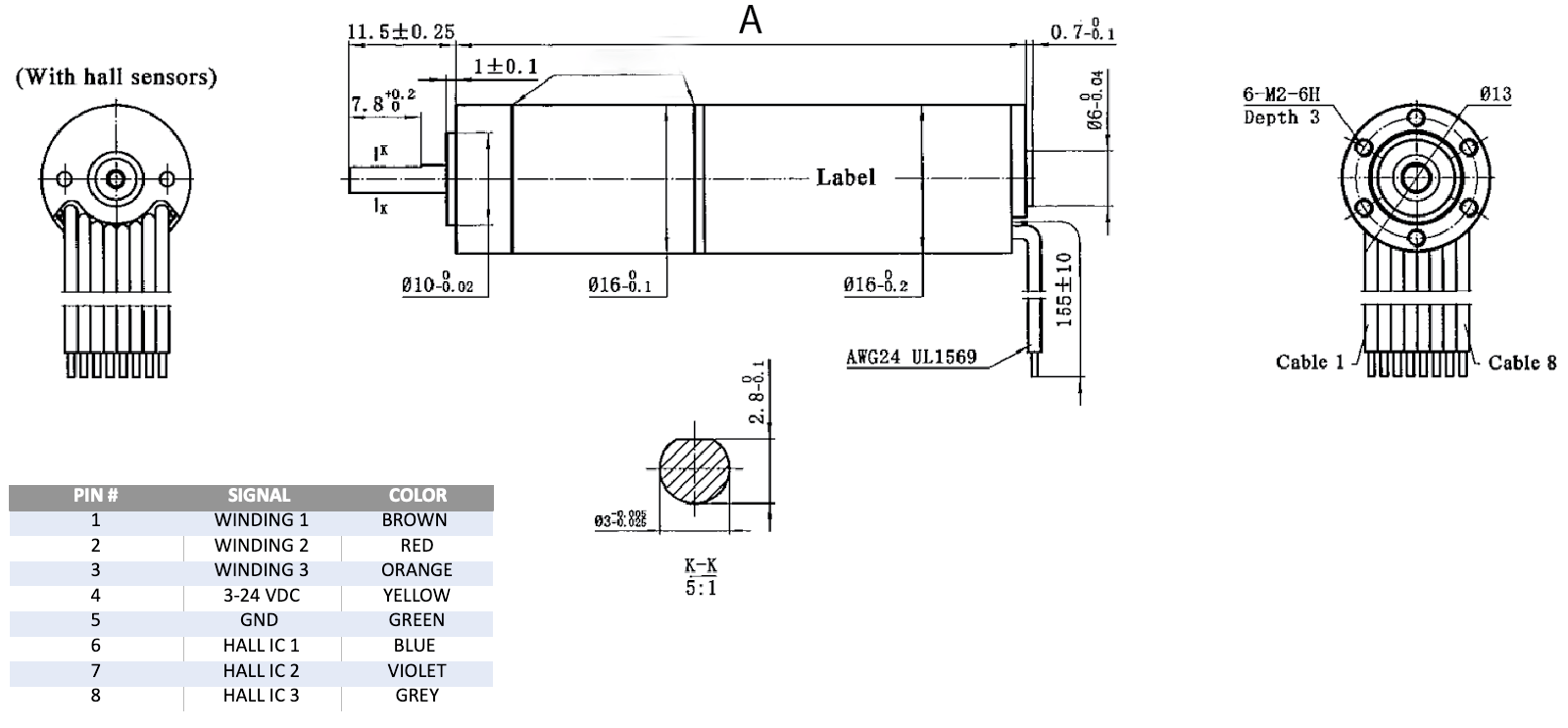

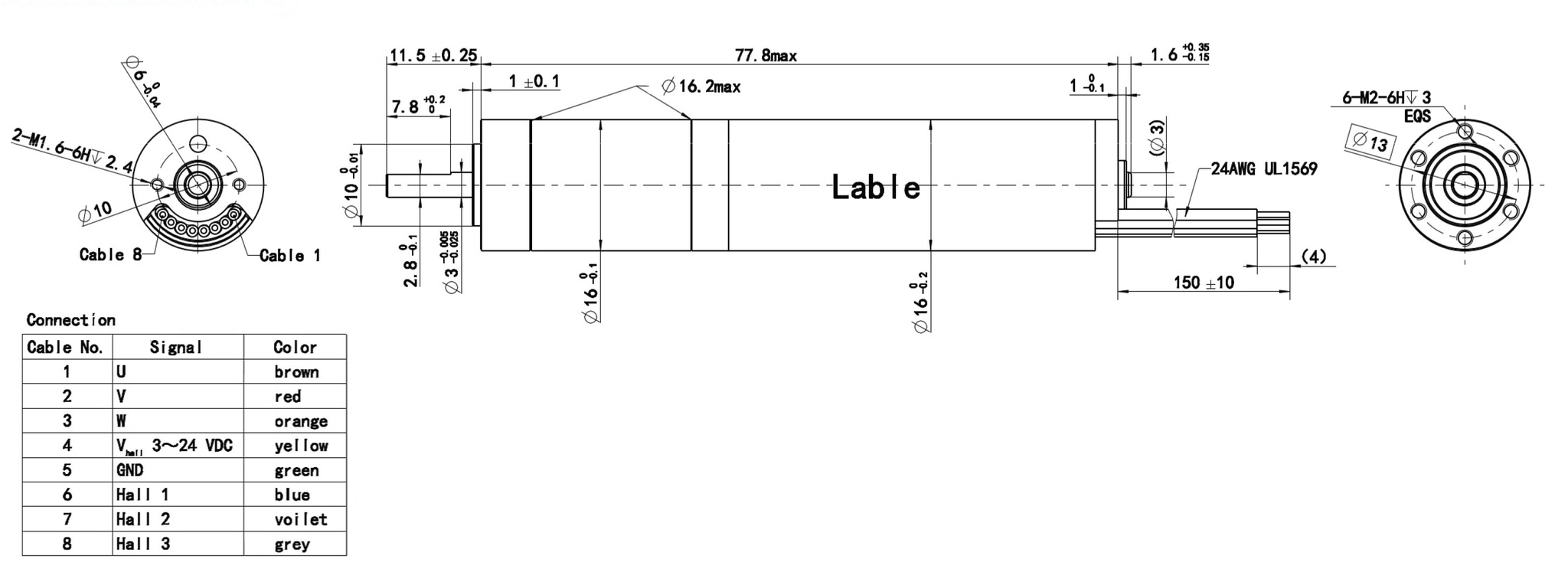

Dimensions

ModelDIM. A (length) in MAX
SLU16CH052-12-G833.060 in

Performance Curve

SLU16CH052 Series

Downloads

SLU16CH052-12-G83 Configured Datasheet (PDF)
