SLU16CH052 SeriesSLU16CH052-24-G406-M16-1024Slotless BLDC Motor
Specifications:
- 0.630 in Frame Size
- 0.22 A Rated Current
- 92.0478 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 3.570 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Unit Price:
$400.00
Inventory:
3 Available in 4 Business Days
Ships:
4 Business Days
Part Number:
SLU16CH052-24-G406-M16-1024
Looking For Higher Volume?
Specifications
Motor Specifications
| Frame Size | 0.630 in |
| Motor Type | Motor + Encoder + Gearhead |
| Weight | 0.235 lbs |
| Number of pole | 2 |
| Number of Phases | 3 |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 24 VDC |
| No Load Speed | 39 RPM |
| No Load Current | 150 mA |
| Nominal Speed | 34 RPM |
| Nominal Torque (Max Cont. Torque) | 92.0478 oz-in |
| Nominal Current (Max Cont. Current) | 1.19 A |
| Rated Speed | 37 RPM |
| Rated Torque | 92.0478 oz-in |
| Rated Current | 0.22 A |
| Stall Torque | 4763.8253 oz-in |
| Stall Current | 7.6 A |
| Max. Efficiency | 60.68% |
Motor Characteristics
| Terminal Resistance | 3.16 ohm |
| Terminal Inductance | 0.253 mH |
| Speed/Torque Gradient | 19.4008 RPM/oz-in |
| Speed Constant | 643 RPM/V |
| Mechanical Time Constant | 1.22 ms |
| Rotor Inertia | 0.005 oz-in² |
Motor Mechanical Data
| Radial play | 0.004 |
| Max. Radial Load | 11.24 lbf |
| Distance From Flange For Radial Load | 5 in |
| Max Force For Press Fit | 8.992 lbf |
| Max Speed (Mechanical) | 74 RPM |
Motor Thermal Data
| Ambient Temperature | -40 °F to 185.00 °F |
| Insulation Class | F |
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 63.68 °F/W |
| Thermal resistance (Winding-Housing) | 35.24 °F/W |
| Thermal time constant motor | 600 s |
| Thermal time constant winding | 3.12 s |
Gearhead Specifications
| Type Of Gearhead | Planetary Gearhead |
| Gearhead Reduction Ratio | 406 |
| Nominal Reduction Ratio | 405.94 |
| Absolute Reduction Ratio | 27843750/68590 |
| Number Of Stages | 3 |
Encoder Specifications
| Counts Per Turn | 1024 |
| Number Of Channels | 3 |
Dimensions

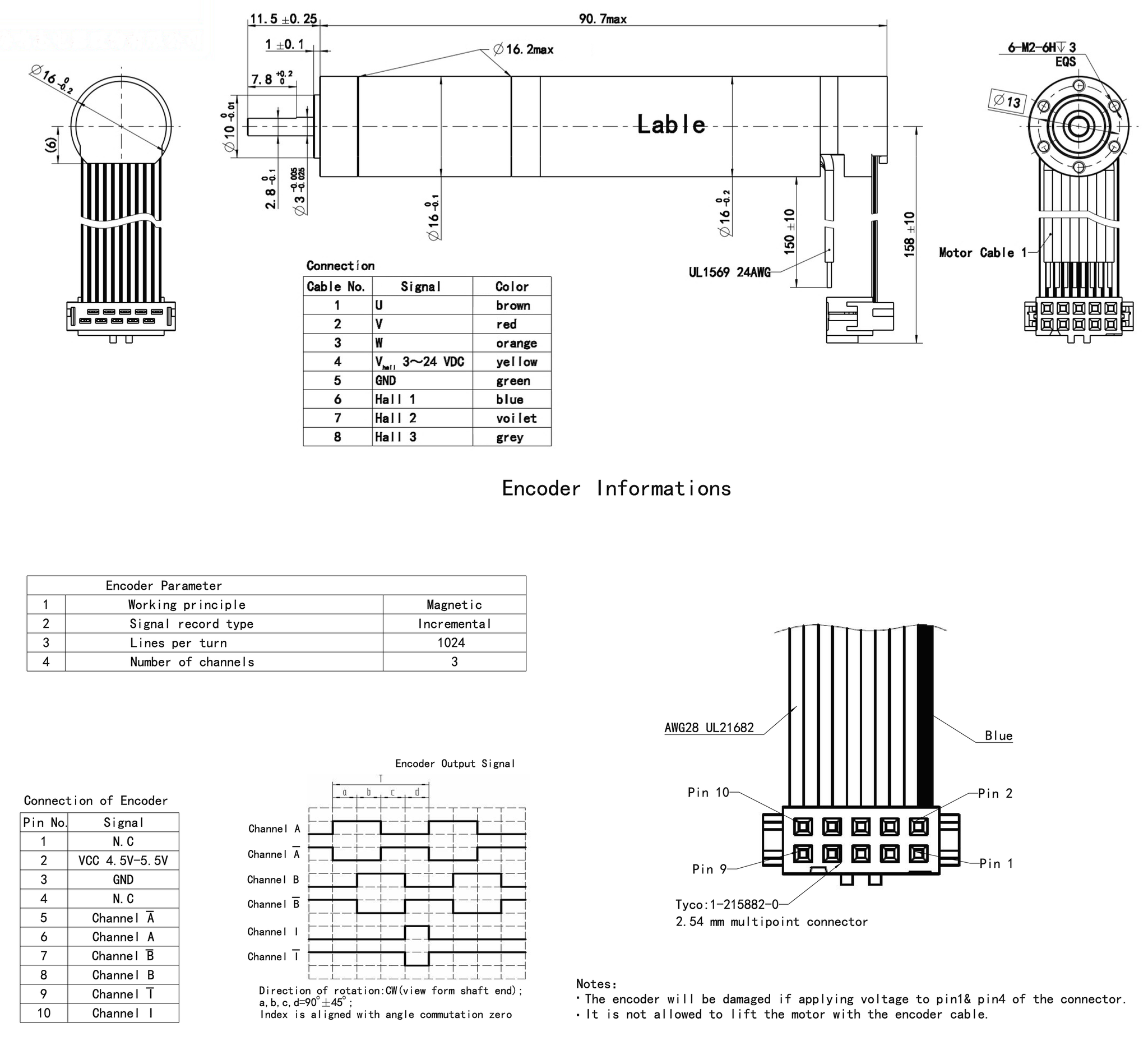

| Model | DIM. A (length) in |
|---|---|
| SLU16CH052-24-G406-M16-1024 | 3.570 in |
Performance Curve
SLU16CH052 Series
Downloads
SLU16CH052-24-G406-M16-1024 Configured Datasheet (PDF)
