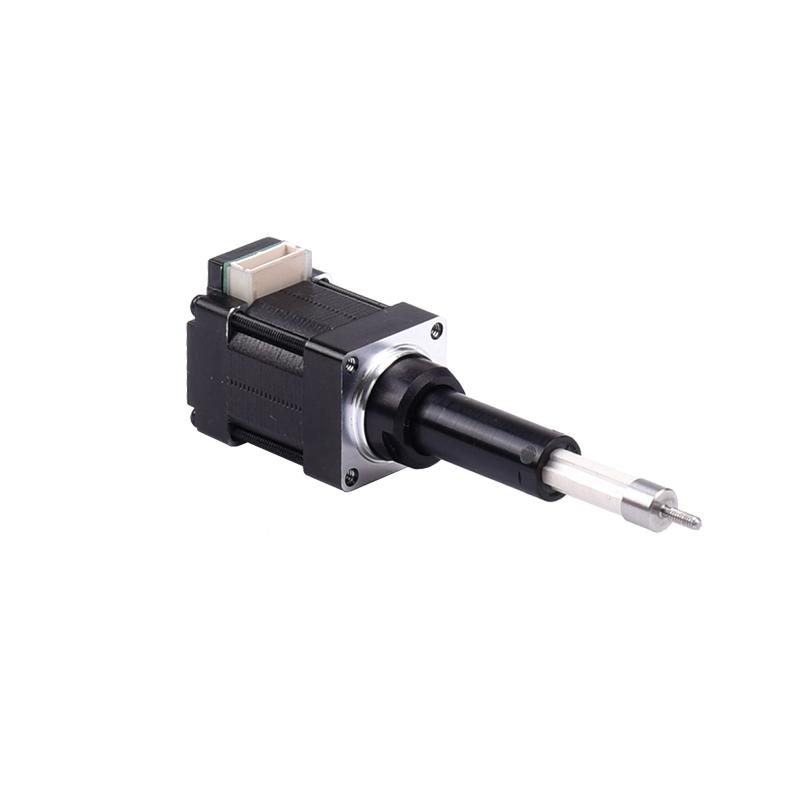

LC08 Series
Features and Benefits:
- Internal Nut: Captive configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 08 Frame Size
- 1.8° Step Angle Stepper Motor
- 0.5 A Rated Current
- 1.16 in Motor Length
- 0.024 to 0.096 in Screw Lead
Models
| Model # | Frame size | Body length | Rated Current | Screw Diameter | Screw lead | Linear Travel per Step | Rated Thrust | Effective stroke | Availability |
|---|---|---|---|---|---|---|---|---|---|
| LC-X208-030-02-E03006-25M | NEMA 08 | 1.160 in | 0.5 AMP/Phase | 0.140 in | 0.024 in | 0.0001 in | 6.744 lbf @300RPM | 1.000 in | Quote |
| LC-X208-030-02-E03024-25M | NEMA 08 | 1.160 in | 0.5 AMP/Phase | 0.140 in | 0.096 in | 0.0005 in | 3.372 lbf @300RPM | 1.000 in | Quote |
Performance Curve
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

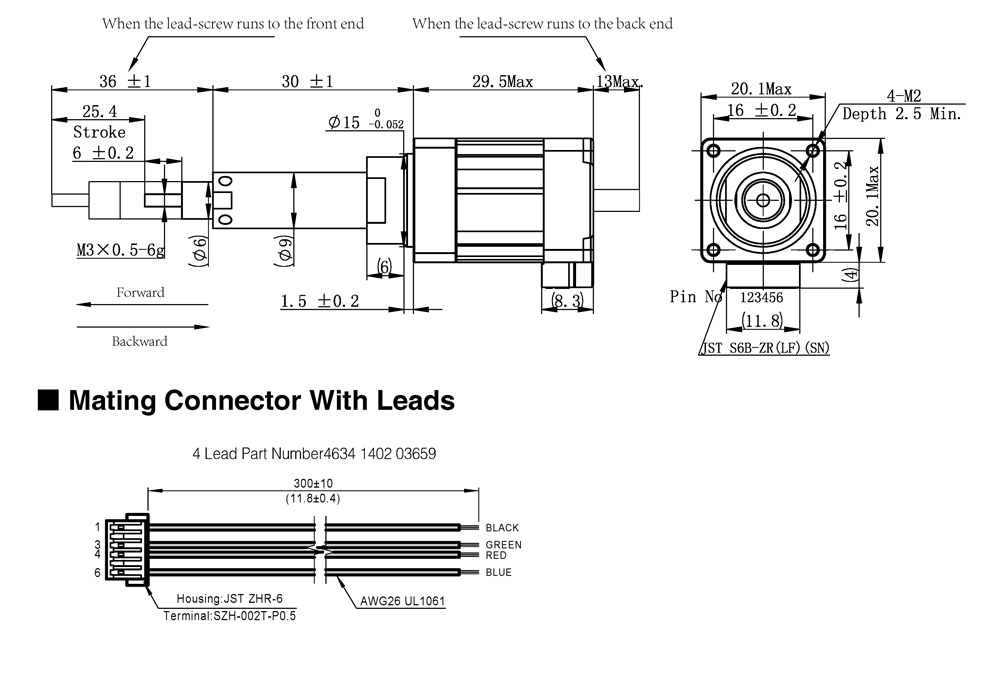

Dimensions
| Model | DIM. A (length) in |
|---|---|
| LC-X208-030-02-E03006-25M | 1.160 in |
| LC-X208-030-02-E03024-25M | 1.160 in |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
