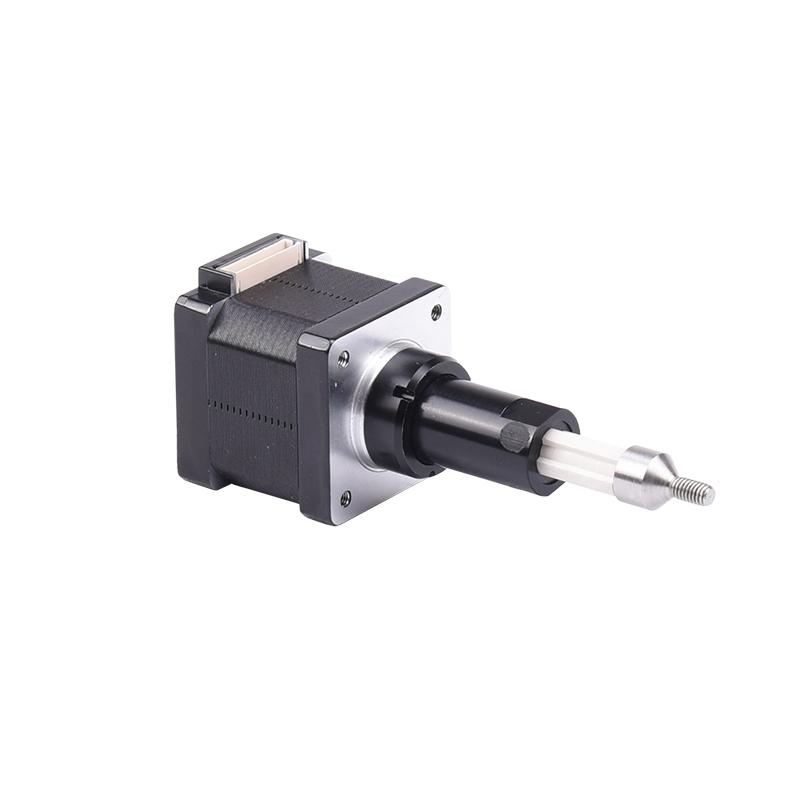

LC14 Series
Features and Benefits:
- Internal Nut: Captive configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 14 Frame Size
- 1.8° Step Angle Stepper Motor
- 0.5 to 1.5 A Rated Current
- 1.38 in Motor Length
- 0.031 to 0.5 in Screw Lead
Models
| Model # | Frame size | Body length | Rated Current | Screw Diameter | Screw lead | Linear Travel per Step | Rated Thrust | Effective stroke | Availability |
|---|---|---|---|---|---|---|---|---|---|
| LC-3518-035-03-E06063-25M | NEMA 14 | 1.380 in | 1.5 AMP/Phase | 0.250 in | 0.250 in | 0.0013 in | 7.418 lbf @300RPM | 1.000 in | Quote |
| LC-3518-035-03-E06008-25M | NEMA 14 | 1.380 in | 1.5 AMP/Phase | 0.250 in | 0.031 in | 0.0002 in | 22.705 lbf @300RPM | 1.000 in | Quote |
| LC-3518-035-04-E06127-25M | NEMA 14 | 1.380 in | 0.5 AMP/Phase | 0.250 in | 0.500 in | 0.0025 in | 2.922 lbf @300RPM | 1.000 in | Quote |
| LC-3518-035-03-E06127-25M | NEMA 14 | 1.380 in | 1.5 AMP/Phase | 0.250 in | 0.500 in | 0.0025 in | 4.046 lbf @300RPM | 1.000 in | Quote |
| LC-3518-035-02-E06127-25M | NEMA 14 | 1.380 in | 1 AMP/Phase | 0.250 in | 0.500 in | 0.0025 in | 3.822 lbf @300RPM | 1.000 in | Quote |
| LC-3518-035-02-E06008-25M | NEMA 14 | 1.380 in | 1 AMP/Phase | 0.250 in | 0.031 in | 0.0002 in | 22.03 lbf @300RPM | 1.000 in | Quote |
| LC-3518-035-02-E06063-25M | NEMA 14 | 1.380 in | 1 AMP/Phase | 0.250 in | 0.250 in | 0.0013 in | 7.194 lbf @300RPM | 1.000 in | Quote |
| LC-3518-035-04-E06063-25M | NEMA 14 | 1.380 in | 0.5 AMP/Phase | 0.250 in | 0.250 in | 0.0013 in | 5.17 lbf @300RPM | 1.000 in | Quote |
| LC-3518-035-04-E06008-25M | NEMA 14 | 1.380 in | 0.5 AMP/Phase | 0.250 in | 0.031 in | 0.0002 in | 15.961 lbf @300RPM | 1.000 in | Quote |
Performance Curve
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

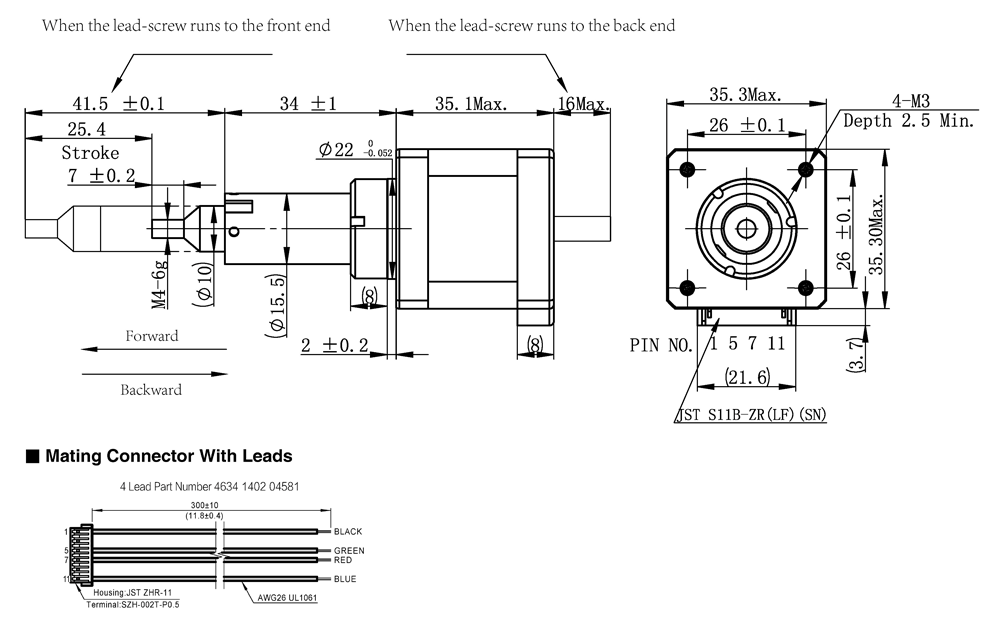

Dimensions
| Model | DIM. A (length) in |
|---|---|
| LC-3518-035-03-E06063-25M | 1.380 in |
| LC-3518-035-03-E06008-25M | 1.380 in |
| LC-3518-035-04-E06127-25M | 1.380 in |
| LC-3518-035-03-E06127-25M | 1.380 in |
| LC-3518-035-02-E06127-25M | 1.380 in |
| LC-3518-035-02-E06008-25M | 1.380 in |
| LC-3518-035-02-E06063-25M | 1.380 in |
| LC-3518-035-04-E06063-25M | 1.380 in |
| LC-3518-035-04-E06008-25M | 1.380 in |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
