Configured Part Number
LCPM20S-150-040
Configure This Motor
Unit Price:
$37.80
Inventory:
10 Available in 2 Business Days
Ships:
2 Business Days
QTY
Looking For Higher Volume?
LPM20 SeriesLCPM20S-150-040
Quick Facts

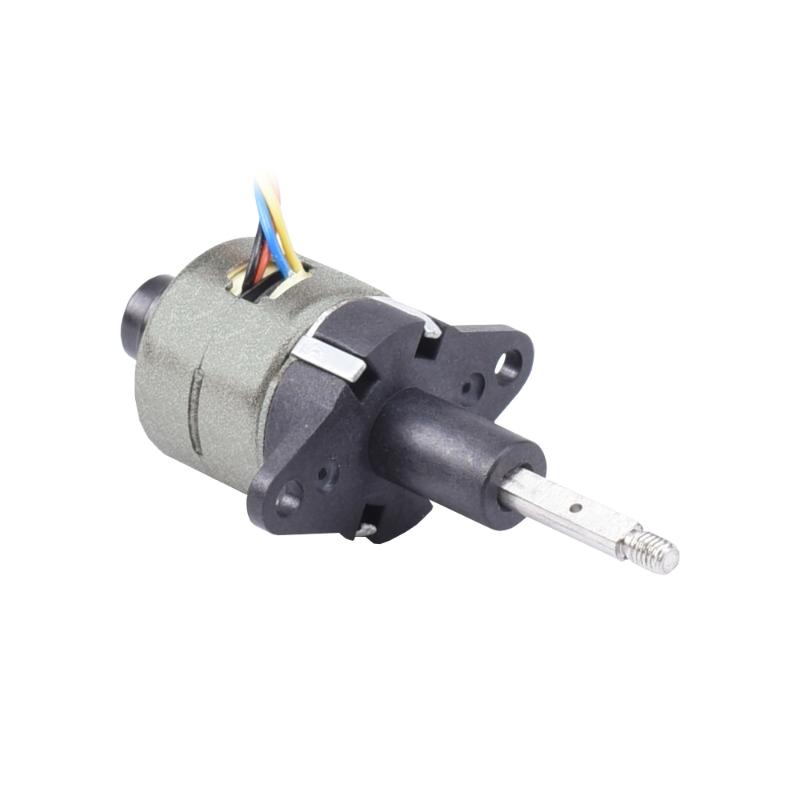

LCPM20S-150-040 Series PM Linear Stepper Motors
LCPM20S-150-040 Series PM Linear Stepper Motors
Specifications:
- 0.790 in Frame Size
- 15° Step Angle
- 24 Rated Voltage
- 0.4 A/Phase
Dimensions
| Model | DIM. A (length) in |
|---|---|
| LCPM20S-150-040 | 0.830 in |
Performance Curve
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Part Number | LCPM20S-150-040 |
| Style | LC |
| Step Angle | 15° |
| Frame Size | 0.790 in |
| Body Length | 0.830 in |
| Rated Current | 0.4 AMP |
| Rated Voltage | 24 VDC |
| Leadscrew Lead | 0.024 in |
| Step Travel | 0.001 in |
| Holding Force | 8.992 lbf |
| Resistance | 6.8 ohm |
| Connection | Bipolar |
| Phase | 2 |
| Weight | 0.071 lbs |
Operating Specifications
| Radial Shaft Play | 0.002 in @ 1.124 lbf |
| Axial Shaft Play | 0.008 in @ 2.023 lbf |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
| Storage Temperature Rating | -22 °F to 185.00 °F |
| Humidity Range | 20-90% |
