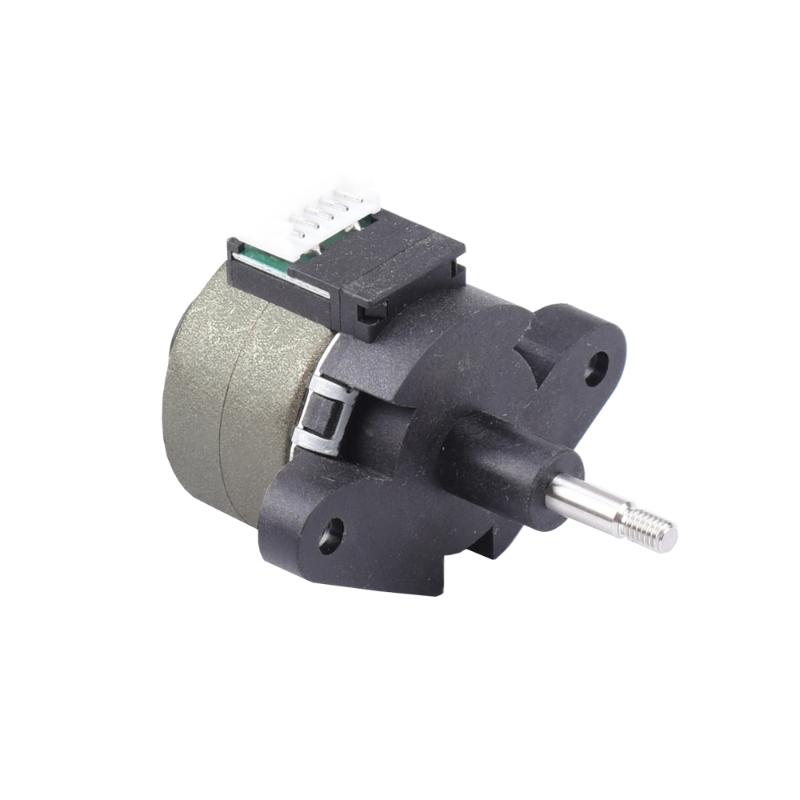

LPM35 Series
Specifications:
- 1.380 in Frame Size
- 15° Step Angle
- 13.5 Rated Voltage
- 0.566 A/Phase
Models
| Model # | Frame size | Body length | Step Angle | Rated voltage | Rated amperage | Leadscrew Lead | Step Travel | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|---|---|
| LCPM35L-150-057 | 1.380 in | 1.530 in | 15° | 13.5 VDC | 0.566 AMP/Phase | 0.031 in | 0.0013 in | 0.254 lbs | Quote |
Performance Curve
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| LCPM35L-150-057 | 1.530 in |
Operating Specifications
| Radial Shaft Play | 0.002 in @ 1.124 lbf |
| Axial Shaft Play | 0.006 in @ 3.372 lbf |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
| Storage Temperature Rating | -13 °F to 158.00 °F |
| Humidity Range | 10 - 95% RH |
