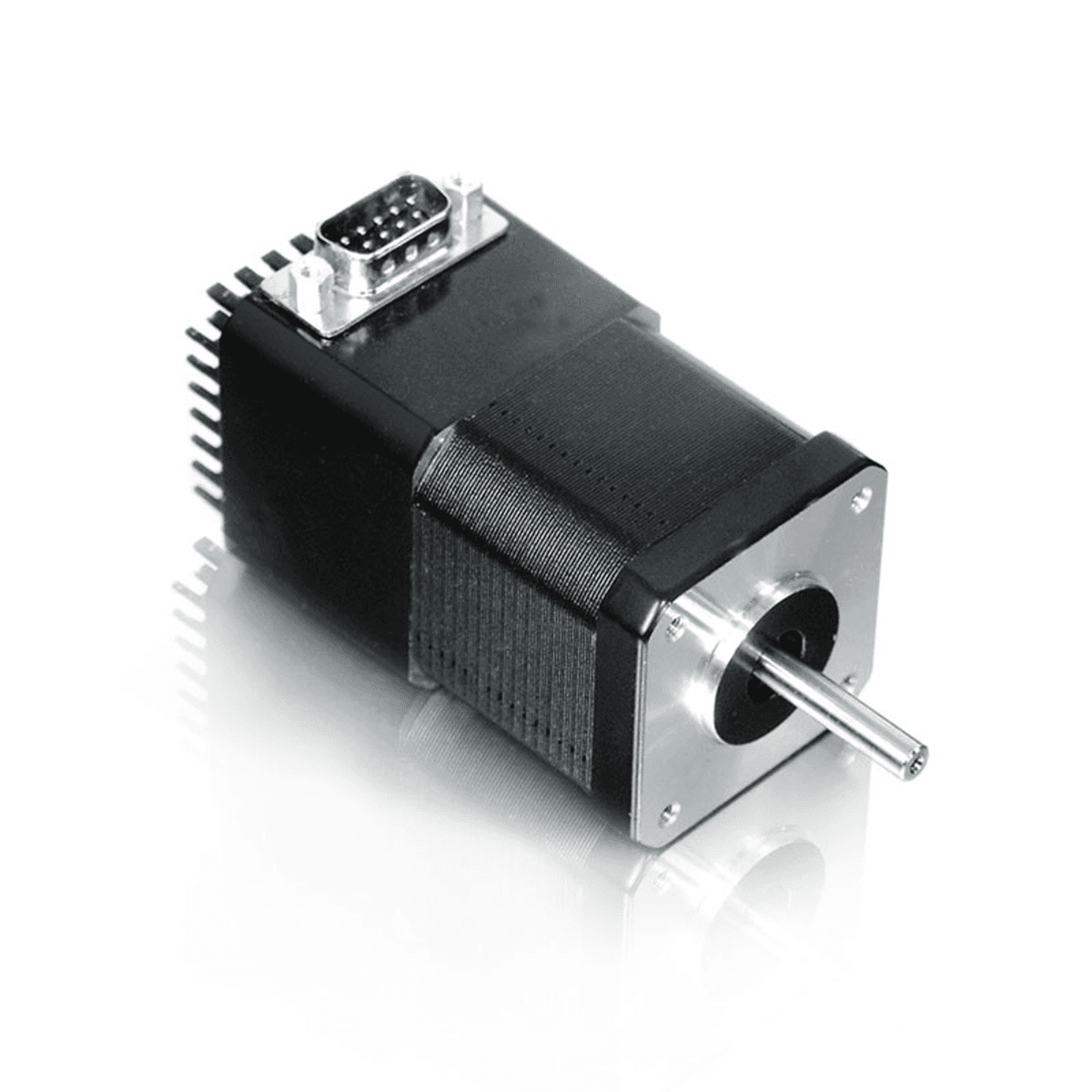

Silverpak 17D SeriesDO-4118L-06PMOTOR + DRIVER
Quick Facts
DO-4118L-06P Integrated Stepper Motors
- NEMA 17 (1.650 in) Frame Size
- 1.8° Step Angle
- 3.240 in Length
- 86.38 oz-in Holding Torque
- NEMA 17, 1.8º Bipolar Step Motor
- Operates from +12 to 24 VDC
- Up to 85 oz-in of Holding Torque
- Phase current ranges from 0.25 to 2.0 Amps Peak
Motor Specifications
| Part Number | DO-4118L-06P |
| Step Angle | 1.8° |
| Frame Size | 1.650 in |
| NEMA Size | NEMA 17 |
| Body Length | 3.240 in |
| Holding Torque | 86.38 oz-in |
Torque Curves
Speed
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Notice
Due to unprecedented product demand along with the ongoing supply chain related issues with semiconductors, we are experiencing extended lead times for this product.
Please contact your account manager or sales@linengineering.com for additional information.
Options
| MODEL NUMBER | HOLDING TORQUE oz-in (N-m) | ROTOR INERTIA oz-in2 (kg-cm2) | WEIGHT [Motor+Driver] lbs. (gm) |
|---|---|---|---|
| DO-4118S-01 | 30.00 (0.21) | 0.18 (0.03) | 0.55 (0.25) |
| DO-4118M-03P | 45.00 (0.32) | 0.28 (0.05) | 0.75 (0.34) |
| DO-4118L-06P | 85.00 (0.60) | 0.37 (0.07) | 0.85 (0.39) |

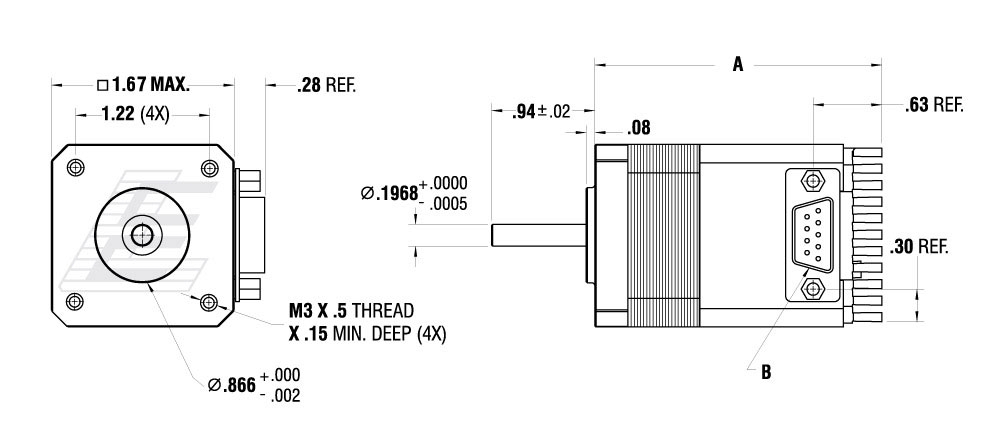

Dimensions
Motor Front Shaft Extension Length
Standard length is 0.94”.
Motor Shaft Diameter
Standard shaft diameter is 0.1968”.
Overall Body Length
Motor body length is available in various lengths (Dimension A):
. Model 4118S :2.69″(6.83 cm)
. Model 4118M:2.92″ (7.42 cm)
. Model 4118L:3.24″ (8.23 cm)
DB-9 Connector for Control (Dimension B)
Pin Outs
| PIN NUMBER | COLOR (#26 AWG Lead) | FUNCTION |
|---|---|---|
| 1 | Red | +12 to 24 VDC |
| 2 | Black | Step Resolution |
| 3 | Brown | Step Resolution |
| 4 | Black/White | Disable |
| 5 | Orange | Direction |
| 6 | Green | Power Ground |
| 7 | White | Logic Ground |
| 8 | Blue | Opto Supply |
| 9 | Yellow | Step |
The DB-9 provides power and controls
Electrical Specifications
- INPUT VOLTAGE: +12 to 24 VDC (Including Unregulated Power Supplies)
- DRIVE CURRENT(PER PHASE): 0.35 to 2.0 Amps Peak
- ISOLATED INPUTS: Step Clock, Direction, Enable & Disable
- STEP FREQUENCY (MAX): 500kHz
- STEPS PER REVOLUTION (1.8º MOTOR): 200, 400, 800, 1600
- MICROSTEP RESOLUTIONS (1.8º MOTOR): Full, 2x, 4x, 8x
DEFAULT SETTING
| FUNCTION (Command) | DESCRIPTION |
|---|---|
| Step Resolution | 8x Microstep |
| Direction of Rotation | Counterclockwise |
| Holding Current | 23% of motor's rated Current |
Silverpak 17D Series
