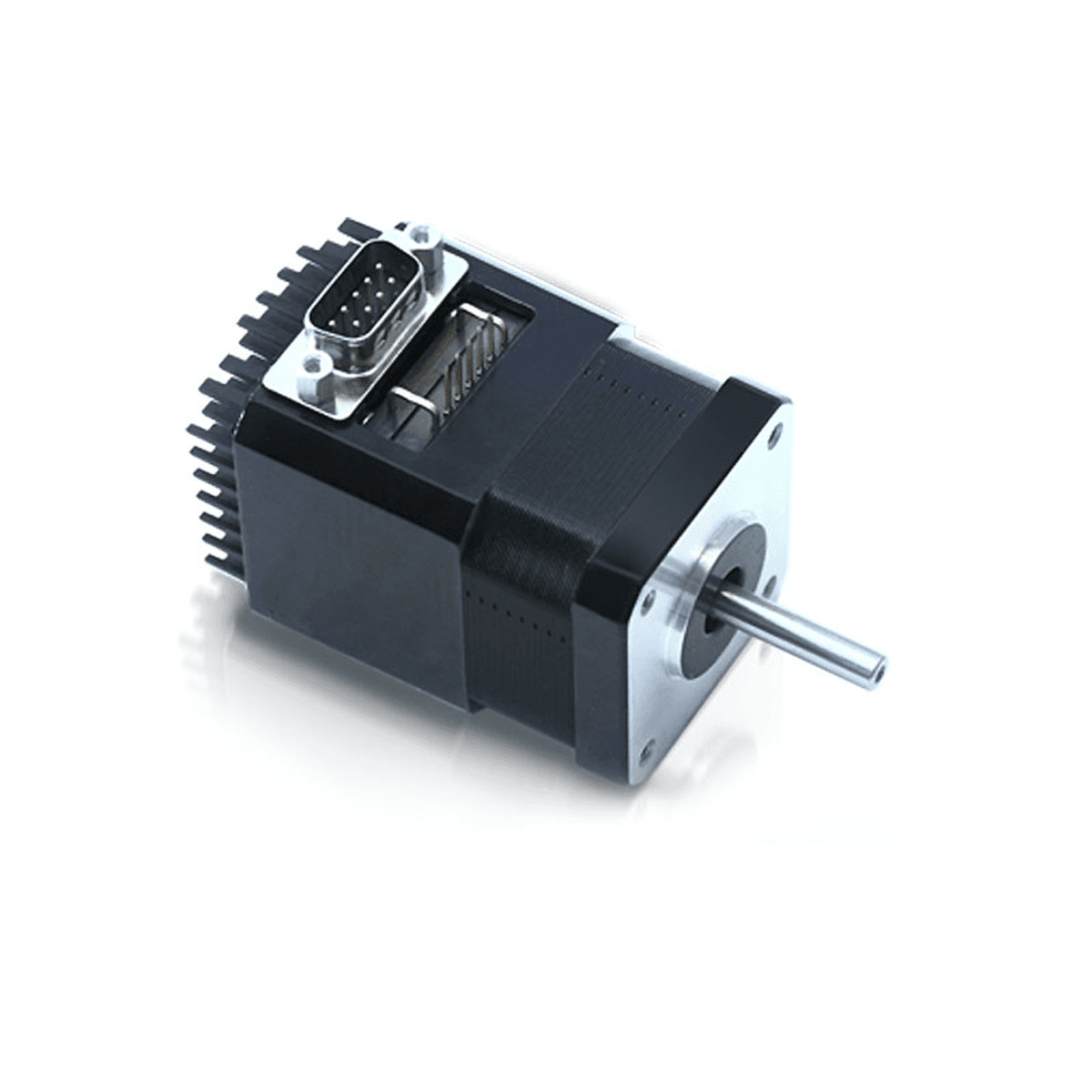

Silverpak 17DE Series
DE-4118M-03P
MOTOR + DRIVER + ENCODER

Name: DE-4118M-03P
Brand: Lin Engineering
SKU: DE-4118M-03P
Price: 50 USD
Availability: PreOrder

Quick Facts

DE-4118M-03P Series Integrated Stepper Motors

Specifications:

NEMA 17 (1.650 in) Frame Size
1.8° Step Angle
2.920 in Length
45.32 oz-in Holding Torque

Features and Benefits:

NEMA 23, 1.8º Bipolar Step Motor
Operates from +12 to 24 VDC
Up to 85 oz-in of Holding Torque
Phase current ranges from 0.25 to 2.0 Amps Peak

Motor Specifications

Part Number	DE-4118M-03P
Step Angle	1.8°
Frame Size	1.650 in
NEMA Size	NEMA 17
Body Length	2.920 in
Holding Torque	45.32 oz-in

Torque Curves

Speed

Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Notice

Due to unprecedented product demand along with the ongoing supply chain related issues with semiconductors, we are experiencing extended lead times for this product.

Please contact your account manager or sales@linengineering.com for additional information.

Options

MODEL NUMBER	HOLDING TORQUE oz-in (N-m)	ROTOR INERTIA oz-in² (kg-cm²)	WEIGHT [Motor+Driver] lbs. (gm)
DE-4118S-01	35.20 (0.25)	0.18 (0.03)	0.55 (0.25)
DE-4118M-03P	56.23 (0.40)	0.28 (0.05)	0.75 (0.34)
DE-4118L-06P	89.97 (0.64)	0.37 (0.07)	0.85 (0.39)

Dimension

Motor Front Shaft Extension Length
Standard length is 0.94”.

Motor Shaft Diameter
Standard shaft diameter is 0.1968”.

DB-9 Connector for Control (A)

Motor Front Shaft Extension Length (B)
Standard length is 0.94” (23.9mm)

Motor Shaft Diameter (C):
Standard shaft diameter is 0.1968” (5 mm)

Overall Body Length
Motor body length is available in various lengths (D):
. Model 4118S 2.69″ (6.83cm)
. Model 4118M 2.92″ (7.42cm)
. Model 4118L 3.24″ (8.23cm)

Encoder (E)

Pin Outs

PIN NUMBER	COLOR (#26 AWG Lead)	FUNCTION
1	Red	+12 TO 24 VDC
2	Black	Step Resolution
3	Brown	Step Resolution
4	Black/White	Disable
5	Orange	Direction
6	Green	Power Ground
7	White	Logic Ground
8	Blue	Opto supply
9	Yellow	Step

The DB-9 provides power and controls

Electrical Specifications

INPUT VOLTAGE: +12 to 24 VDC (Including Unregulated Power Supplies)
DRIVE CURRENT(PER PHASE): 0.35 to 2.0 Amps Peak
ISOLATED INPUTS: Step Clock, Direction, Enable & Disable
STEP FREQUENCY (MAX): 500kHz
STEPS PER REVOLUTION (1.8º MOTOR): 200, 400, 800, 1600
MICROSTEP RESOLUTIONS (1.8º MOTOR): Full, 2x, 4x, 8x

DEFAULT SETTING

FUNCTION (Command)	DESCRIPTION
Step Resolution	8x Microstep
Direction of Rotation	Counterclockwise
Holding Current	23% of motor's rated Current

Silverpak 17DE Series

Downloads

DE-4118M-03P Configured Datasheet (PDF)

Documentation

SilverPak 17DE Manual (PDF)

Download
