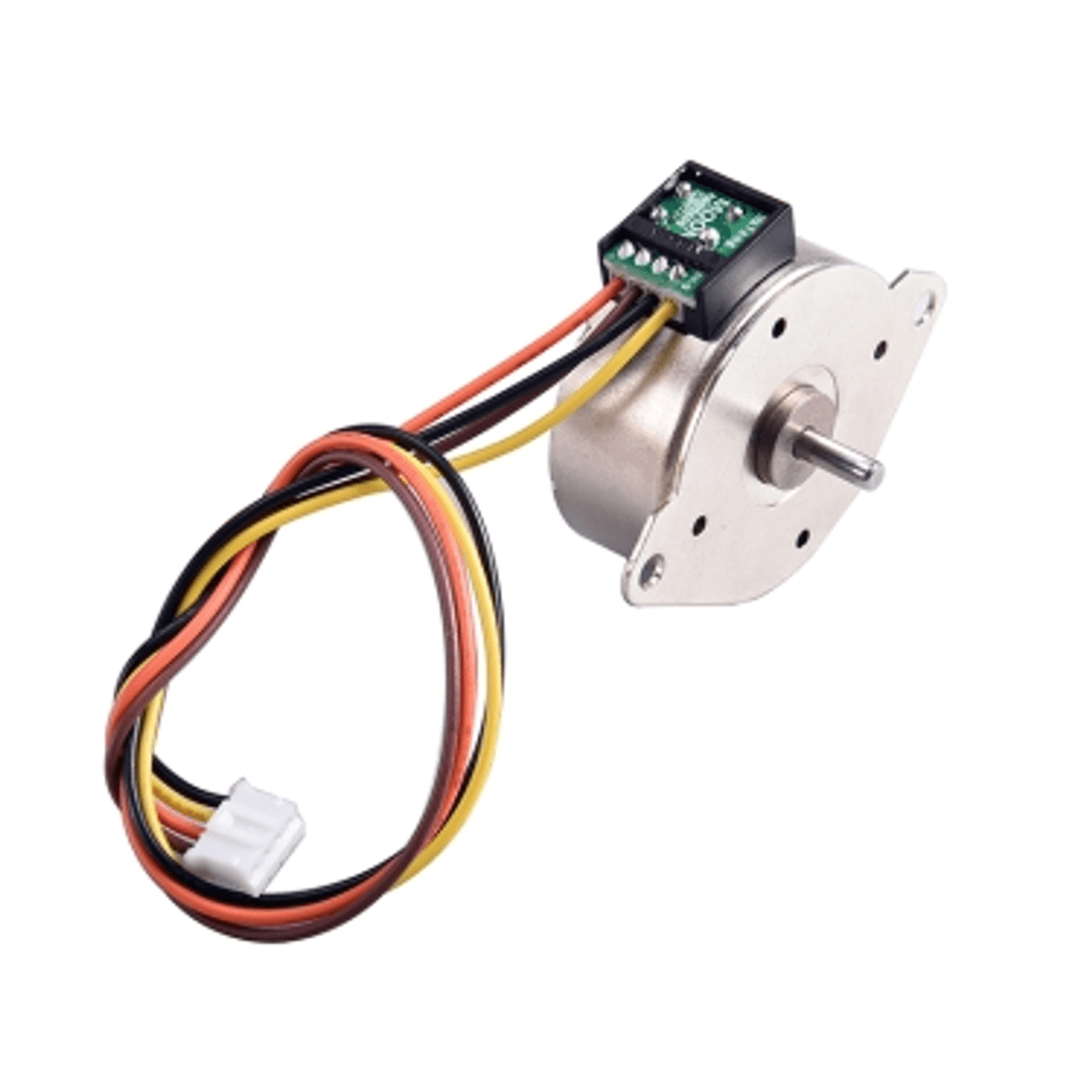

PM35 Series
Specifications:
- 1.380 in Frame Size
- 7.5° Step Angle
- 24 Rated Voltage
- 0.15 to 0.63 A/Phase
Models
| Model # | Frame size | Body length | Step Angle | Rated voltage | Rated amperage | Holding torque | Inertia, oz-in² | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|---|---|
| PM35S-075-038 | 1.380 in | 0.600 in | 7.5° | 24 VDC | 0.38 AMP/Phase | 6.39 oz-in | 0.015 oz-in² | 0.154 lbs | Online |
| PM35L-075-016 | 1.380 in | 0.840 in | 7.5° | 24 VDC | 0.16 AMP/Phase | 8.61 oz-in | 0.025 oz-in² | 0.198 lbs | Online |
| PM35S-075-060 | 1.380 in | 0.600 in | 7.5° | 24 VDC | 0.6 AMP/Phase | 6.67 oz-in | 0.015 oz-in² | 0.154 lbs | Online |
| PM35L-075-040 | 1.380 in | 0.840 in | 7.5° | 24 VDC | 0.4 AMP/Phase | 8.61 oz-in | 0.025 oz-in² | 0.198 lbs | Online |
| PM35L-075-063 | 1.380 in | 0.840 in | 7.5° | 24 VDC | 0.63 AMP/Phase | 8.61 oz-in | 0.025 oz-in² | 0.198 lbs | Online |
| PM35S-075-015 | 1.380 in | 0.600 in | 7.5° | 24 VDC | 0.15 AMP/Phase | 6.39 oz-in | 0.015 oz-in² | 0.154 lbs | Online |
Torque Curves
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| PM35S-075-038 | 0.600 in |
| PM35L-075-016 | 0.840 in |
| PM35S-075-060 | 0.600 in |
| PM35L-075-040 | 0.840 in |
| PM35L-075-063 | 0.840 in |
| PM35S-075-015 | 0.600 in |
Operating Specifications
| Radial Shaft Loading | 1.676 lbs |
| Axial Shaft Loading | 0.22 lbs |
| Radial Shaft Play | 0.002 in |
| Axial Shaft Play | 0.024 in |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
| Storage Temperature Rating | -22 °F to 158.00 °F |
| Humidity Range | 15 - 85% RH |
