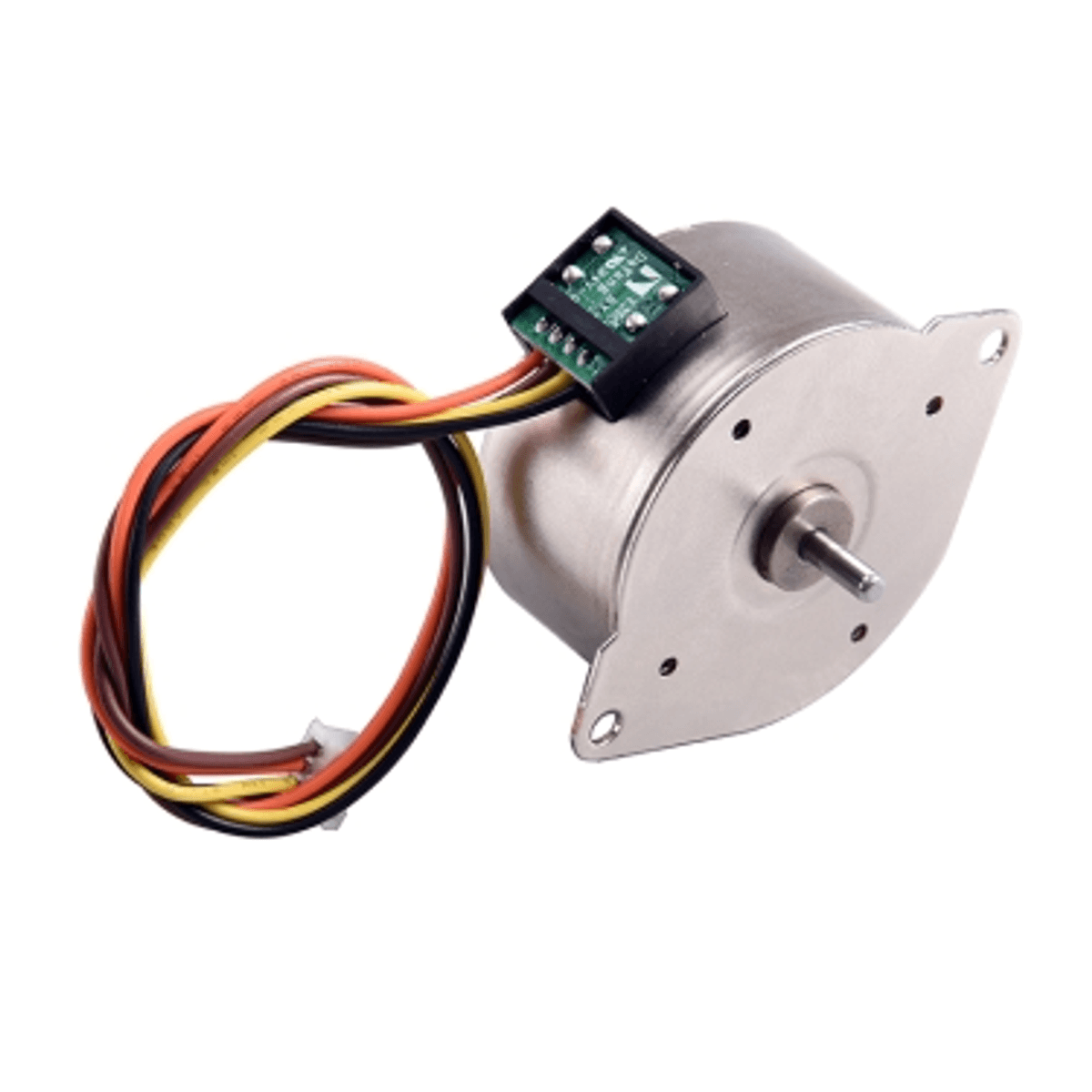

PM42 Series
Specifications:
- 1.650 in Frame Size
- 7.5° Step Angle
- 24 Rated Voltage
- 0.15 to 0.85 A/Phase
Models
| Model # | Frame size | Body length | Step Angle | Rated voltage | Rated amperage | Holding torque | Inertia, oz-in² | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|---|---|
| PM42S-075-015 | 1.650 in | 0.600 in | 7.5° | 24 VDC | 0.15 AMP/Phase | 8.89 oz-in | 0.04 oz-in² | 0.198 lbs | Online |
| PM42L-075-055 | 1.650 in | 0.840 in | 7.5° | 24 VDC | 0.55 AMP/Phase | 13.2 oz-in | 0.063 oz-in² | 0.265 lbs | Online |
| PM42L-075-020 | 1.650 in | 0.840 in | 7.5° | 24 VDC | 0.2 AMP/Phase | 14.17 oz-in | 0.063 oz-in² | 0.265 lbs | Online |
| PM42L-075-085 | 1.650 in | 0.840 in | 7.5° | 24 VDC | 0.85 AMP/Phase | 13.2 oz-in | 0.063 oz-in² | 0.265 lbs | Online |
| PM42S-075-042 | 1.650 in | 0.600 in | 7.5° | 24 VDC | 0.42 AMP/Phase | 8.89 oz-in | 0.04 oz-in² | 0.198 lbs | Online |
| PM42S-075-065 | 1.650 in | 0.600 in | 7.5° | 24 VDC | 0.65 AMP/Phase | 10.28 oz-in | 0.04 oz-in² | 0.198 lbs | Online |
Torque Curves
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| PM42S-075-015 | 0.600 in |
| PM42L-075-055 | 0.840 in |
| PM42L-075-020 | 0.840 in |
| PM42L-075-085 | 0.840 in |
| PM42S-075-042 | 0.600 in |
| PM42S-075-065 | 0.600 in |
Operating Specifications
| Radial Shaft Loading | 1.676 lbs |
| Axial Shaft Loading | 0.22 lbs |
| Radial Shaft Play | 0.002 in |
| Axial Shaft Play | 0.024 in |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
| Storage Temperature Rating | -22 °F to 158.00 °F |
| Humidity Range | 15 - 85% RH |
Downloads
PM42 3D Models (ZIP)
