Part Number

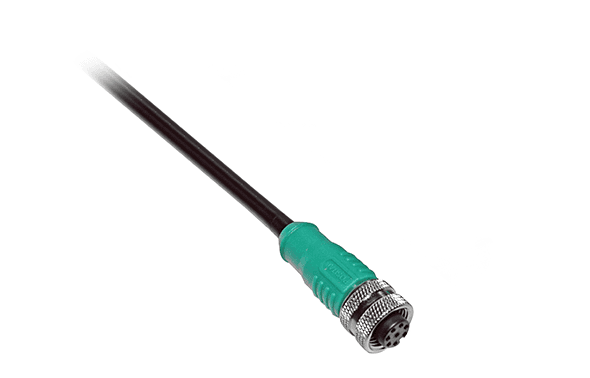

M12 8pin - A Female - 2M PUR Cable
Unit Price:
$48.75
Inventory:
10 Available in 6 Weeks
Ships:
6 Weeks
QTY
Looking For Higher Volume?
KCD Encoder Cable SERIESM12 8pin - A Female - 2M PUR CableEncoder Cable
Quick Facts
M12 8pin - A Female - 2M PUR Cable AccessoriesKCD Encoder Cable
M12 8pin - A Female - 2M PUR Cable Accessories
Features and Benefits:
- M12 Connector
- A - Standard
- Female
- 8 Pin
- 2 meter
| Characteristics of Head 1 | |
|---|---|
| Standards/Regulations | M12 Connector |
| Coding | A - Standard |
| Gender | Female |
| Number of Positions | 08 |
| Contact Surface Material | Brass (Gold Plated) |
| Housing Material | TPU (Plastic) |
| Knurls Material | Brass, Nickel Plated |
| Contact Connection Method | N.A |
| Degree of Protection | IP67 |
| Fixing Torque | 0.4 Nm (M12 Connector) |
| Cable Specifications | |
|---|---|
| Length of Cable | 2.0 m |
| Outer Sheath Type | FR-PU |
| Outer Sheath Color | Black |
| Shielding | Braided Shielding |
| Material Conductor Insulation | PP |
| Conductor Cross Section (in sqmm) | 8 x 0.25 |
| Number of Leads | 8 Leads |
| Twisted Pair | No |
| AWG Signal Line | AWG 24 |
| External Cable Diameter | 6 mm ± 0.15mm |
| Smallest Bending Radius - Fixed Installation | 30 mm |
| Smallest Bending Radius - Movable Installation | 60 mm |
| UL Style | UL 20549 |
| Insulation resistance * (per km) | ≥ 10 MΩ*km |
| Conductor Resistance * (per km) | ≤ 93.25 Ω/km |
| Certificates | UL Listed/ CE / RoHS |
| Characteristics of Head 2 | |
|---|---|
| Standards/Regulations | Cable Cut |
| General Data | |
|---|---|
| Weight | 130 g |
| Operating Temperature | -25°C (-13°F) to 80°C (176°F) |

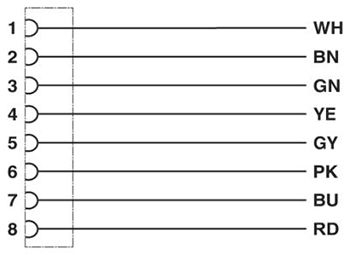

Pin Assignment
Contact Assignment

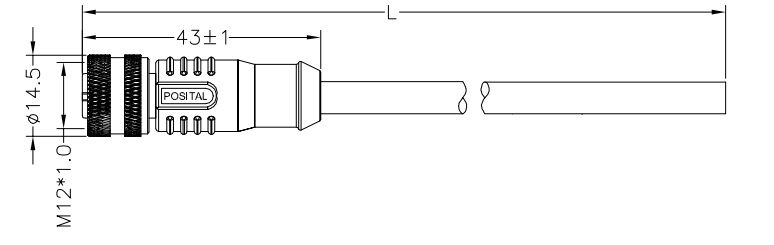

Dimensions
All dimensions in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
Downloads
M12 8pin - A Female - 2M PUR Cable Configured Datasheet (PDF)
