PW-100-48 SERIES

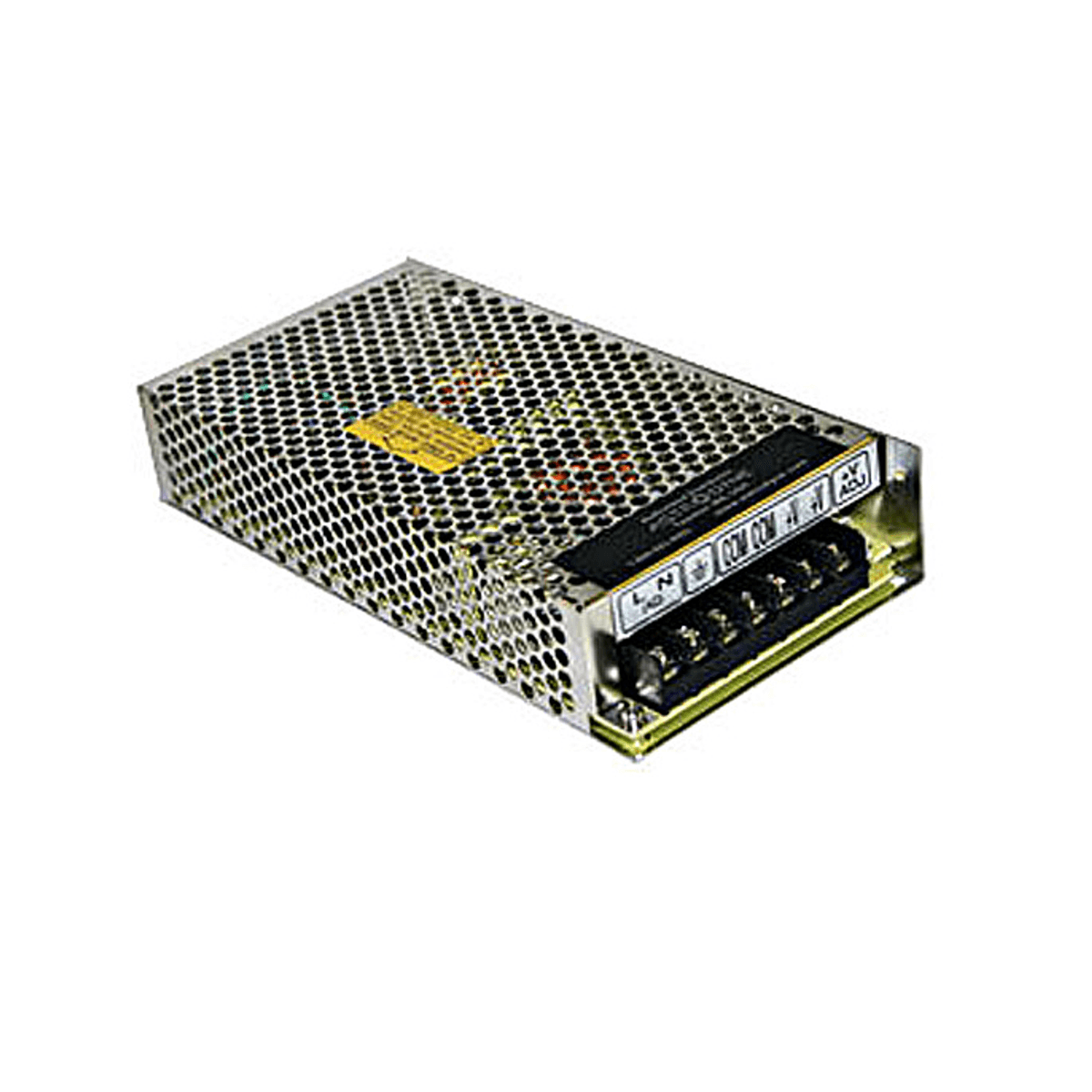

PW-100-48
Power Supply

Features

  • Universal Input
  • High Efficiency
  • Built in PFC Circuit
  • 3000 V Isolation
  • Single Outputs
MODEL NUMBEROUTPUT VOLTAGEOUTPUT CURRENT (MAX)MIN. LOAD
SINGLE OUTPUT
PW-100-4848 VDC2.25 A0A
LINENEUTRALGROUND
BlackWhiteGreen
Content image

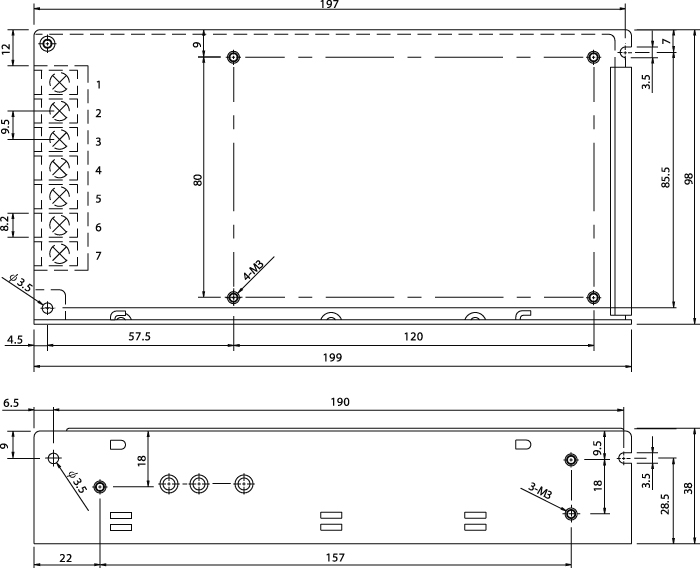

Dimension

Content image

Electrical Specifications

INPUT SPECIFICATIONS
Input Voltage Range
Input Current :

Frequency Range:
Inrush Current, typ:
Leakage Current		85-264 VAC
3.15 A/ 115 VAC
1.5A /230V
Range:47-63 Hz
Cold Start 30A/115 VAC
< =1mA/ 240 VAC
OUTPUT SPECIFICATIONS
Voltage and Current
Load Reulation (0%-FL)
Line Regulation
Voltage Tolerance
Voltage Adjustment Range
Ripple/ Noise (max)

Over Voltage Protection
Overload Protection

Setup/ Rise/ Holdup
(230 VAC)		See Selection Chart
+/- 0.5 %
+/- 0.5%
+/- 1-0%
2.16 ~ 26.4V
150mVp-p

Shutdown; Re-power on
105 ~ 150%, Constant 1 Limit
Auto Recovery
1s, 30ms at full load
GENERAL SPECIFICATIONS
Input-Out Isolation


Isolation Resistance
I/P-O/P, I/P-G O/P-G:
Efficiency (3.3 V through 48V)
Switching Frenquency
Safety
EN60950
UL1950		I/P-O/P: 300 VAC
I/P-G: 1500 VAC
O/P: 0.5KVAC

500VDC/100 Ohm
83% typ
135 Khz, (fixed, typical)

TUV File#9758434
UL# E183223
ENVIROMENTAL SPECIFICATIONS
Oper. Temperature
Storage Temperature
Relative Humidity
Vibration


EMC



MTBF		-10 ~ +60ºC
-20 to +85ºC
10% to 95%, non-cond *
10 ~ 500Hz, 2G 10min./ 1cycle,
Period for 60 min.
Each Axes
CISPR22 (EN55022)B,
EN61000-4-2,3,5,6,8,11
ENV50204
EN61000-3-2,-3
314,900 Hrs
PHYSICAL SPECIFICATIONS
Size
Contruction
Weight		3.0" x 8.7" x 1.6"
Closed Frame
Weight 19.4 oz, (550g)

Downloads

PW-100-48 Configured Datasheet (PDF)
