PW-150-48 SERIES

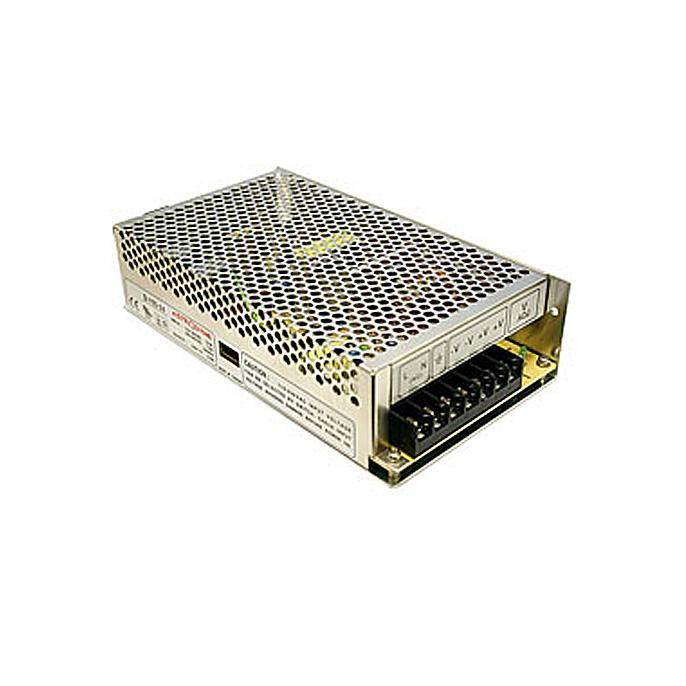

PW-150-48
Power Supply

Featured product media

Quick Facts

PW-150-48 Accessories

Features

  • Universal Input
  • High Efficiency
  • Built in PFC Circuit
  • 3000 V Isolation
  • Single Outputs
MODEL NUMBEROUTPUT VOLTAGEOUTPUT CURRENT (MAX)MIN. LOAD
SINGLE OUTPUT
PW-150-4848 VDC3.2 A0A
LINENEUTRALGROUND
BlackWhiteGreen
Content image

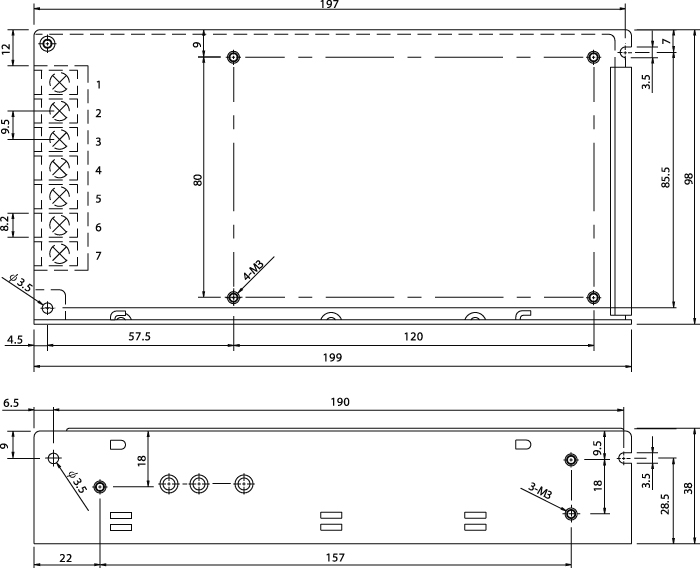

Dimension

Content image

Pin Outs

PIN NUMBERFUNCTION
1AC Line
2AC Neutral
3FG
4- Output
5- Output
6+ Output
7+ Output

Electrical Specifications

INPUT SPECIFICATIONS
Input Voltage Range
Input Current
3.3V:
Frequency Range:
Inrush Current, typ:
Leakage Current
85-264 VAC
2.2 A/ 115 V 1.1A/230V
1.5A/ 115V 0.8A/230V
47-440 Hz
Cold Start 40A/230V *
< =0.96/230V.>=0.98/115V
OUTPUT SPECIFICATIONS
Voltage and Current
Load Reulation (0%-FL)
Line Regulation
Output V. Tolerance
DC Voltage Adjust
Temperature Coefficient
Ripple/ Noise
24,27, 48 Vout
All other O/P's
Over Voltage Protection

Overload Protection

Setup/ Rise/ Holdup
(230 VAC)
See Selection Chart
+/- 0.5 to 1% Max of FS, typ
+/- 0.5%, typ
+/- 1-2%, typ
+/- 10%, -5%
+/- 0.05%/ºC (0-50ºC)

250mVp-p, typ
100Vp-p, typ
110% ~ 135% *
Shutdown; Re-power on
105 ~ 150%, Constant 1 Limit
Auto Recovery
600mS/ 30mS/ 20mS
GENERAL SPECIFICATIONS
Input-Out Isolation


Isolation Resistance
I/P-O/P, I/P-G O/P-G:
Efficiency (3.3 V through 48V)
Switching Frenquency
Safety
EN60950
UL1950
I/P-O/P: 300 VAC
I/P-G: 1500 VAC
O/P: 0.5KVAC

500VDC/100
80%, typ

135 Khz, (fixed, typical)

TUV File#9754834
UL File# E183223
ENVIROMENTAL SPECIFICATIONS
Oper. Temperature
Storage Temperature
Relative Humidity
Vibration


EMC



MTBF
-10 ~ +60ºC
-20 to +85ºC
10% to 95%, non-cond *
10 ~ 500Hz, 2G 10min./ 1cycle,
Period for 60 min.
Each Axes
CISPR22 (EN55022)B,
EN61000-4-2,3,5,6,8,11
ENV50204
EN61000-3-2,-3
MTBF 75,000 Hrs
PHYSICAL SPECIFICATIONS
Size
Contruction
Weight
3.0" x 8.7" x 1.6"
Open Frame
19.4 oz, (550g)

Downloads

PW-150-48 Configured Datasheet (PDF)
