Shielded Encoder Cable for E16 SERIESCA-DF5-SH-NCEncoder Cable
Features and Benefits:
- Shielded
- Fits E16 Encoder
- 12in Length, 5 Pins
- DF52 Connector / Unterminated
Unit Price:
$15.57
Inventory:
10 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
CA-DF5-SH-NC
Looking For Higher Volume?

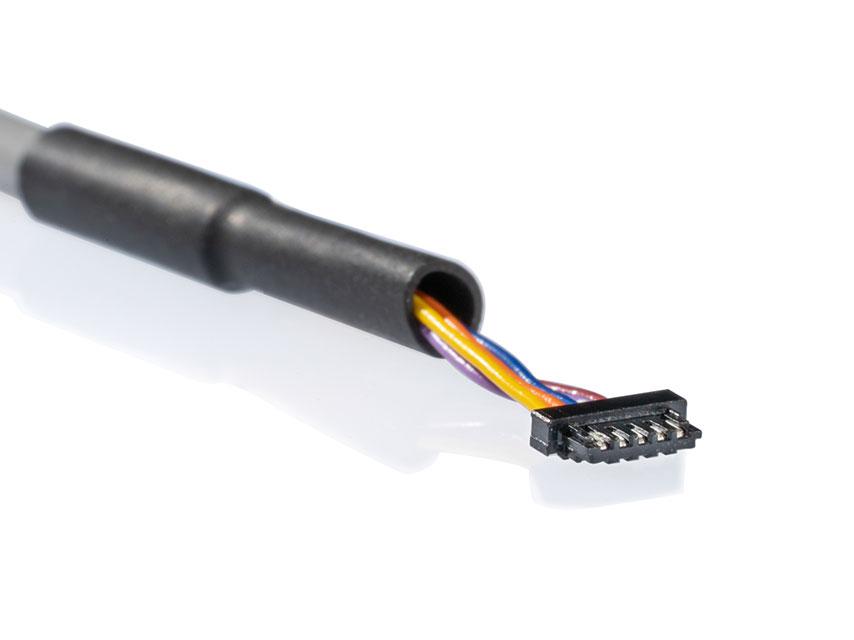

A 5-pin Hirose DF52 series, 0.8mm pitch plug connector on one end of a 5-conductor round shielded 30 AWG cable. This cable has a temperature range of -40C to 105C.
PIN-OUT
PIN | DESCRIPTION | COLOR |
---|---|---|
1 | Ground | Brown |
2 | Index | Violet |
3 | A channel | Blue |
4 | +5VDC power | Orange |
5 | B channel | Yellow |
Downloads
CA-DF5-SH-NC Configured Datasheet (PDF)
