E2 SERIES
E2

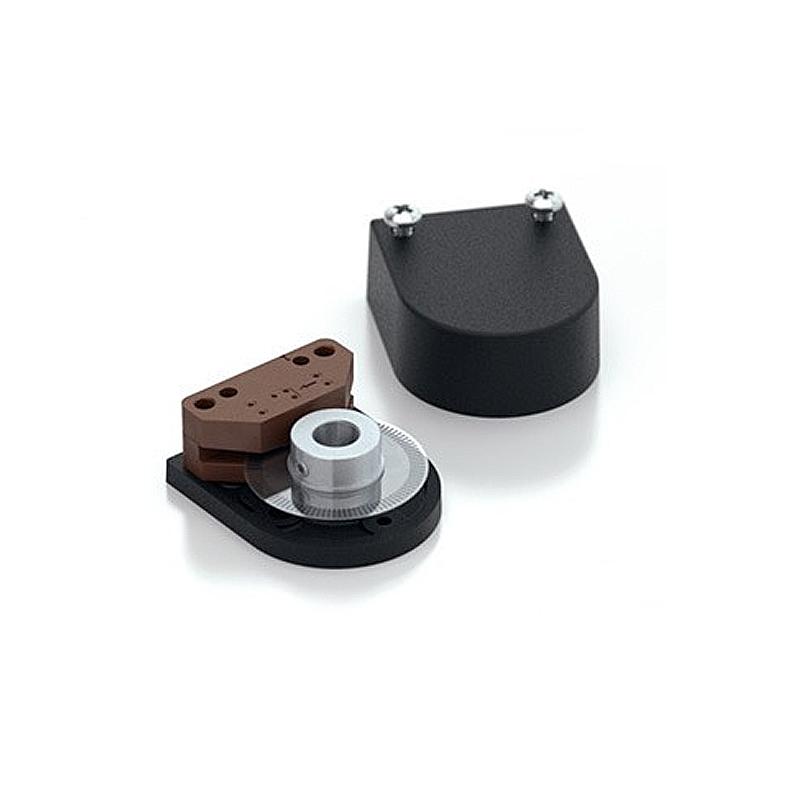

Optical Encoder

Name: E2
Brand: Lin Engineering
Price: 50 USD
Availability: PreOrder

Quick Facts

E2 Encoders

Features and Benefits:

Best for NEMA 17, 23 and 34
32 to 5,000 cycles per revolution (CPR)
Tracks from 0 to 720,000 cycles/sec (Dependent on CPR)
128 to 5,000 pulses per revolution (PPR)
2 channel quadrature TTL squarewave outputs
Optional index (3rd channel)
2 year warranty

Pin Outs

PIN	DESCRIPTION
1	Ground
2	Index
3	A Channel
4	+5 VDC Power
5	B Channel

PIN	DESCRIPTION
1	Ground
2	Index
3	A Channel
4	+5 VDC Power
5	B Channel

CYCLES PER REVOLUTION(CPR)

32	400	2048
50	500	2500
96	512	4000
100	540	4096
192	720	5000
200	900
250	1000
256	1024
360	1250
400	2000

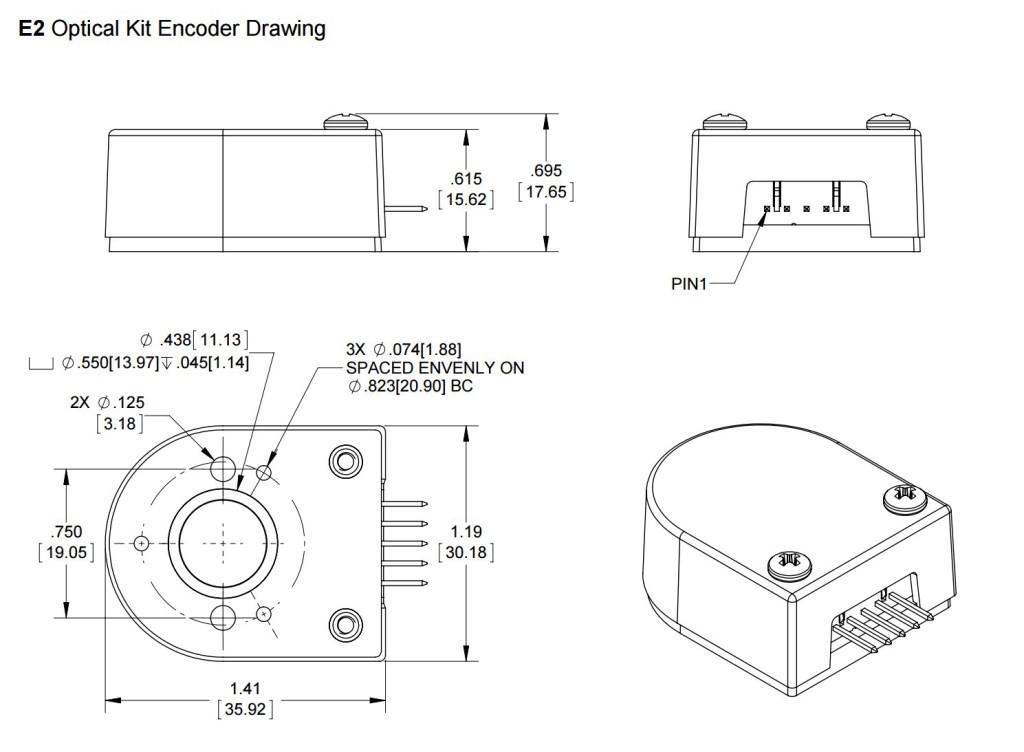

Dimension

Accessories

ACCESSORIES

5-PIN CONNECTOR Lin part # 090-00223

Downloads

E2 Configured Datasheet (PDF)
