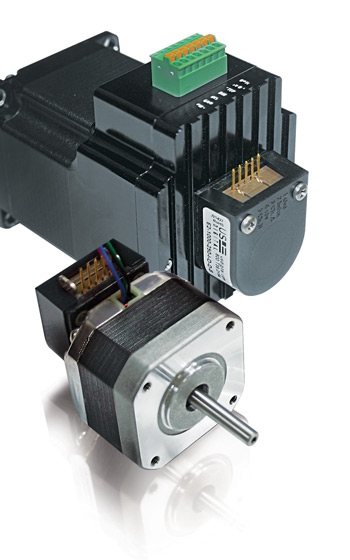

E3 SERIESE3Optical Encoder
Features and Benefits:
- Best for NEMA 23 and 34
- 64 to 10,000 cycles per revolution (CPR)
- Tracks from 0 to 720,000 cycles/sec (Dependent on CPR)
- 256 to 40,000 pulses per revolution (PPR)
- 2 channel quadrature TTL squarewave outputs
- Optional index (3rd channel)
- -40 to 100 ºC operating temperature (Operating temperature dependent on CPR)
- 2 year warranty
Pin Outs
| PIN | DESCRIPTION |
|---|---|
| 1 | Ground |
| 2 | Index |
| 3 | A Channel |
| 4 | +5 VDC Power |
| 5 | B Channel |
| CYCLES PER SECOND |
| 0 to 720,000 CPR dependent |
| CYCLES PER REVOLUTION (CPR) |
| 64 to 10,000 |
| PULSES PER REVOLUTION (PPR) |
| 256 to 40,000 |
CYCLES PER REVOLUTION(CPR)
| 64 | 3600 |
| 100 | 4000 |
| 200 | 4096 |
| 400 | 5000 |
| 500 | 7200 |
| 512 | 8000 |
| 1000 | 8192 |
| 1024 | 10000 |
| 1800 | |
| 2000 | |
| 2048 | |
| 2500 |

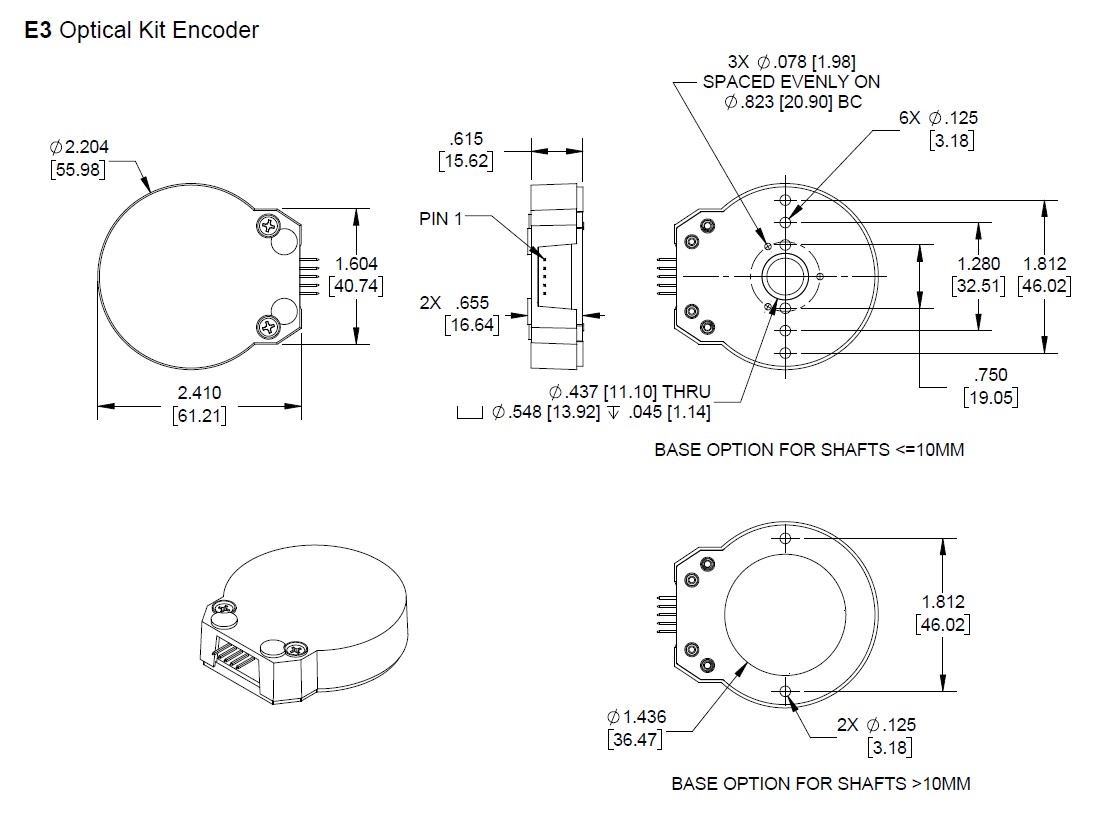

Dimension
Accessories
ACCESSORIES
5-PIN CONNECTOR
Lin part # 090-00223
RECOMMENDED
Best for size 23, and size 34
Downloads
E3 Configured Datasheet (PDF)
