E4T SERIES
E4T
Optical Encoder

Featured product media

Quick Facts

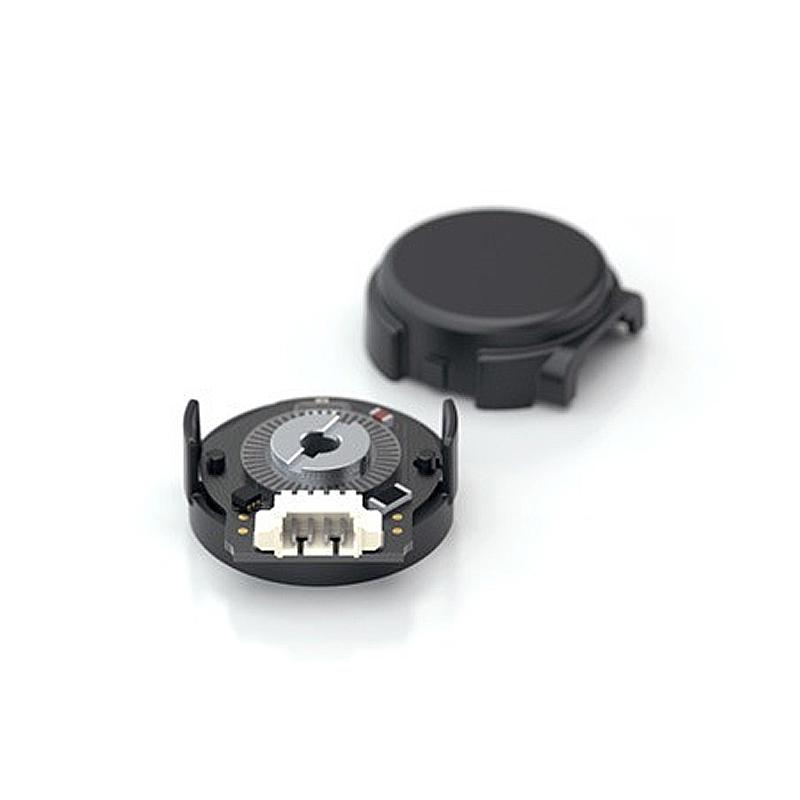

E4T Encoders

Features and Benefits:

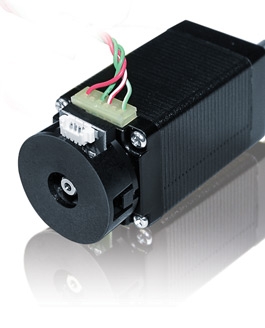

  • Compact miniature size best for NEMA 8, 11, 14, and 17.
  • 100 to 1,000 cycles per revolution (CPR)
  • Single ended or differential output options
  • High retention Snap-in polarized connector
  • Tracks from 0 to 100,000 cycles/sec
  • 400 to 4,000 pulses per revolution (PPR)
  • -20 to + 100ºC operating temperature
  • Low power strobe option available
  • 2 year warranty

Pin Outs

4-pin Single-ended

PINDESCRIPTION
1+5 VDC Power
2A Channel
3Ground
4B Channel

6-pin Differential

PINDESCRIPTION
1Ground
2A Channel
3A- Channel
4+5 VDC Power
5B Channel
6B- Channel
CYCLES PER SECOND
0 to 100,000
CYCLES PER REVOLUTION (CPR)
100 to 1,000
PULSES PER REVOLUTION (PPR)
400 to 4,000

CYCLES PER REVOLUTION(CPR)

100300
108360
120400
125500
128512
200720
250800
256100
288

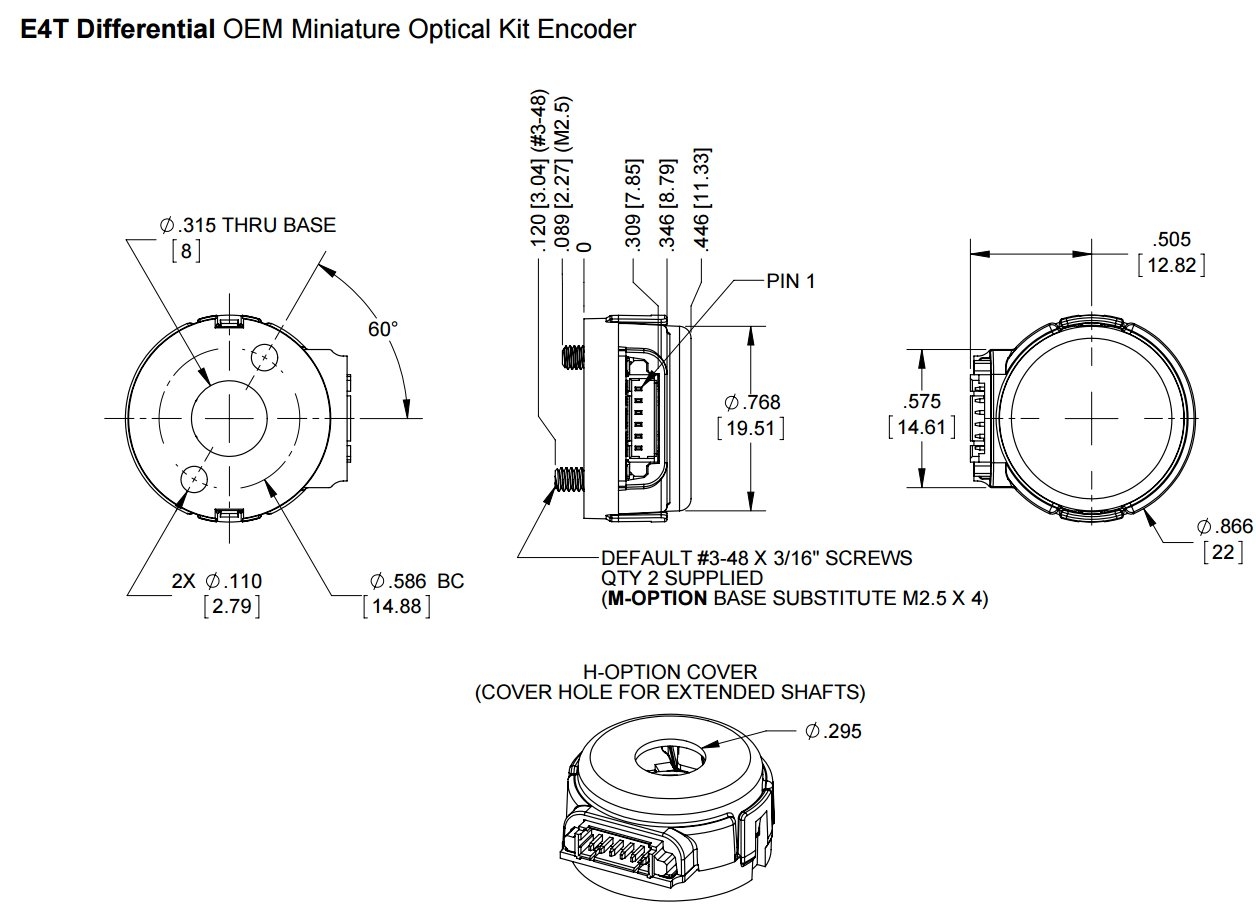

Dimension

Content image

Accessories

ACCESSORIES


Content image

4-PIN CONNECTOR
Lin part # 090-00023

RECOMMENDED

Best for size 8, 11, 14, and size 17

Content image

Downloads

E4T Configured Datasheet (PDF)
