E8T SERIES
E8T
Optical Encoder

Name: E8T
Brand: Lin Engineering
Price: 50 USD
Availability: PreOrder

Quick Facts

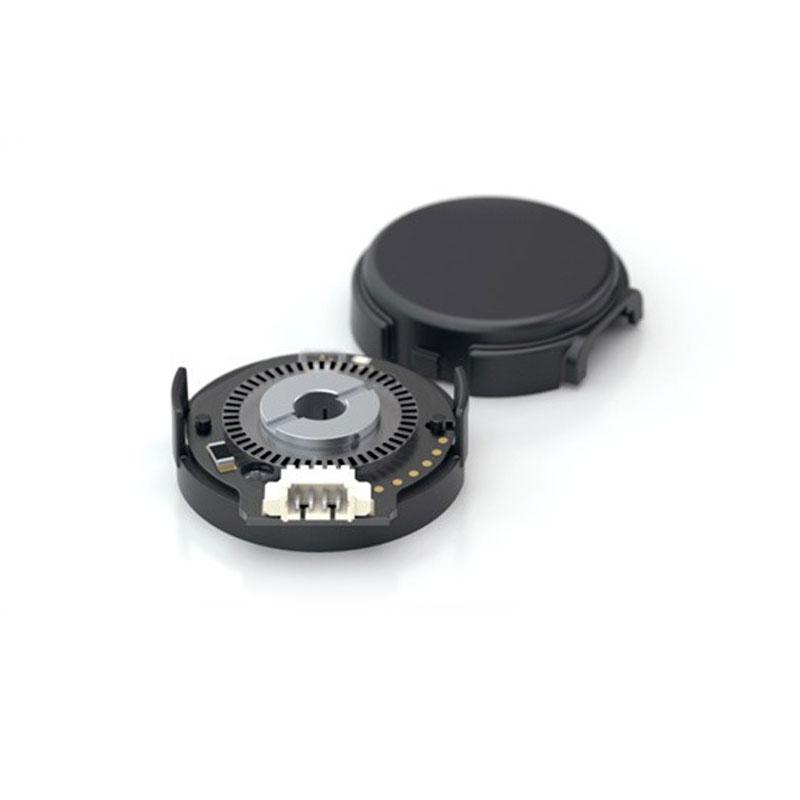

E8T Encoders

Features and Benefits:

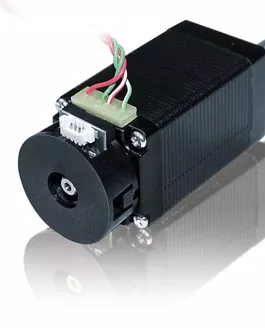

Compact miniature size best for NEMA 11, 14 and 17
180 to 720 Cycles per Revolution (CPR)
Single ended or differential output options
720 to 2,880 pulses per revolution (PPR)
Push-on hub - spring loaded collet design
Minimum shaft length of .295"
Fits shaft diameters of .118" to .375"
Single +5V supply

Pin Outs

4-PIN SINGLE ENDED

PIN	DESCRIPTION
1	+5 VDC power
2	A channel
3	Ground
4	B channel

6-PIN DIFFERENTIAL

PIN	DESCRIPTION
1	Ground
2	A+ Channel
3	A- Channel
4	+5VDC power
5	B+ Channel
6	B- Channel

CYCLES PER REVOLUTION (CPR)

180 to 720

PULSES PER REVOLUTION (PPR)

720 to 2,880

CYCLES PER REVOLUTION (CPR)

180
200
250
256
360
400
500
512
600
625
720

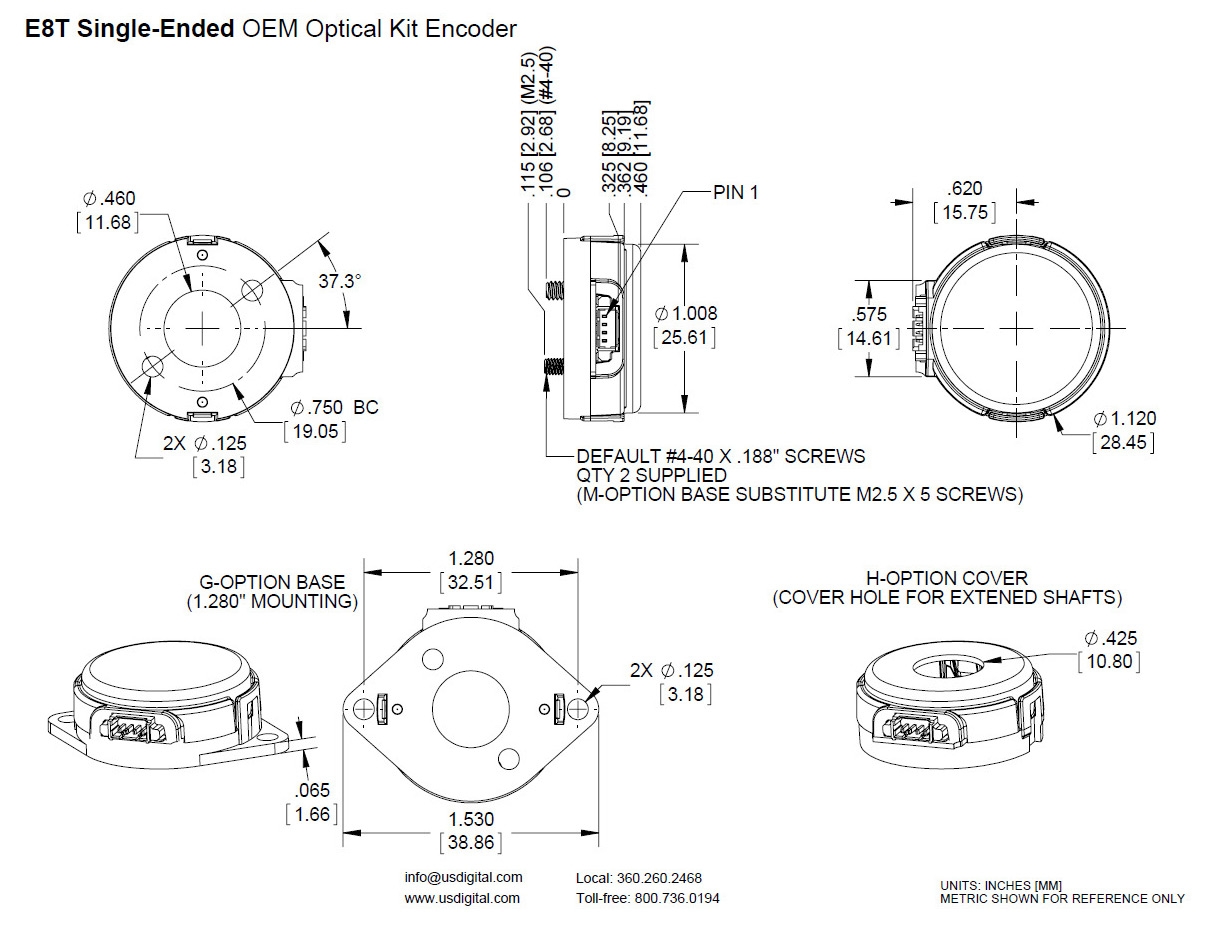

Dimension

Accessories

Downloads

E8T Configured Datasheet (PDF)
