CL008CN017 Series

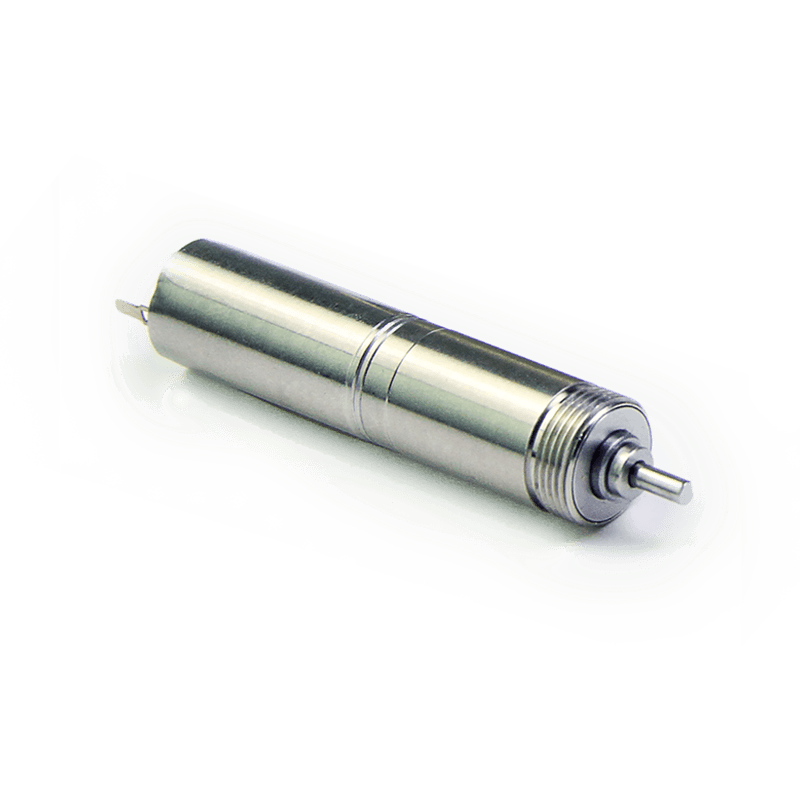

CL008CN017-06-G16
Coreless Brushed DC motor

Featured product media

Quick Facts

CL008CN017-06-G16 Coreless DC Motors

Specifications:
  • 0.310 in Frame Size
  • 0.165 A Rated Current
  • 0.9205 oz-in Rated Torque
  • 6 VDC Nominal Voltage
  • 1.110 in Length

Specifications

Motor Specifications

Frame Size0.310 in
Motor TypeMotor + Gearhead
Weight0.017 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage6 VDC
No Load Speed 845 RPM
No Load Current39.2 mA
Nominal Speed206 RPM
Nominal Torque (Max Cont. Torque)0.9205 oz-in
Nominal Current (Max Cont. Current)0.165 A
Rated Speed206 RPM
Rated Torque0.9205 oz-in
Rated Current0.165 A
Stall Current0.21 A
Max. Efficiency81%

Motor Characteristics

Terminal Resistance28 ohm
Terminal Inductance0.206 mH
Speed/Torque Gradient 2411.6512 RPM/oz-in
Speed Constant2410 RPM/V
Mechanical Time Constant6.6 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Axial play0.006 in
Radial play0.003
Max Speed (Mechanical)18000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 149.00 °F
Max winding temperature212.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)127.04 °F/W
Thermal resistance (Winding-Housing)79.52 °F/W
Thermal time constant motor21 s
Thermal time constant winding2.37 s

Gearhead Specifications

Number Of Stages2

Dimensions

ModelDIM. A (length) in MAX
CL008CN017-06-G161.110 in

Performance Curve

CL008CN017 Series

Downloads

CL008CN017-06-G16 Configured Datasheet (PDF)
