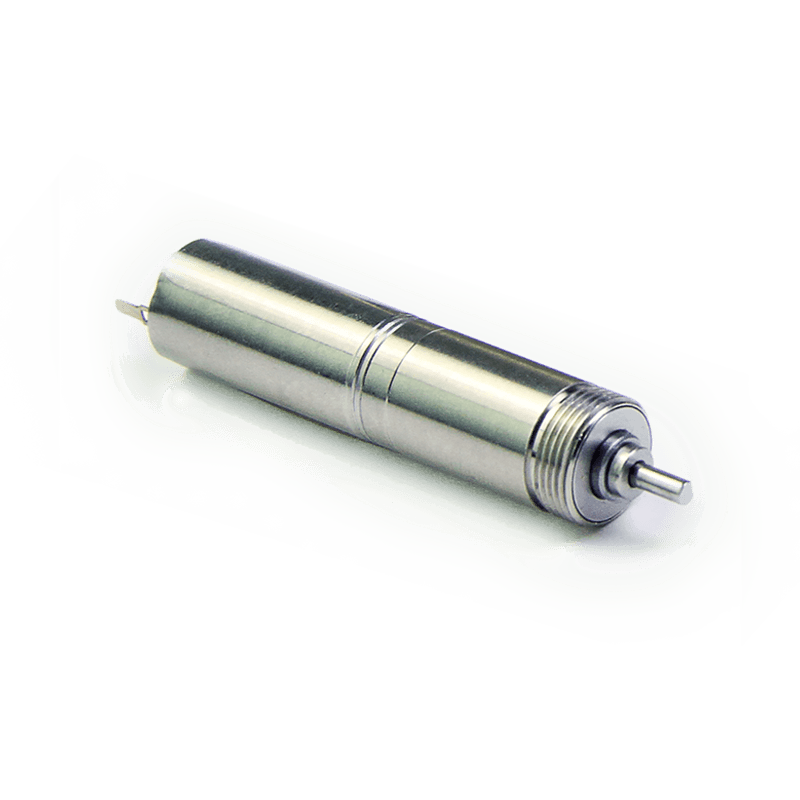

CL008CN017 SeriesCoreless Brushed DC motor
Specifications:
- 0.310 in Frame Size
- 0.092 to 0.165 A Rated Current
- 0.9205 to 11.329 oz-in Rated Torque
- 6 to 12 VDC Nominal Voltage
- 1.11 to 1.31 in Length
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CL008CN017-06-G16 | 0.310 in | 1.110 in | 6 VDC | 206 RPM | 0.9205 oz-in | 845 RPM | 39.2 mA | 16:1 | 0.017 lbs | 0.165 A | Online |
| CL008CN017-06-G256 | 0.310 in | 1.310 in | 6 VDC | 13 RPM | 10.5076 oz-in | 53 RPM | 58.8 mA | 256:1 | 0.02 lbs | 0.165 A | Online |
| CL008CN017-06-G64 | 0.310 in | 1.210 in | 6 VDC | 52 RPM | 2.988 oz-in | 211 RPM | 39.2 mA | 64:1 | 0.019 lbs | 0.165 A | Online |
| CL008CN017-12-G16 | 0.310 in | 1.110 in | 12 VDC | 337 RPM | 0.9205 oz-in | 997 RPM | 30.8 mA | 16:1 | 0.017 lbs | 0.093 A | Online |
| CL008CN017-12-G256 | 0.310 in | 1.310 in | 12 VDC | 22 RPM | 11.329 oz-in | 62 RPM | 20 mA | 256:1 | 0.02 lbs | 0.092 A | Online |
| CL008CN017-12-G64 | 0.310 in | 1.210 in | 12 VDC | 92 RPM | 2.988 oz-in | 249 RPM | 30.8 mA | 64:1 | 0.019 lbs | 0.093 A | Online |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL008CN017-06-G16 | 1.110 in |
| CL008CN017-06-G256 | 1.310 in |
| CL008CN017-06-G64 | 1.210 in |
| CL008CN017-12-G16 | 1.110 in |
| CL008CN017-12-G256 | 1.310 in |
| CL008CN017-12-G64 | 1.210 in |
