CL008CN017 Series

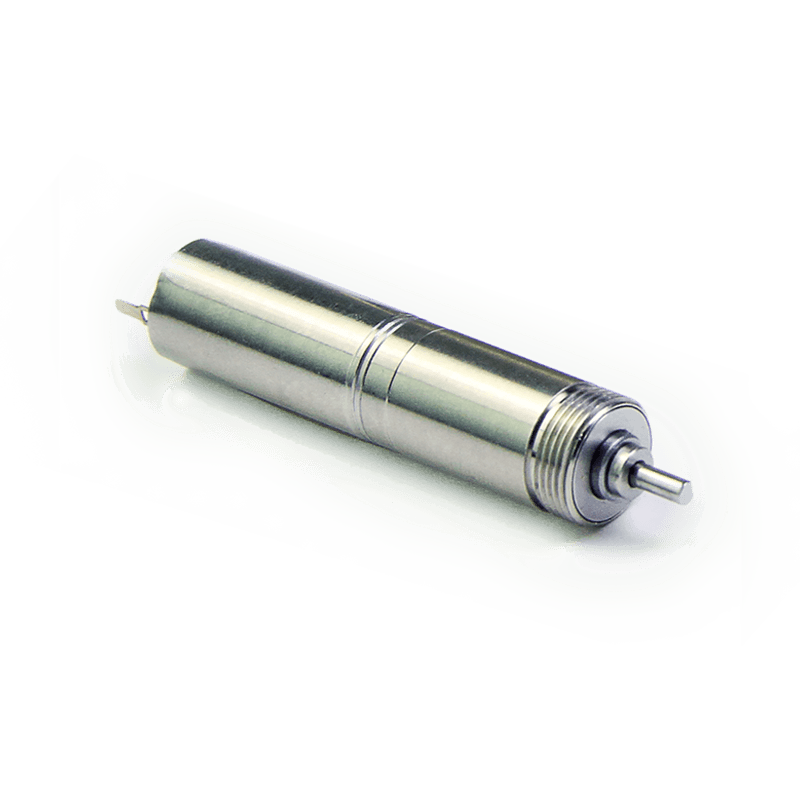

CL008CN017-12-G256
Coreless Brushed DC motor

Featured product media

Quick Facts

CL008CN017-12-G256 Coreless DC Motors

Specifications:
  • 0.310 in Frame Size
  • 0.092 A Rated Current
  • 11.329 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.310 in Length

Specifications

Motor Specifications

Frame Size0.310 in
Motor TypeMotor + Gearhead
Weight0.02 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 62 RPM
No Load Current20 mA
Nominal Speed22 RPM
Nominal Torque (Max Cont. Torque)11.329 oz-in
Nominal Current (Max Cont. Current)0.092 A
Rated Speed22 RPM
Rated Torque11.329 oz-in
Rated Current0.092 A
Stall Current0.14 A
Max. Efficiency58%

Motor Characteristics

Terminal Resistance87 ohm
Terminal Inductance0.606 mH
Speed/Torque Gradient 2492.7948 RPM/oz-in
Speed Constant1390 RPM/V
Mechanical Time Constant6.82 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Axial play0.006 in
Radial play0.003
Max Speed (Mechanical)18000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 149.00 °F
Max winding temperature212.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)127.04 °F/W
Thermal resistance (Winding-Housing)79.52 °F/W
Thermal time constant motor21 s
Thermal time constant winding2.37 s

Gearhead Specifications

Number Of Stages4

Dimensions

ModelDIM. A (length) in MAX
CL008CN017-12-G2561.310 in

Performance Curve

CL008CN017 Series

Downloads

CL008CN017-12-G256 Configured Datasheet (PDF)
