CL008CN017 Series

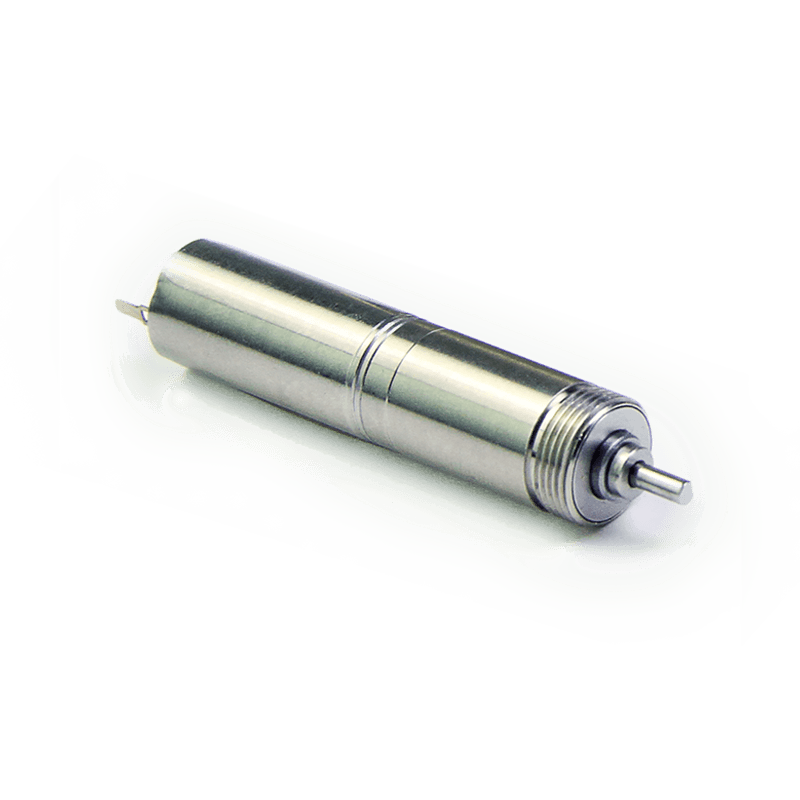

CL008CN017-12-G64
Coreless Brushed DC motor

Name: CL008CN017-12-G64
Brand: Lin Engineering
SKU: CL008CN017-12-G64
Price: 223 USD
Availability: PreOrder

Quick Facts

CL008CN017-12-G64 Coreless DC Motors

Specifications:

0.310 in Frame Size
0.093 A Rated Current
2.988 oz-in Rated Torque
12 VDC Nominal Voltage
1.210 in Length

Specifications

Motor Specifications

Frame Size	0.310 in
Motor Type	Motor + Gearhead
Weight	0.019 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	12 VDC
No Load Speed	249 RPM
No Load Current	30.8 mA
Nominal Speed	92 RPM
Nominal Torque (Max Cont. Torque)	2.988 oz-in
Nominal Current (Max Cont. Current)	0.093 A
Rated Speed	92 RPM
Rated Torque	2.988 oz-in
Rated Current	0.093 A
Stall Current	0.14 A
Max. Efficiency	64%

Motor Characteristics

Terminal Resistance	87 ohm
Terminal Inductance	0.606 mH
Speed/Torque Gradient	2492.7948 RPM/oz-in
Speed Constant	1390 RPM/V
Mechanical Time Constant	6.82 ms
Rotor Inertia	0 oz-in²

Motor Mechanical Data

Axial play	0.006 in
Radial play	0.003
Max Speed (Mechanical)	18000 RPM

Motor Thermal Data

Ambient Temperature	-4 °F to 149.00 °F
Max winding temperature	212.00 °F
Max winding temperature	212.00 °F
Thermal resistance (Housing-Ambient)	127.04 °F/W
Thermal resistance (Winding-Housing)	79.52 °F/W
Thermal time constant motor	21 s
Thermal time constant winding	2.37 s

Gearhead Specifications

Number Of Stages

Dimensions

Model	DIM. A (length) in MAX
CL008CN017-12-G64	1.210 in

Performance Curve

CL008CN017 Series

Downloads

CL008CN017-12-G64 Configured Datasheet (PDF)
