CL013CN028 Series

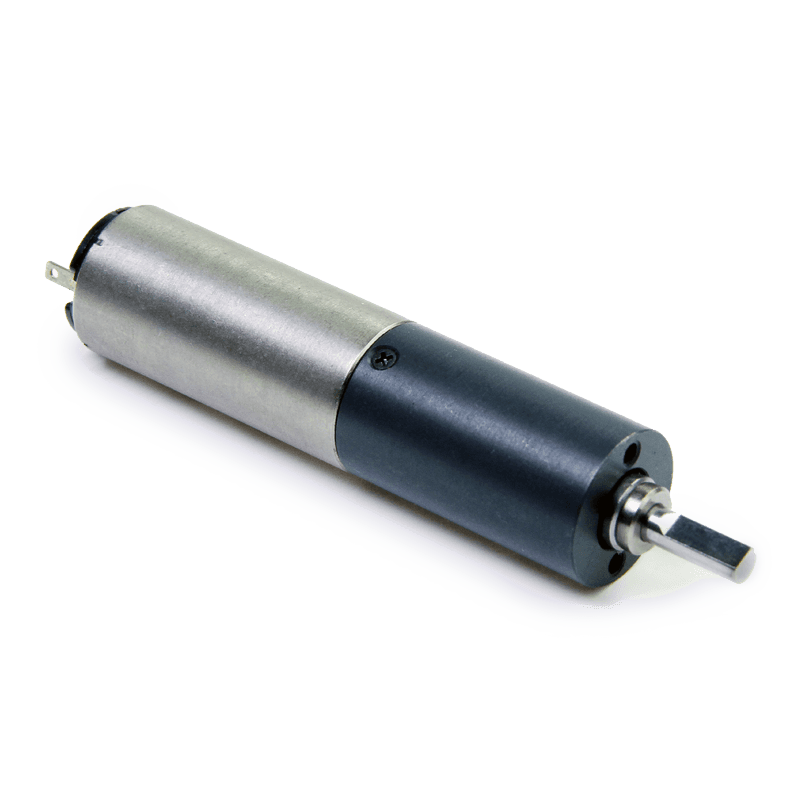

CL013CN028-12-G271
Coreless Brushed DC motor

Featured product media

Quick Facts

CL013CN028-12-G271 Coreless DC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.217 A Rated Current
  • 42.4836 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 2.170 in Length

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor + Gearhead
Weight0.087 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 43 RPM
No Load Current50.4 mA
Nominal Speed35 RPM
Nominal Torque (Max Cont. Torque)42.4836 oz-in
Nominal Current (Max Cont. Current)0.217 A
Rated Speed35 RPM
Rated Torque42.4836 oz-in
Rated Current0.217 A
Stall Current1.15 A
Max. Efficiency66%

Motor Characteristics

Terminal Resistance10.4 ohm
Terminal Inductance0.253 mH
Speed/Torque Gradient 153.3657 RPM/oz-in
Speed Constant990 RPM/V
Mechanical Time Constant4.5 ms
Rotor Inertia0.002 oz-in²

Motor Mechanical Data

Axial play0.010 in
Radial play0.004
Max Speed (Mechanical)13000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 149.00 °F
Max winding temperature212.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)97.34 °F/W
Thermal resistance (Winding-Housing)47.12 °F/W
Thermal time constant motor229 s
Thermal time constant winding3.9 s

Gearhead Specifications

Number Of Stages4

Dimensions

ModelDIM. A (length) in MAX
CL013CN028-12-G2712.170 in

Performance Curve

CL013CN028 Series

Downloads

CL013CN028-12-G271 Configured Datasheet (PDF)
