CL013CN028 Series

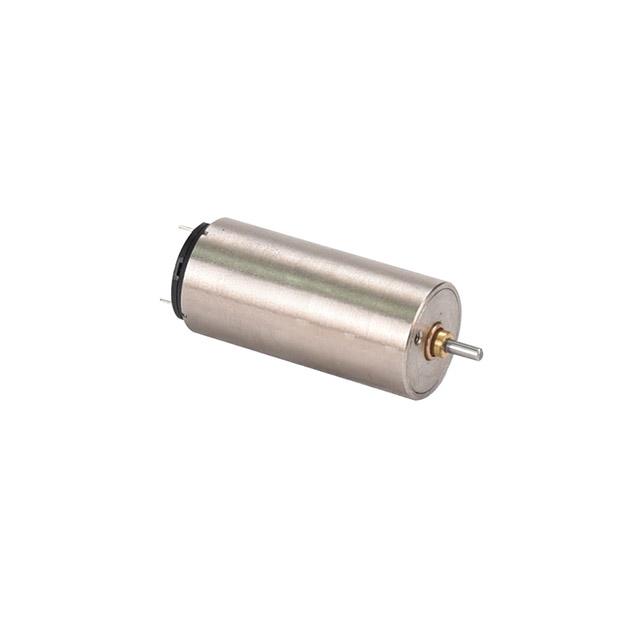

CL013CN028-24
Coreless Brushed DC motor

Featured product media

Quick Facts

CL013CN028-24 Coreless DC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.14 A Rated Current
  • 0.3654 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.110 in Length

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor Only (No Gearbox)
Weight0.046 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 11700 RPM
No Load Current12 mA
Nominal Speed8900 RPM
Nominal Torque (Max Cont. Torque)0.3654 oz-in
Nominal Current (Max Cont. Current)0.14 A
Rated Speed8900 RPM
Rated Torque0.3654 oz-in
Rated Current0.14 A
Stall Current0.57 A
Max. Efficiency78%

Motor Characteristics

Terminal Resistance42.2 ohm
Terminal Inductance1.03 mH
Speed/Torque Gradient 154.7818 RPM/oz-in
Speed Constant495 RPM/V
Mechanical Time Constant4.79 ms
Rotor Inertia0.002 oz-in²

Motor Mechanical Data

Axial play0.012 in
Max Speed (Mechanical)13000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 149.00 °F
Max winding temperature212.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)97.34 °F/W
Thermal resistance (Winding-Housing)47.12 °F/W
Thermal time constant motor229 s
Thermal time constant winding3.9 s

Dimensions

ModelDIM. A (length) in MAX
CL013CN028-241.110 in

Performance Curve

CL013CN028 Series

Downloads

CL013CN028-24 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
