CL017CN035 Series
CL017CN035-12
Coreless Brushed DC motor

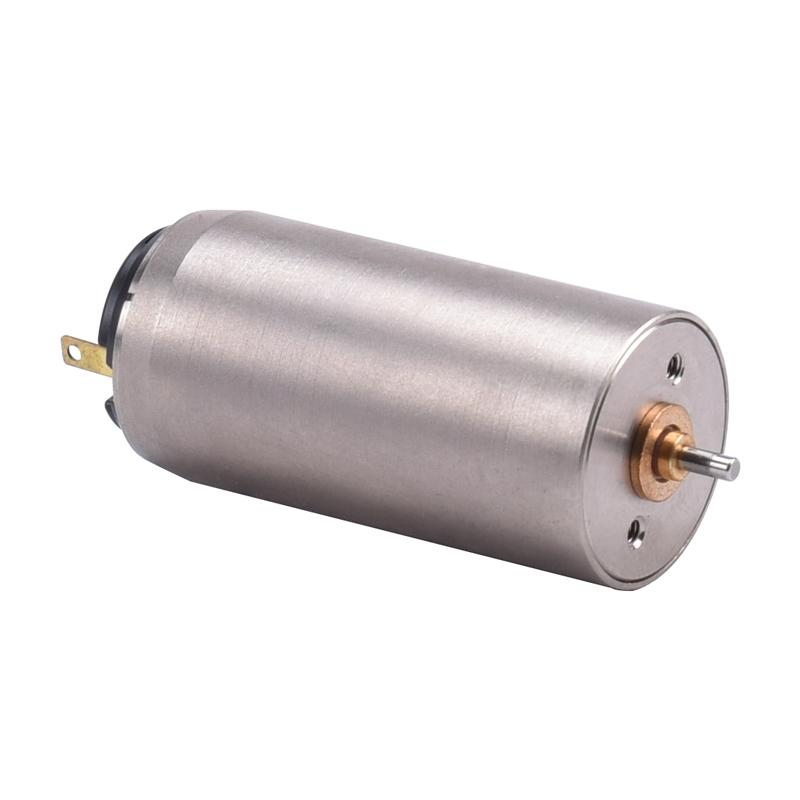

Featured product media

Quick Facts

CL017CN035-12 Series Coreless DC Motors

Specifications:
  • 0.670 in Frame Size
  • 0.65 A Rated Current
  • 1.0267 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.380 in Length

Specifications

Motor Specifications

Frame Size0.670 in
Motor TypeMotor Only (No Gearbox)
Weight0.09 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 9900 RPM
No Load Current29.6 mA
Nominal Speed7130 RPM
Nominal Torque (Max Cont. Torque)1.0267 oz-in
Nominal Current (Max Cont. Current)0.65 A
Rated Speed7130 RPM
Rated Torque1.0267 oz-in
Rated Current0.65 A
Stall Current2.27 A
Max. Efficiency83%

Motor Characteristics

Terminal Resistance5.3 ohm
Terminal Inductance0.166 mH
Speed/Torque Gradient 54.0958 RPM/oz-in
Speed Constant830 RPM/V
Mechanical Time Constant4.36 ms
Rotor Inertia0.006 oz-in²

Motor Mechanical Data

Axial play0.012 in
Max Speed (Mechanical)12000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 185.00 °F
Max winding temperature257.00 °F
Max winding temperature257.00 °F
Thermal resistance (Housing-Ambient)70.34 °F/W
Thermal resistance (Winding-Housing)52.88 °F/W
Thermal time constant motor504 s
Thermal time constant winding10.96 s

Dimensions

ModelDIM. A (length) in
CL017CN035-121.380 in

Performance Curve

CL017CN035 Series

Downloads

CL017CN035-12 Configured Datasheet (PDF)
