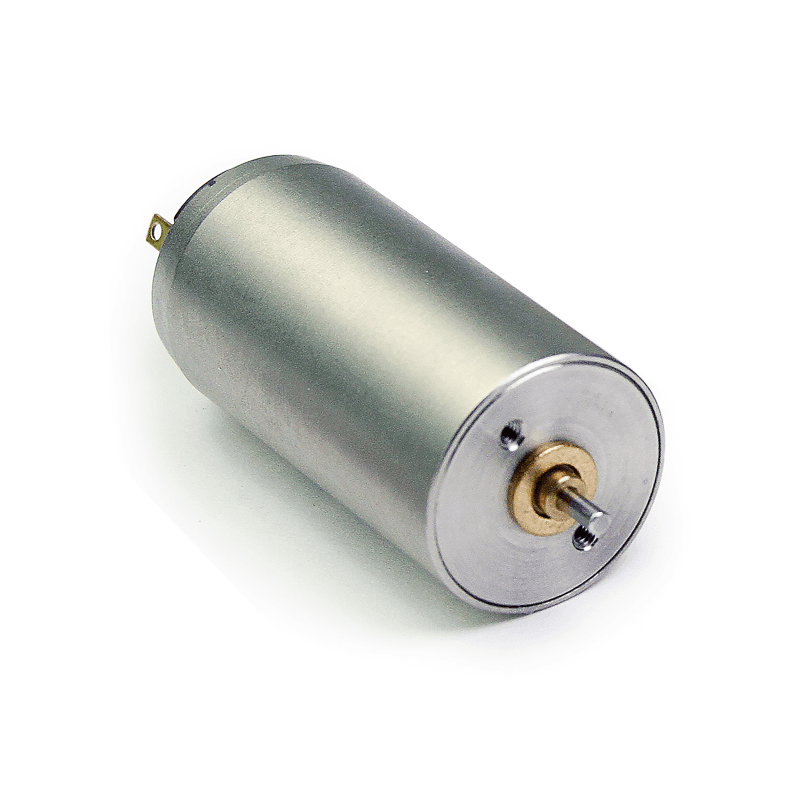

CL017CN035 SeriesCL017CN035-12-G84Coreless Brushed DC motor
Specifications:
- 0.670 in Frame Size
- 0.608 A Rated Current
- 56.6448 oz-in Rated Torque
- 12 VDC Nominal Voltage
- 2.240 in Length
Unit Price:
$166.00
Inventory:
0 Available
Part Number:
CL017CN035-12-G84
Looking For Higher Volume?
Specifications
Motor Specifications
| Frame Size | 0.670 in |
| Motor Type | Motor + Gearhead |
| Weight | 0.141 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 12 VDC |
| No Load Speed | 118 RPM |
| No Load Current | 62.1 mA |
| Nominal Speed | 83 RPM |
| Nominal Torque (Max Cont. Torque) | 56.6448 oz-in |
| Nominal Current (Max Cont. Current) | 0.608 A |
| Rated Speed | 83 RPM |
| Rated Torque | 56.6448 oz-in |
| Rated Current | 0.608 A |
| Stall Current | 2.26 A |
| Max. Efficiency | 73% |
Motor Characteristics
| Terminal Resistance | 5.3 ohm |
| Terminal Inductance | 0.166 mH |
| Speed/Torque Gradient | 54.0958 RPM/oz-in |
| Speed Constant | 830 RPM/V |
| Mechanical Time Constant | 4.36 ms |
| Rotor Inertia | 0.006 oz-in² |
Motor Mechanical Data
| Axial play | 0.010 in |
| Radial play | 0.004 |
| Max Speed (Mechanical) | 12000 RPM |
Motor Thermal Data
| Ambient Temperature | -4 °F to 149.00 °F |
| Max winding temperature | 257.00 °F |
| Max winding temperature | 257.00 °F |
| Thermal resistance (Housing-Ambient) | 70.34 °F/W |
| Thermal resistance (Winding-Housing) | 52.88 °F/W |
| Thermal time constant motor | 504 s |
| Thermal time constant winding | 10.96 s |
Gearhead Specifications
| Number Of Stages | 3 |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL017CN035-12-G84 | 2.240 in |
Performance Curve
CL017CN035 Series
Downloads
CL017CN035-12-G84 Configured Datasheet (PDF)
