CL017CN035 Series

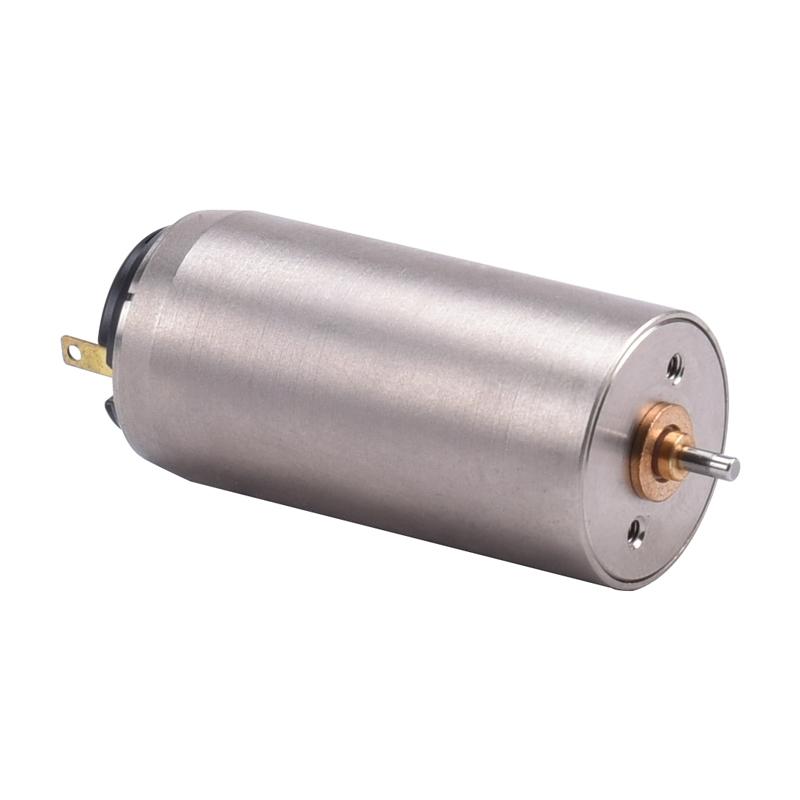

CL017CN035-24
Coreless Brushed DC motor

Featured product media

Quick Facts

CL017CN035-24 Coreless DC Motors

Specifications:
  • 0.670 in Frame Size
  • 0.421 A Rated Current
  • 1.0932 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.380 in Length

Specifications

Motor Specifications

Frame Size0.670 in
Motor TypeMotor Only (No Gearbox)
Weight0.09 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 11500 RPM
No Load Current37.1 mA
Nominal Speed9050 RPM
Nominal Torque (Max Cont. Torque)1.0932 oz-in
Nominal Current (Max Cont. Current)0.421 A
Rated Speed9050 RPM
Rated Torque1.0932 oz-in
Rated Current0.421 A
Stall Current1.9 A
Max. Efficiency79%

Motor Characteristics

Terminal Resistance12.6 ohm
Terminal Inductance0.453 mH
Speed/Torque Gradient 44.891 RPM/oz-in
Speed Constant490 RPM/V
Mechanical Time Constant3.78 ms
Rotor Inertia0.006 oz-in²

Motor Mechanical Data

Axial play0.012 in
Max Speed (Mechanical)12000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 185.00 °F
Max winding temperature257.00 °F
Max winding temperature257.00 °F
Thermal resistance (Housing-Ambient)70.34 °F/W
Thermal resistance (Winding-Housing)52.88 °F/W
Thermal time constant motor504 s
Thermal time constant winding10.96 s

Dimensions

ModelDIM. A (length) in MAX
CL017CN035-241.380 in

Performance Curve

CL017CN035 Series

Downloads

CL017CN035-24 Configured Datasheet (PDF)
