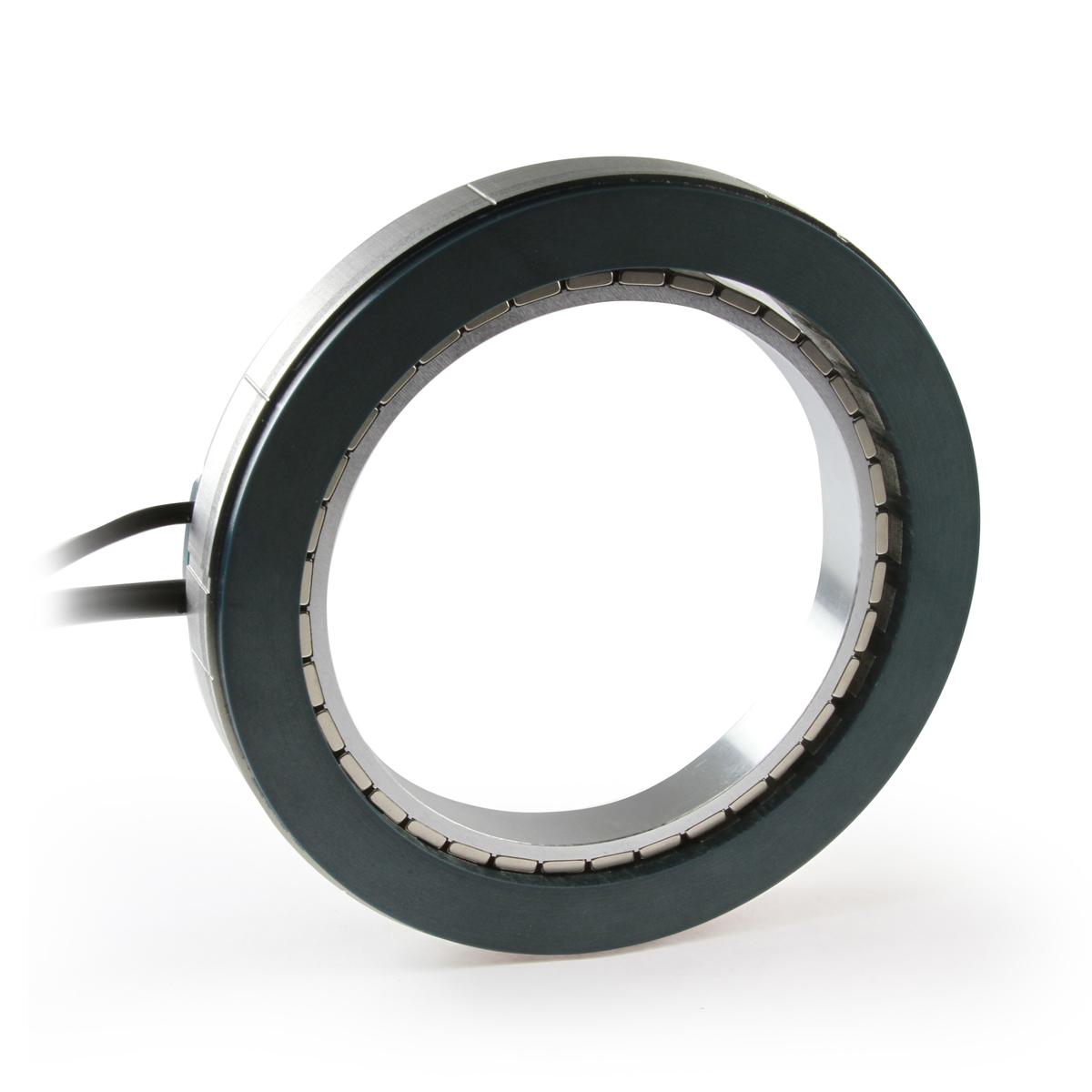

XCT160 Series
160mm Frameless BLDC Motor

Features and Benefits:
  • High torque to weight ratio
  • Compact & lightweight
  • Hall sensor and thermistor available
Specifications:
  • 6.300 in Frame Size
  • 4.29 to 13 A Rated Current
  • 444.66 to 1755.99 oz-in Rated Torque
  • 48 to 325 VDC Rated Voltage
  • 0.31 to 1.1 in Length

Models

Model #Frame sizeInput VoltageRated PowerRated SpeedRated TorqueRated CurrentWeight, lbsAvailability
XC-T160CN008-325A6.300 in325 VDC1053 W3204 RPM444.66 oz-in4.29 A1.499 lbsQuote
XC-T160CN016-325A6.300 in325 VDC1220 W1591 RPM1036.6 oz-in4.4 A2.522 lbsQuote
XC-T160CN030-48A6.300 in48 VDC435 W335 RPM1755.99 oz-in13 A2.205 lbsQuote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
