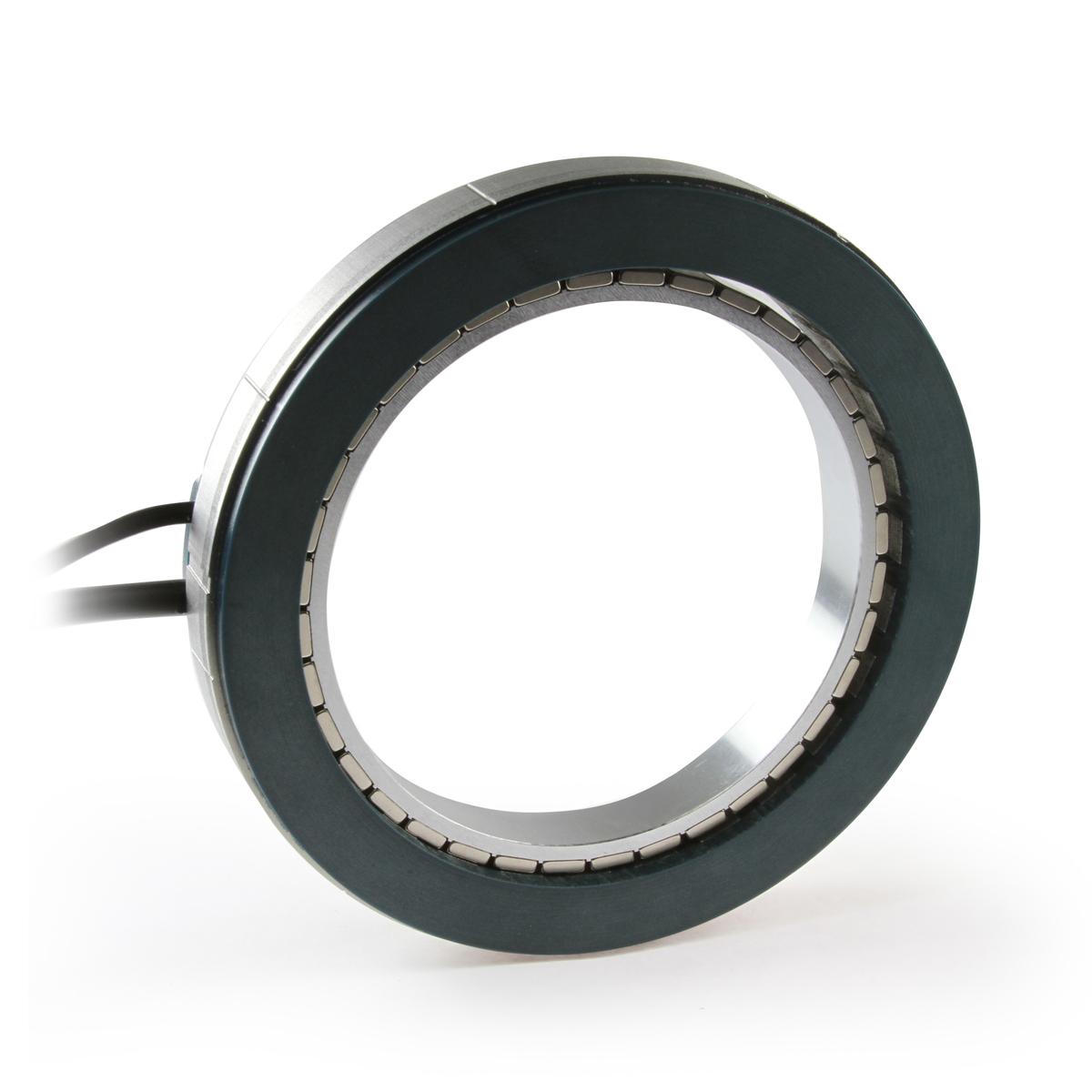

XCT160 SeriesXC-T160CN016-325A160mm Frameless BLDC Motor
XC-T160CN016-325A
XtremeCore Frameless BLDC Torque Motors
XtremeCore Frameless BLDC Torque Motors
Specifications:
- 6.300 in Frame Size
- 0.630 in Stack Length
- 1036.6 oz-in Rated Torque
- 325 VDC Rated Voltage
Features and Benefits:
- High torque to weight ratio
- Compact & lightweight
- Hall sensor and thermistor available
Performance Curves
XC-T160CN016-325A
Torque vs Speed* (+/- 10%)
Torque Units:
Nm
Operating Specifications
- Ambient Temp:25°C
- Winding Temp:°C
- Winding adjustment:0
- System Friction:0N·m
- Heat Sink:TBD
Performance Specifications
- Bus Voltage (Vbus):0VDC
- Max Cont. Torque (Tcont):0oz-in
- Max Cont. Current (Icont):0
- Peak Torque (Tpk):0oz-in
- Peak Current (Ipk):Arms
- Rated Torque (Trtd):0.000Nm
- Rated Power (Prtd):W
- Rated Speed (Nrtd):0RPM
Electrical Specifications
- Rm at Tamb:Ω
- LM:mH
- Back EMF:TBDVpk / kRPM
- Kt at Temp:NaNN·m/Arms
- Km:TBDNm/√W
- Commutation:sine
- NL Comm Freq:0Hz
Mechanical Specifications
- Stack Length:0.630in
- Weight:2.522lbs
- Poles:
Dimensions
| Model | Stack Length in |
|---|---|
| XC-T160CN016-325A | 0.630 in |
Downloads
Frameless BLDC Mounting and Installation Guide (PDF)
DownloadXC-T160CN016-325A 3D Model (STP)
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
