SBL80DC Series - Rapid Prototyping MotorsSBL80D2-01Servo BLDC Motor
Quick Facts

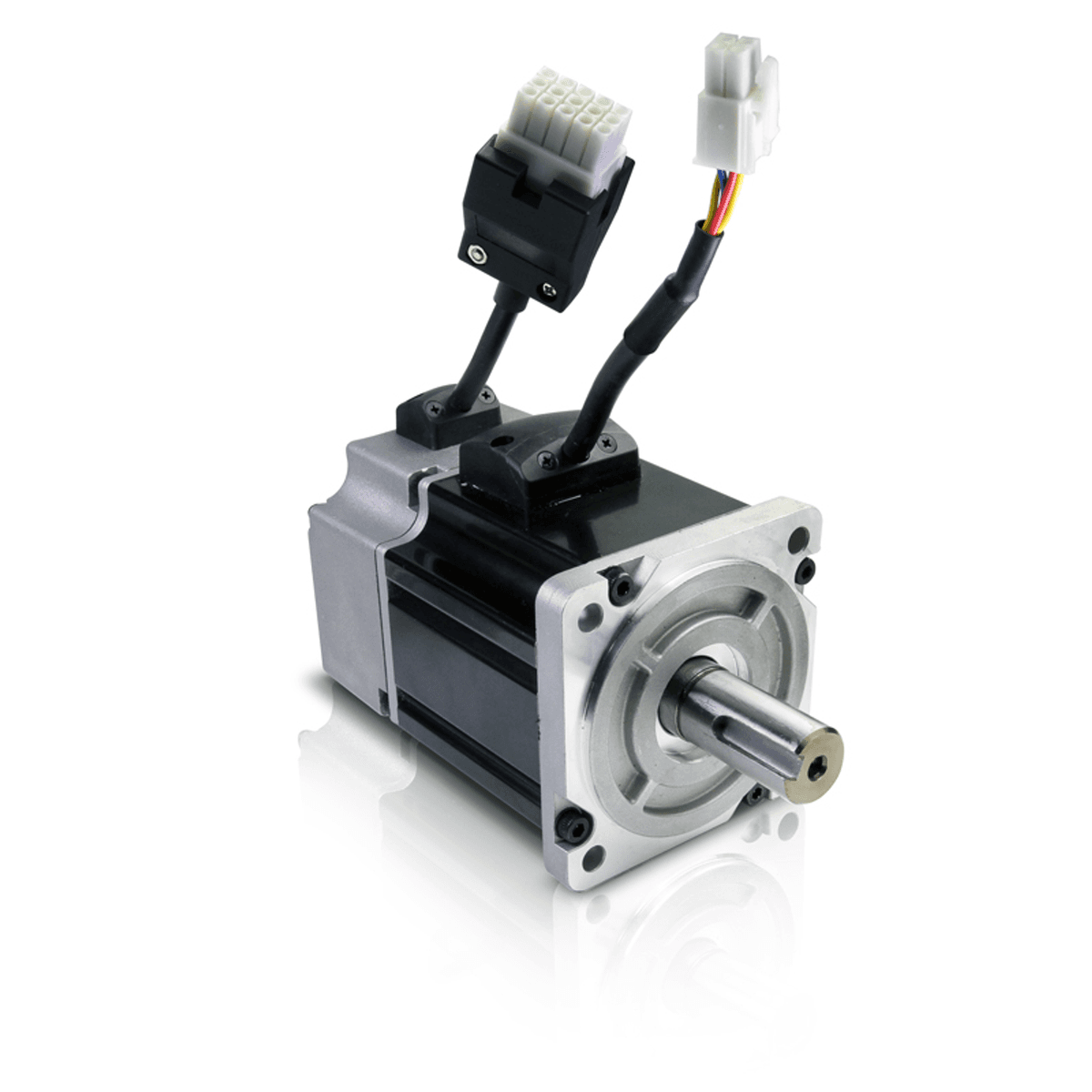

SBL80D2-01 Series Servo BLDC Motors
SBL80D2-01 Series Servo BLDC Motors
Specifications:
- 3.150 in Frame Size
- 10 A Rated Current
- 254.9 oz-in Rated Torque
- 80 VDC Rated Voltage
Motor Specifications
| Frame Size | 3.150 in |
| Rated Voltage | 80 VDC |
| Rated Output Power | 550 W |
| Rated Speed | 3000 RPM |
| Max Mechanical Speed | 5500 RPM |
| Rated Torque | 254.9 oz-in |
| Peak Torque | 651.41 oz-in |
| Rated Current | 10 A |
| Peak Current | 28 A rms |
| Voltage Constant | 11.2 V rms/ K rpm |
| Torque Constant | 24.92369968 oz-in/A rms |
| Winding Resistance | 0.22 Ohm |
| Winding Inductance | 1.25 mH |
| Max. Shaft Load-Radial | 53.952 lbf |
| Weight | 2.205 lbs |
| Brake | NO |
| Rotor Inertia | 3.44 oz-in² |
| Encoder Type | Incremental |
| CPR Count | 2500 Pulse/Rev |
| Motor Length | 4.570 in |
| Rotor Pole Count | 8 pole |
| Connection | MOLEX CONNECTOR |
| Insulation Class | Class B (130 C) |
| IP Rating | IP65 (Shaft Seal must be installed to achieve IP Rating) |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| SBL80D2-01 | 4.570 in |
Torque Curves
- Peak Range
- Continuous Range
Speed
RPM
SBL80DC Series
