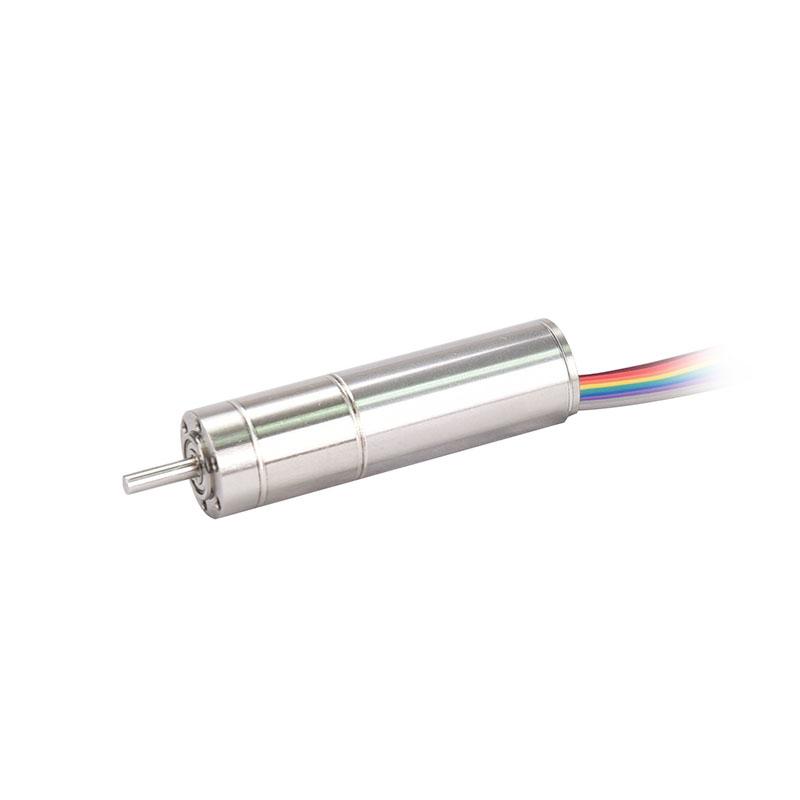

SLU16CH036 Series
SLU16CH036-12-G4
Slotless BLDC Motor

Specifications:
  • 0.630 in Frame Size
  • 0.7 A Rated Current
  • 2.8322 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 2.030 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Gearhead
Weight0.143 lbs
Number of pole2
Number of Phases3
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 3797 RPM
No Load Current200 mA
Nominal Speed3070 RPM
Nominal Torque (Max Cont. Torque)5.2396 oz-in
Nominal Current (Max Cont. Current)1.49 A
Rated Speed3185 RPM
Rated Torque2.8322 oz-in
Rated Current0.7 A
Stall Torque29.0304 oz-in
Stall Current7.27 A
Max. Efficiency72%

Motor Characteristics

Terminal Resistance1.65 ohm
Terminal Inductance0.102 mH
Speed/Torque Gradient 37.6688 RPM/oz-in
Speed Constant1240 RPM/V
Mechanical Time Constant1.56 ms
Rotor Inertia0.003 oz-in²

Motor Mechanical Data

Radial play0.004
Max. Radial Load11.24 lbf
Distance From Flange For Radial Load5 in
Max Force For Press Fit8.992 lbf
Max Speed (Mechanical)7500 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 185.00 °F
Insulation ClassF
Thermal time constant motor525 s
Thermal time constant winding0.72 s

Gearhead Specifications

Type Of GearheadPlanetary Gearhead
Gearhead Reduction Ratio4
Nominal Reduction Ratio3.95
Absolute Reduction Ratio75/19
Number Of Stages1

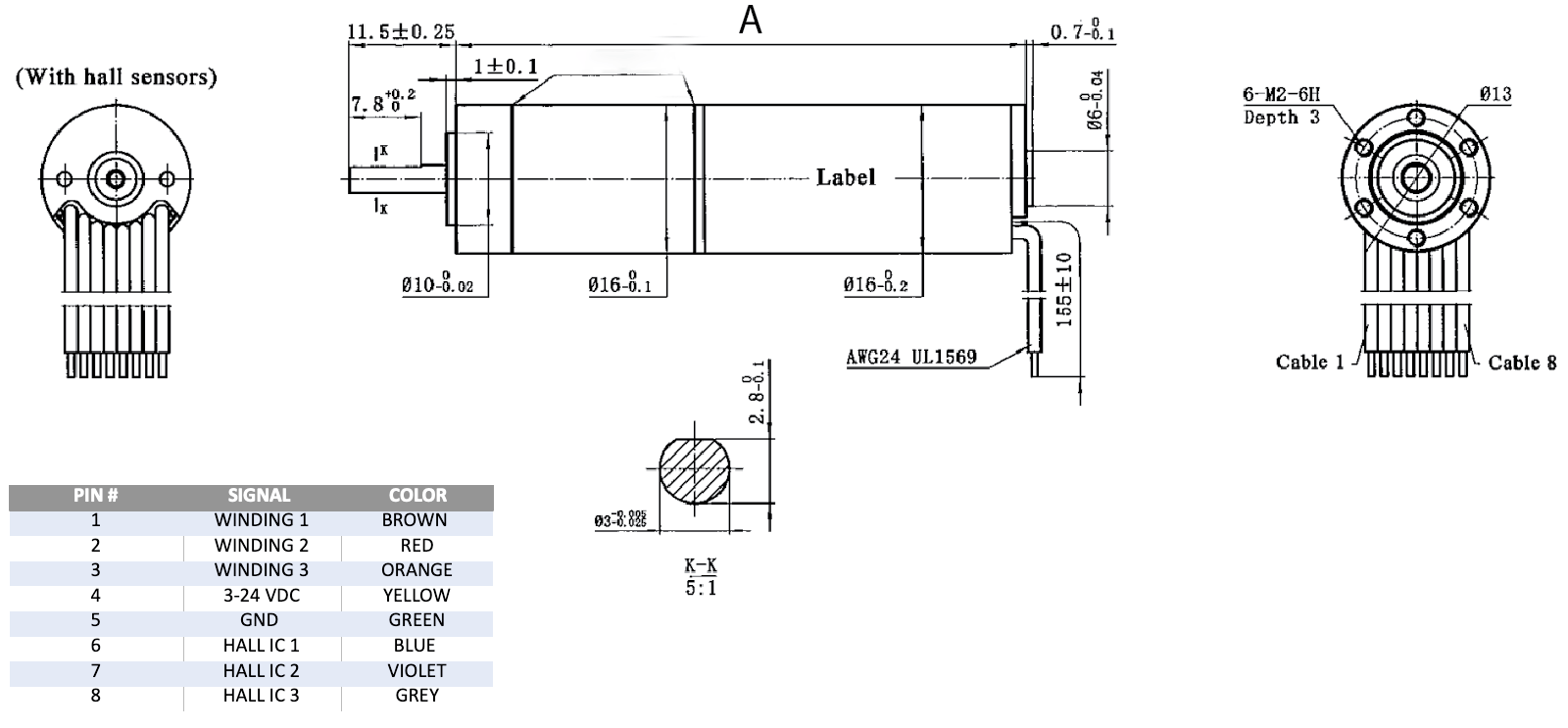

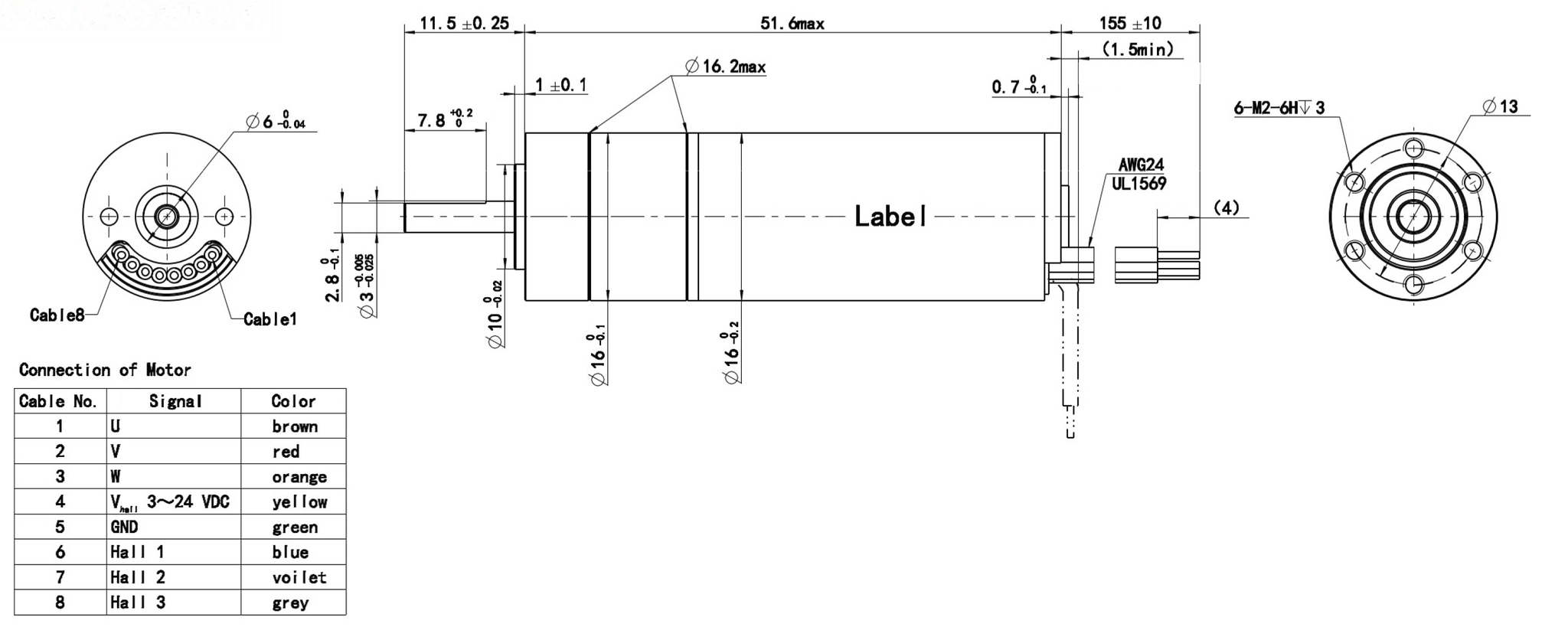

Dimensions

ModelDIM. A (length) in
SLU16CH036-12-G42.030 in

Performance Curve

SLU16CH036 Series

Downloads

SLU16CH036-12-G4 Configured Datasheet (PDF)
